TRIONIC T7 Fuel Control System
›
Fault Diagnosis, Fault Codes
›
DTC P0133: O2S Circuit - Slow Response - Sensor 1
›
Notes
DTC P0133: O2S Circuit - Slow Response - Sensor 1: Notes

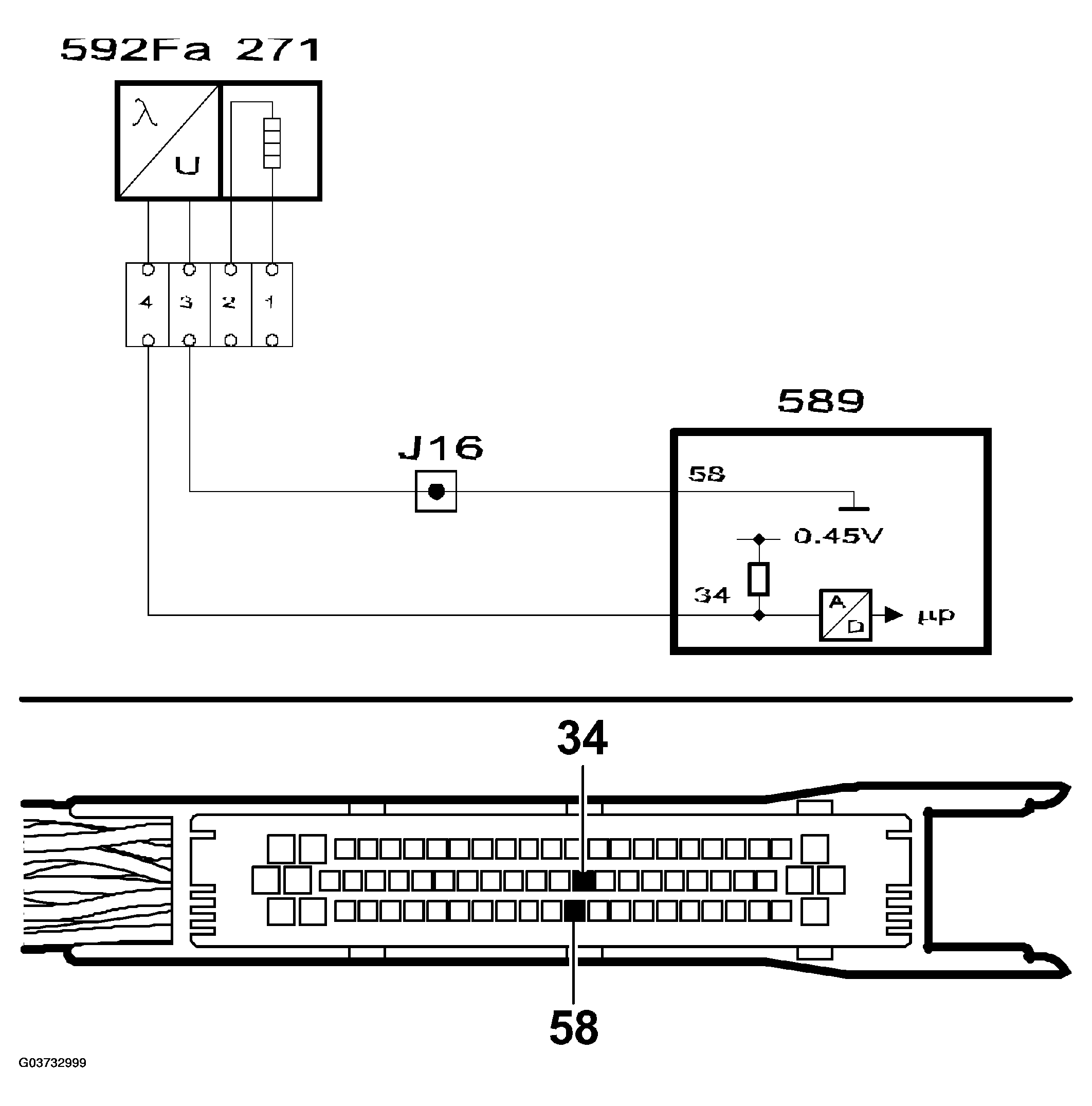

Fig 1: P0133 O2S - Slow Response. Sensor 1 - Circuit Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
