Home › Saab › 2004 › 9-5 Linear, Automatic › Repair and Diagnosis › Engine Performance › TRIONIC T7 Fuel Control System › Fault Diagnosis, Fault Codes › DTC P1142: O2S Heater Circuit Current Too High - Sensor 2 › Notes

DTC P1142: O2S Heater Circuit Current Too High - Sensor 2: Notes

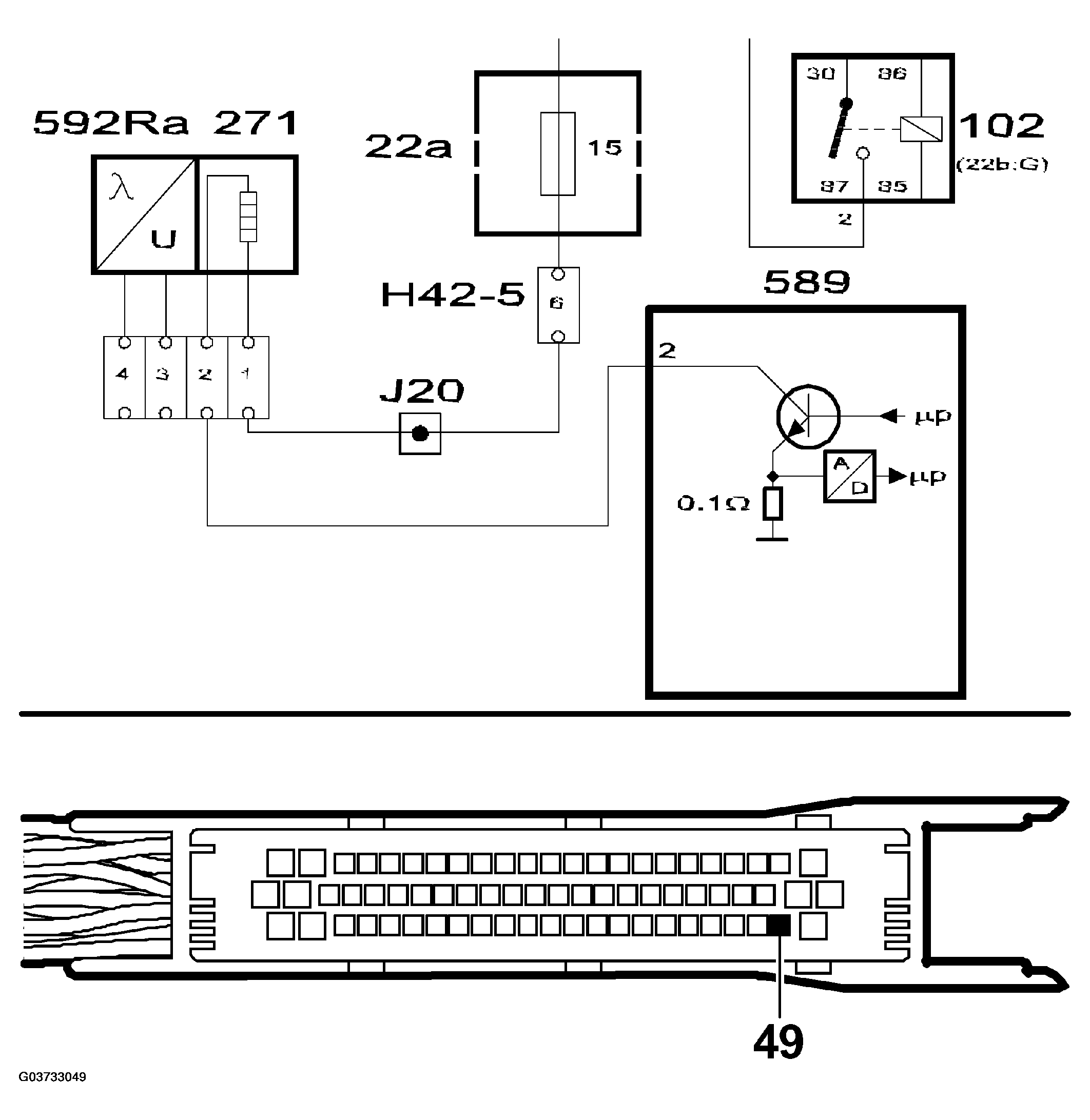

Fig 1: O2S Heater Circuit Current Too High Sensor 2 Circuit Diagram
G03733049Courtesy of SAAB-SCANIA OF AMERICA, INC.
