DTC P1451: EVAP Tank Pressure Sensor - Performance Problem
›
Notes
DTC P1451: EVAP Tank Pressure Sensor - Performance Problem: Notes

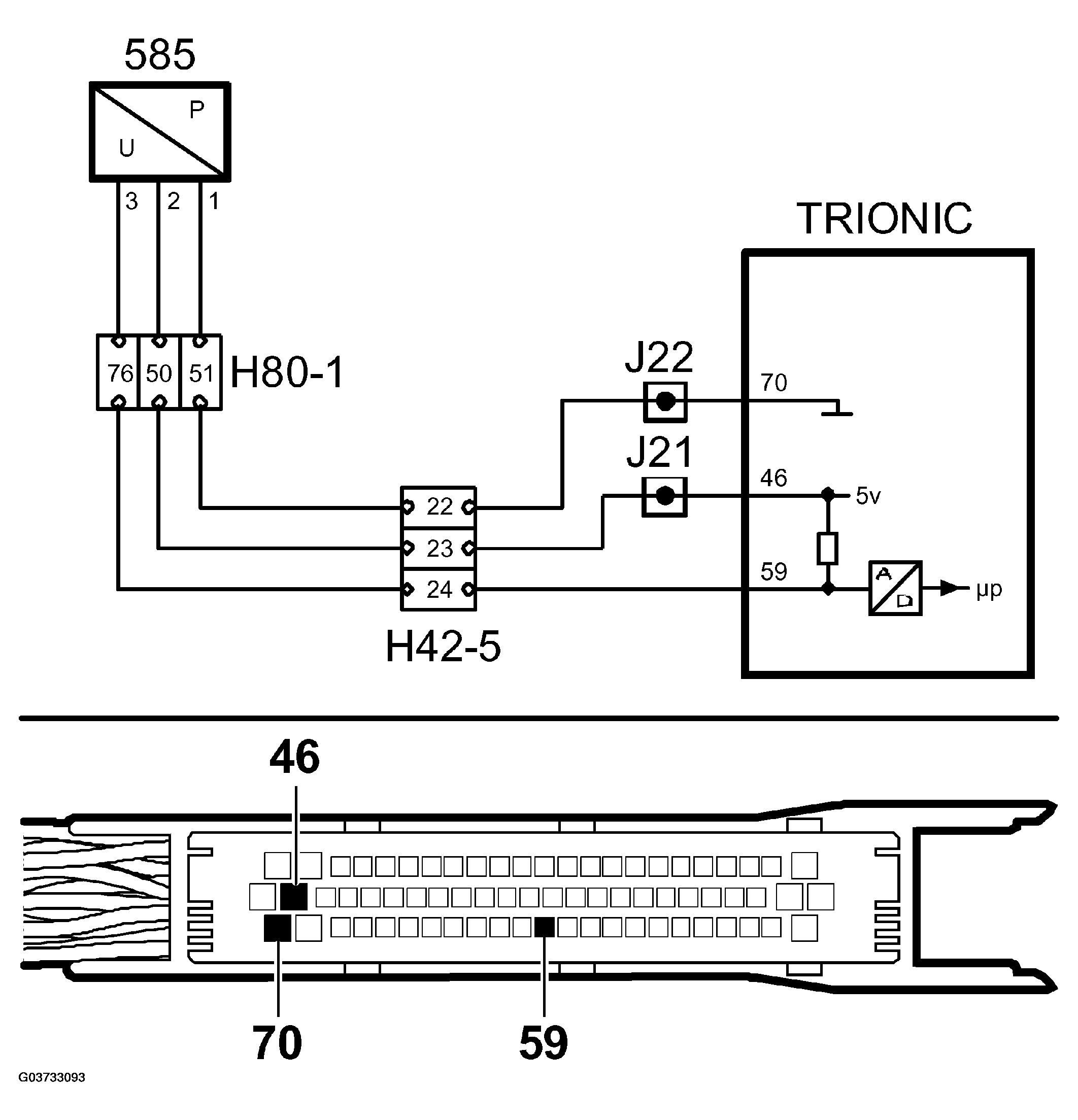

Fig 1: P1451 EVAP Tank Pressure Sensor Circuit Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
