TRIONIC T7 Fuel Control System
›
Fault Diagnosis, Fault Codes
›
DTC P1491: EVAP Tank Pressure Sensor Performance Problem & Fuel Level Sensor Malfunction
›
Notes
DTC P1491: EVAP Tank Pressure Sensor Performance Problem & Fuel Level Sensor Malfunction: Notes

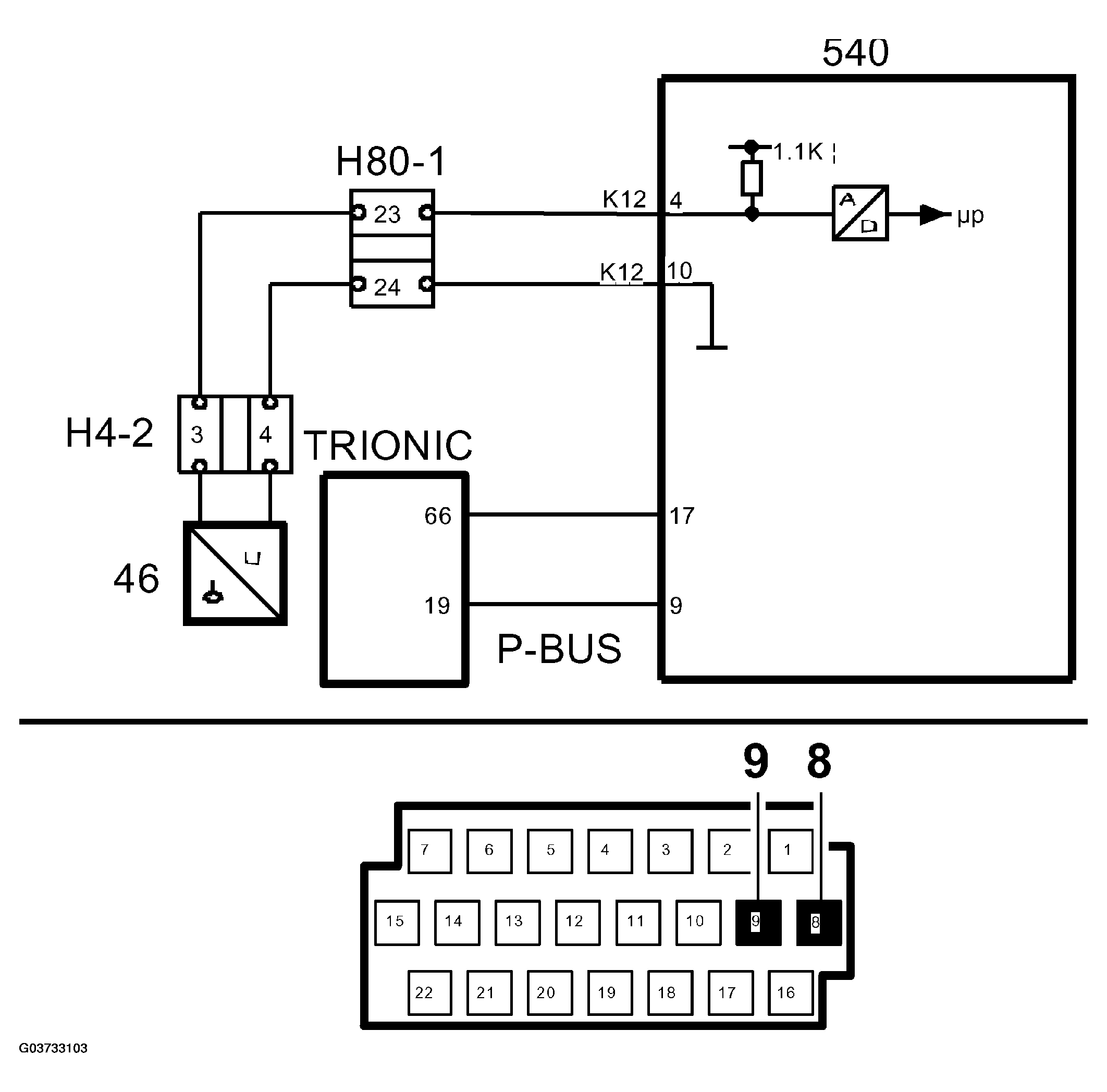

Fig 1: P1491 EVAP Tank Pressure Sensor Circuit Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
