DTC P1532: Pedal Position Sensor 1 & 2 Circuit - Control Module Inputs Shorted To Each Other
›
Notes
DTC P1532: Pedal Position Sensor 1 & 2 Circuit - Control Module Inputs Shorted To Each Other: Notes

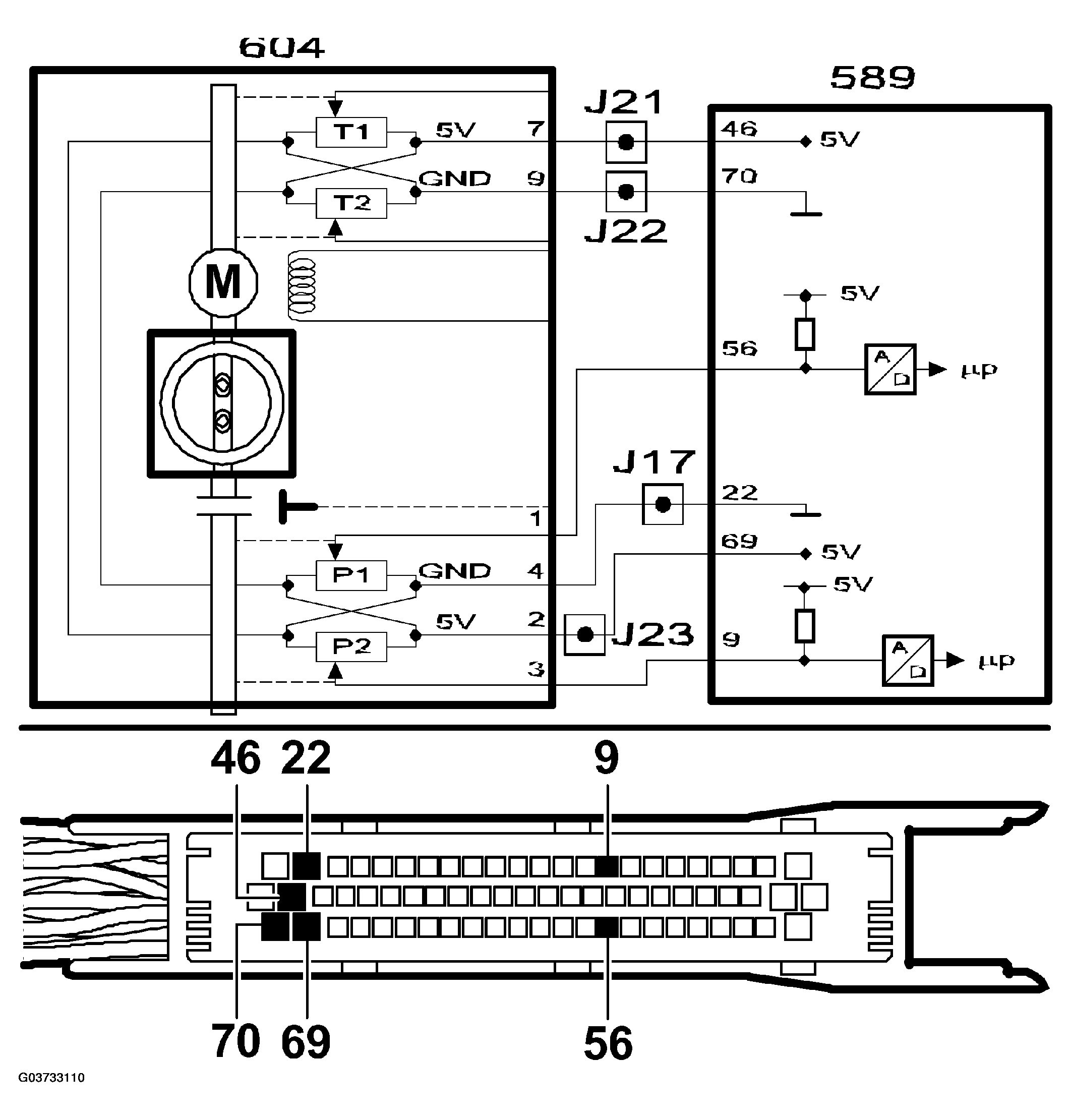

Fig 1: P1532 Pedal Position Sensor 1 And 2 Circuit Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
