Brake pedal switch (134)
Brake pedal switch (134)

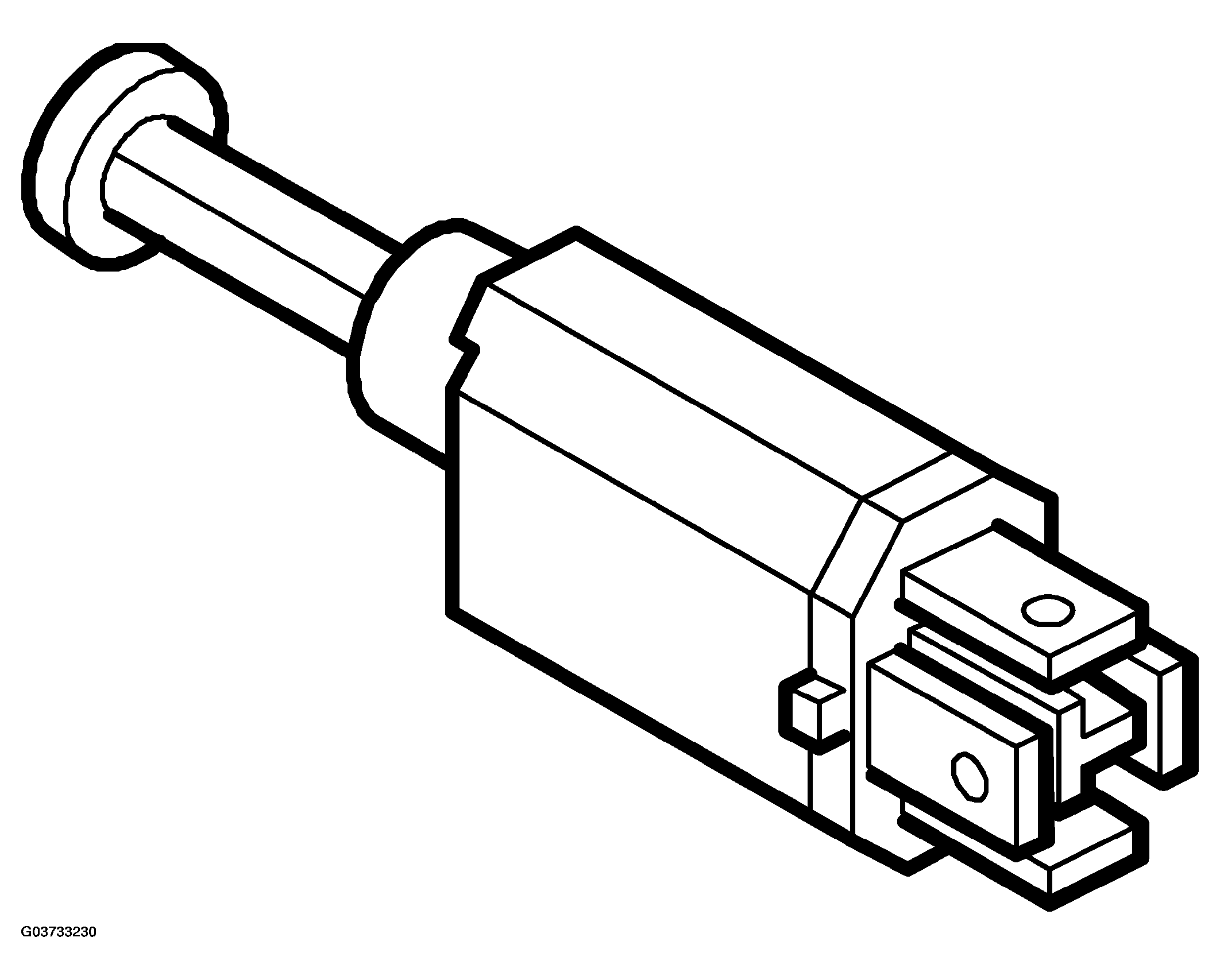

Fig 1: Identifying Brake Pedal Switch
Courtesy of SAAB-SCANIA OF AMERICA, INC.
BRAKE PEDAL SWITCH DESCRIPTION
Location
On pedal bracket
Characteristics, pins 1-2
Normally closed when pedal released
