Limp-home solenoid (607)

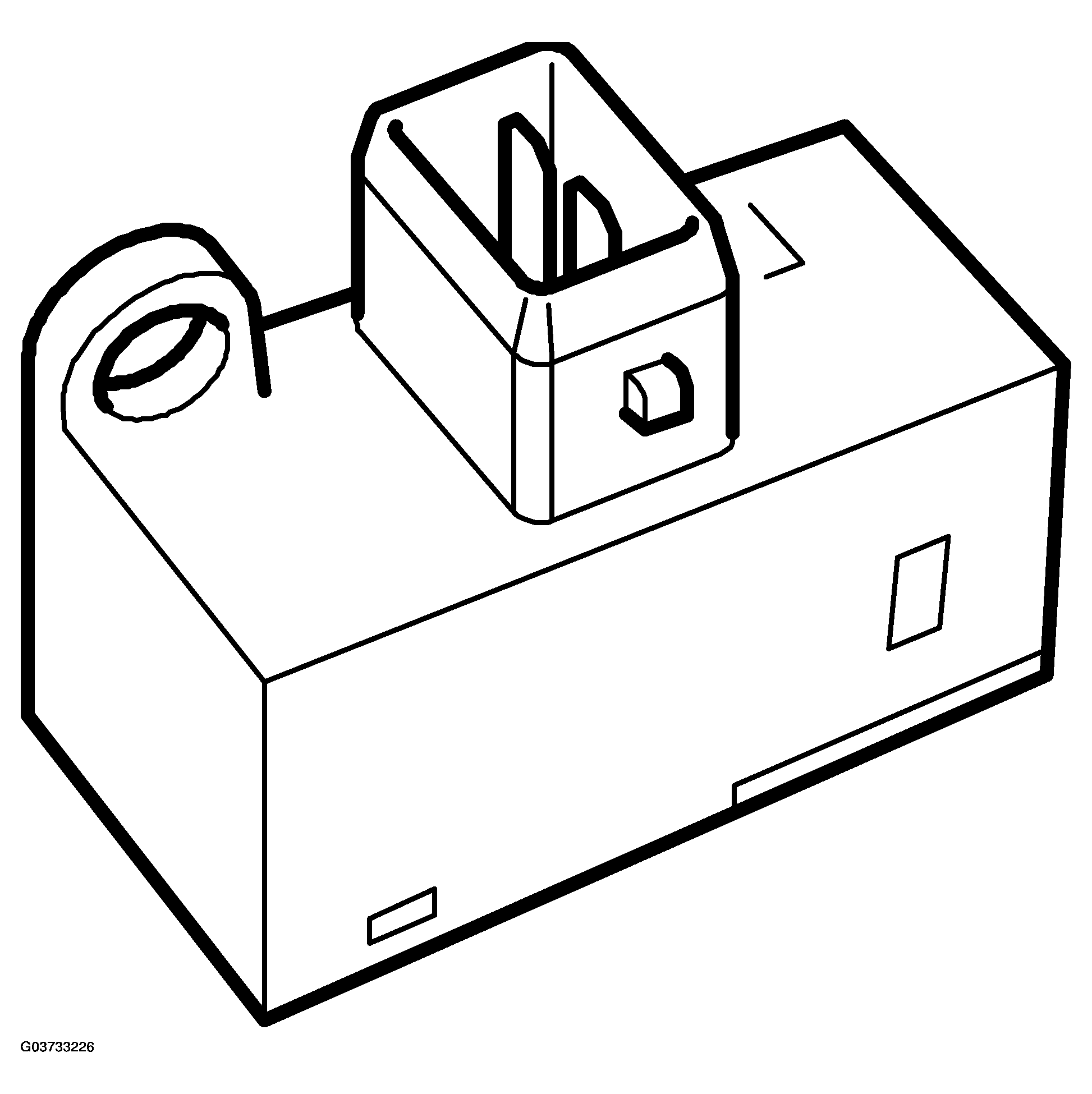

Fig 1: Identifying Limp-Home Solenoid
G03733226Courtesy of SAAB-SCANIA OF AMERICA, INC.
LIMP-HOME SOLENOID DESCRIPTION

Location   On throttle body
Characteristics   Zero current sprung
Resistance at 20°C (68°F) Ohm 1.7+/-0.2
