Relay, fuel pump (102)

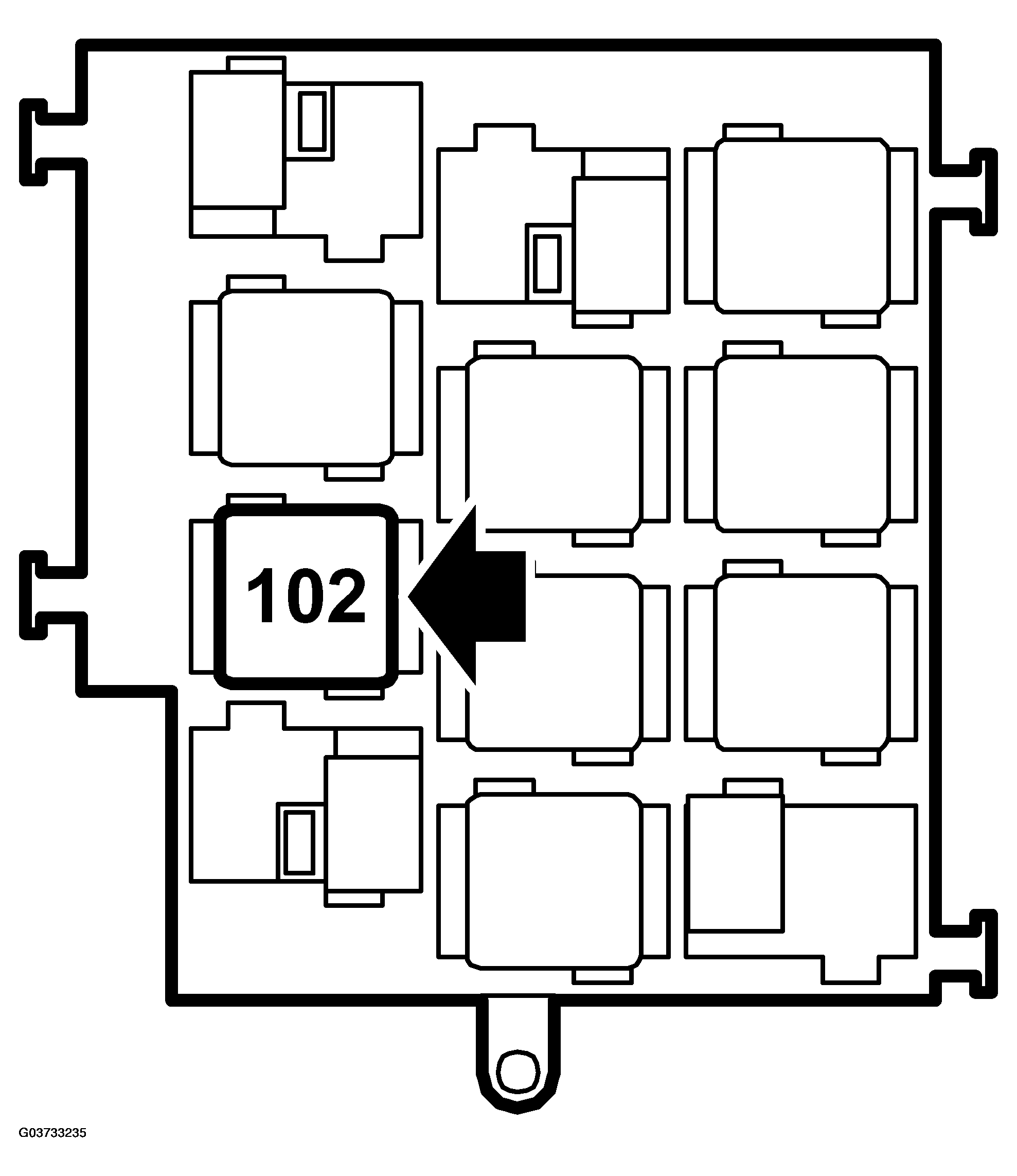

Fig 1: Identifying Relay - Fuel Pump

Courtesy of SAAB-SCANIA OF AMERICA, INC.

RELAY - FUEL PUMP DESCRIPTION

Location		On main relay board in dashboard
Resistance, coil at 20°C (68°F)	Ohm	85+/-5
Nominal control voltage	V	12
Rated current	A	30
