Main relay
When the ignition is ON, the main relay is operated.

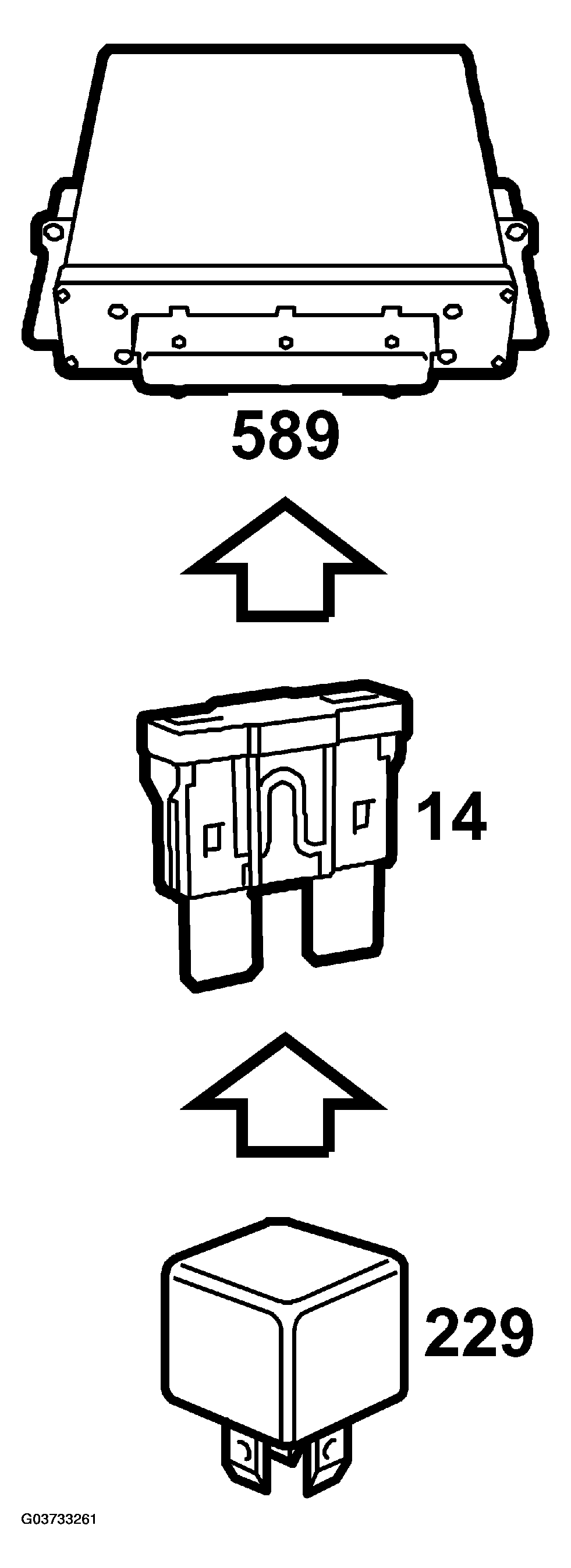

Control module pin 1 is supplied with current from pin 87 of the main relay via fuse 14. This connection is used internally to supply the throttle motor with current.
When the ignition is ON, the main relay is operated.
Control module pin 1 is supplied with current from pin 87 of the main relay via fuse 14. This connection is used internally to supply the throttle motor with current.
