TRIONIC T7 Fuel Control System
›
Technical Description
›
Ignition discharge module
›
Notes
Ignition discharge module: Notes

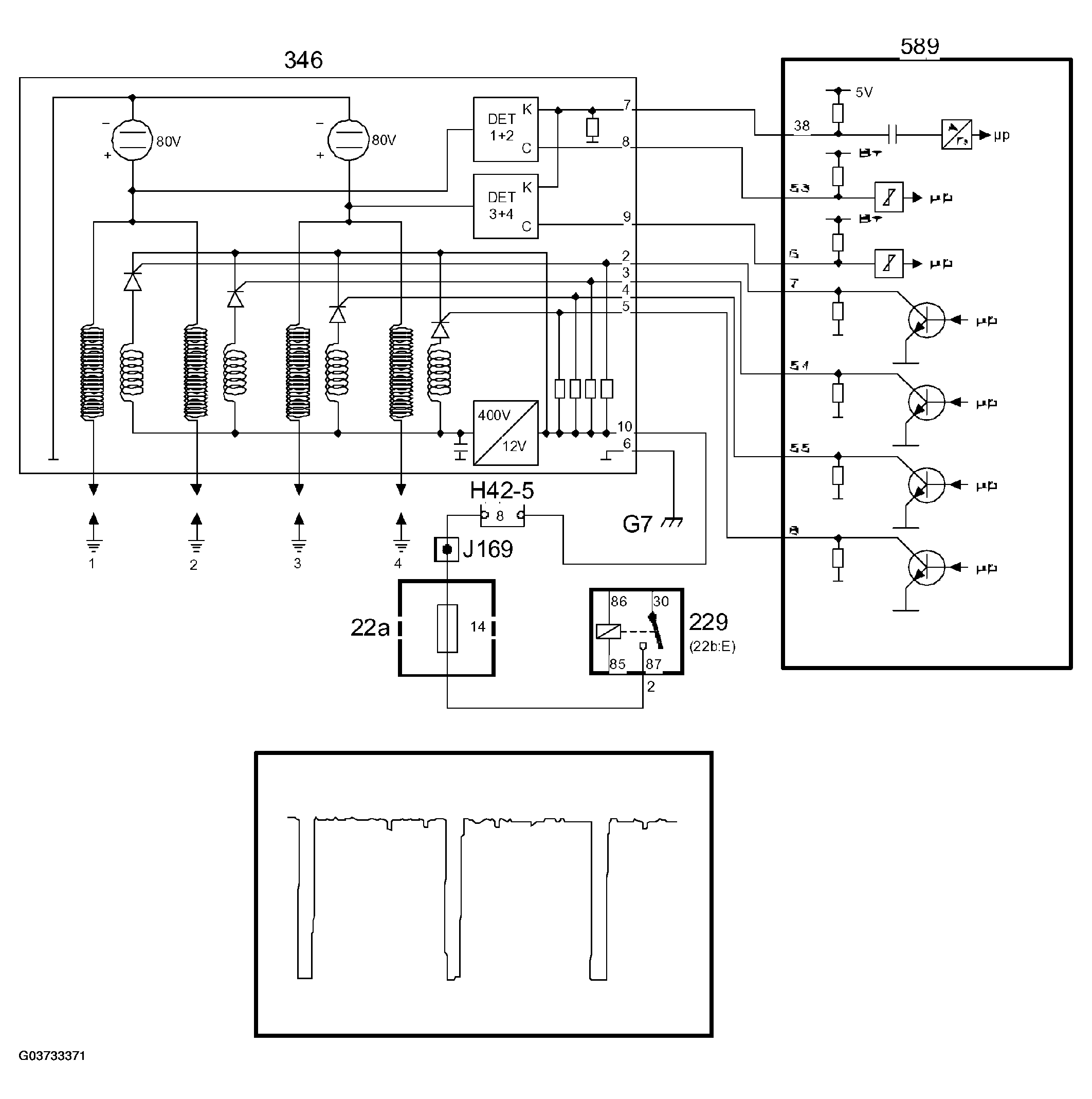

Fig 1: Ignition Discharge Module Circuit Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
