To remove

  1. Place the car on a hoist and turn the steering wheel full left lock.
  2. Raise the car and put a receptacle underneath to collect any fluid spill.
  3. Remove the front left wheel.
  4. Remove the left outer track rod end from the steering swivel member. Use 87 91 287 puller.

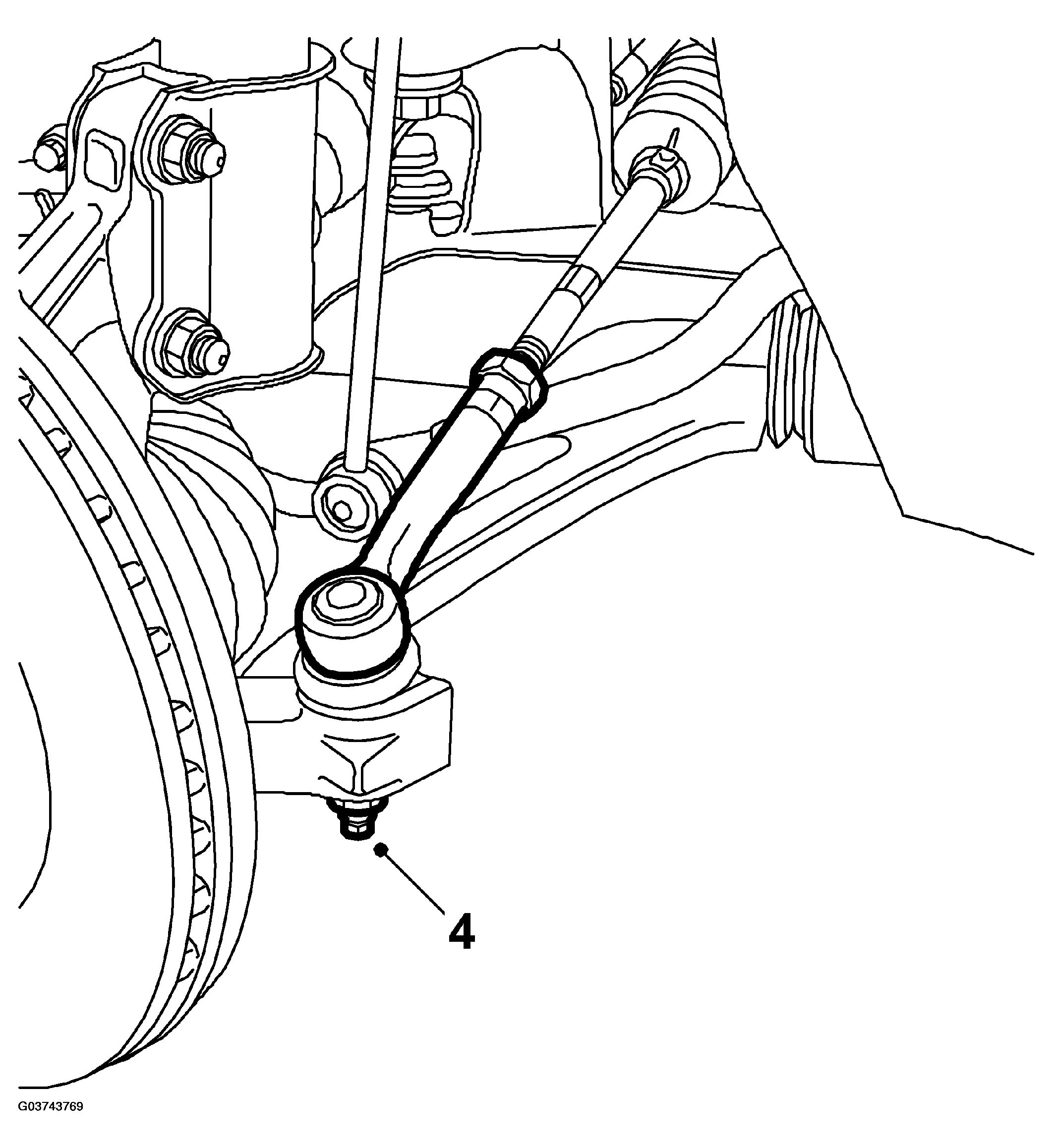

    Fig 1: Illustration For Step 4
    G03743769Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Clean thoroughly around the transmission servo housing and on the subframe.
  6. Press in the servo cover by applying a 1/2" drawbar handle with socket against the cover.

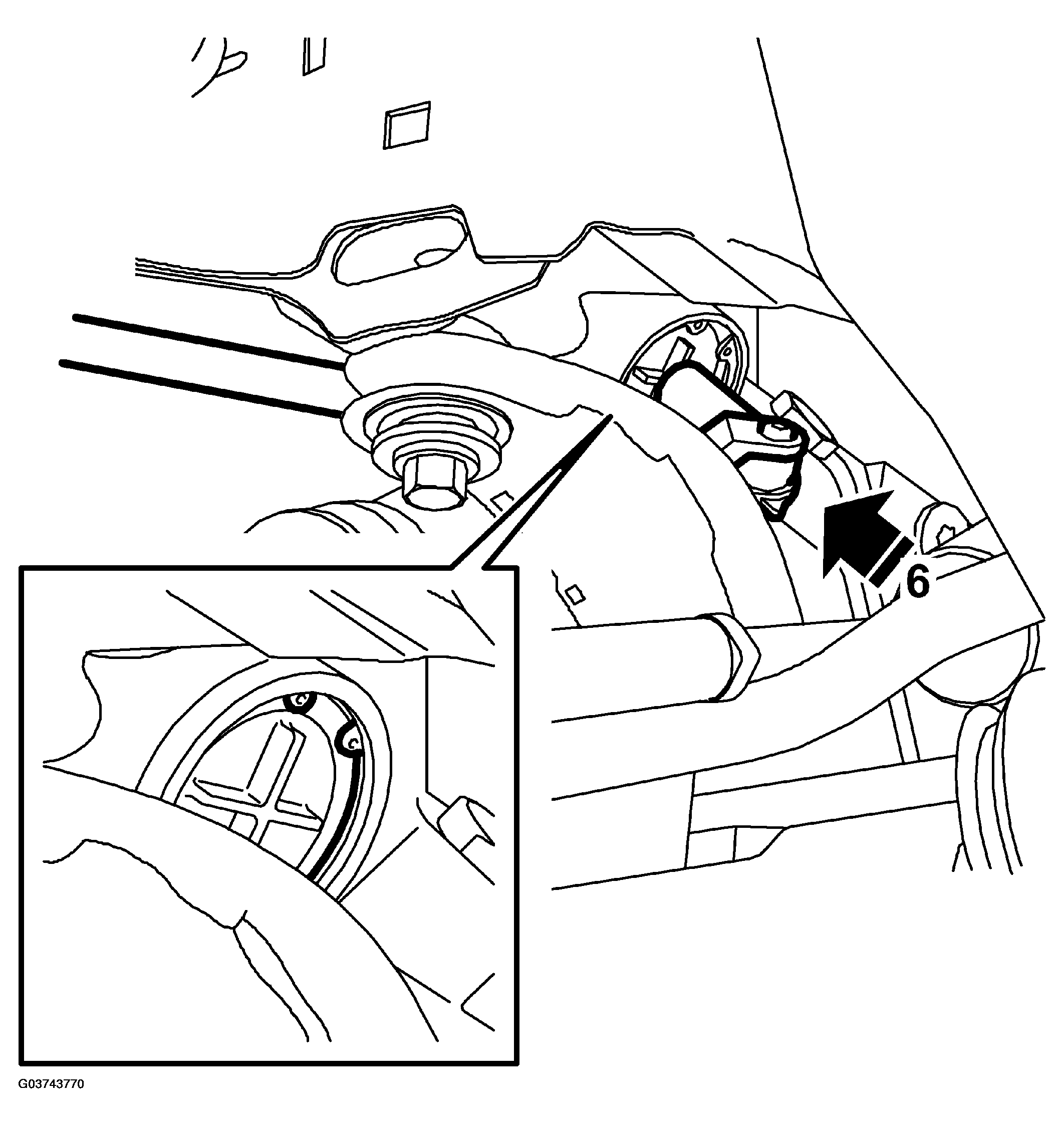

    Fig 2: Illustration For Step 6
    G03743770Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Remove the circlip.

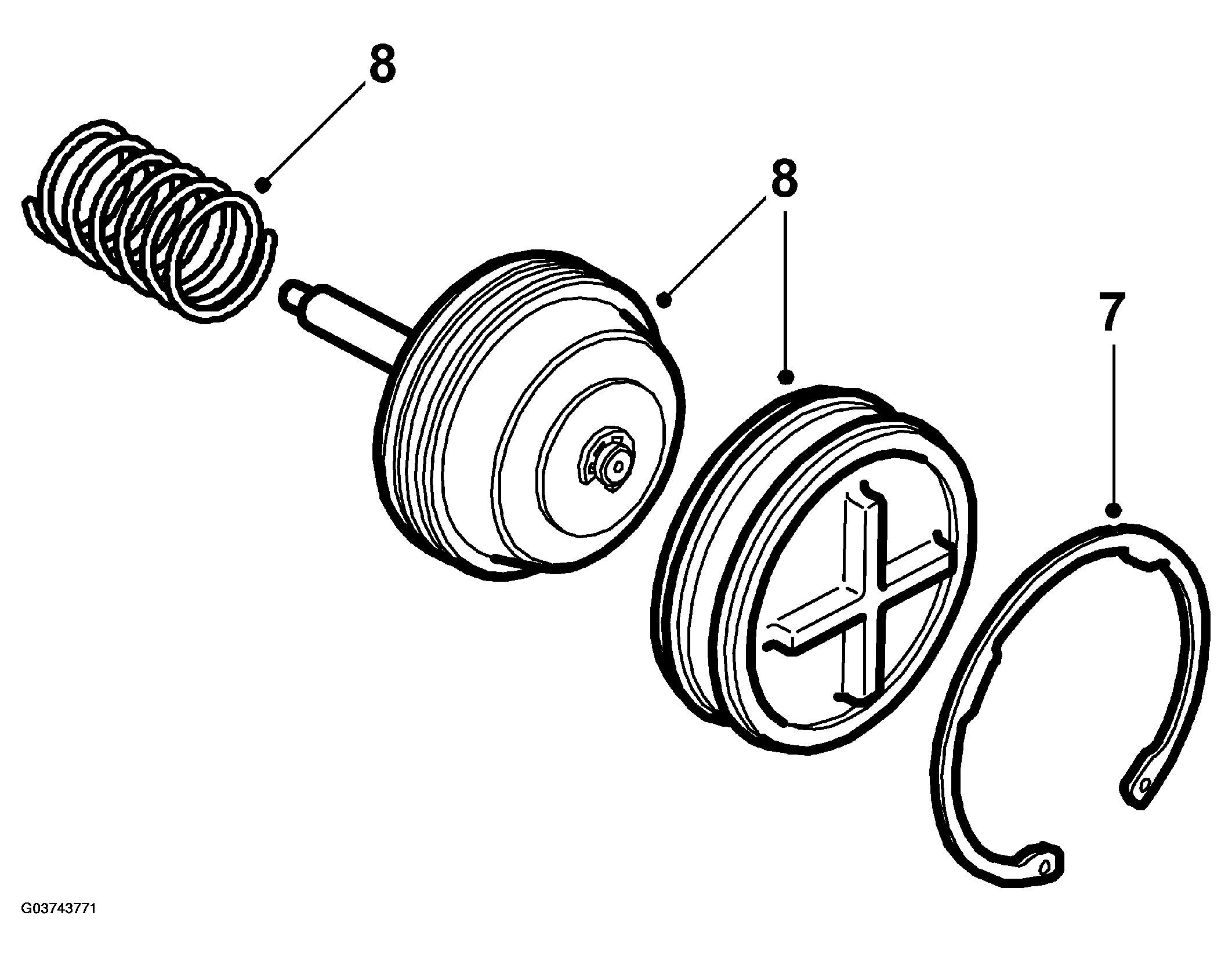

    Fig 3: Illustration For Steps 7-8
    G03743771Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Remove the cover, piston and spring from the transmission servo housing.
