Torque converter seal: Fitting

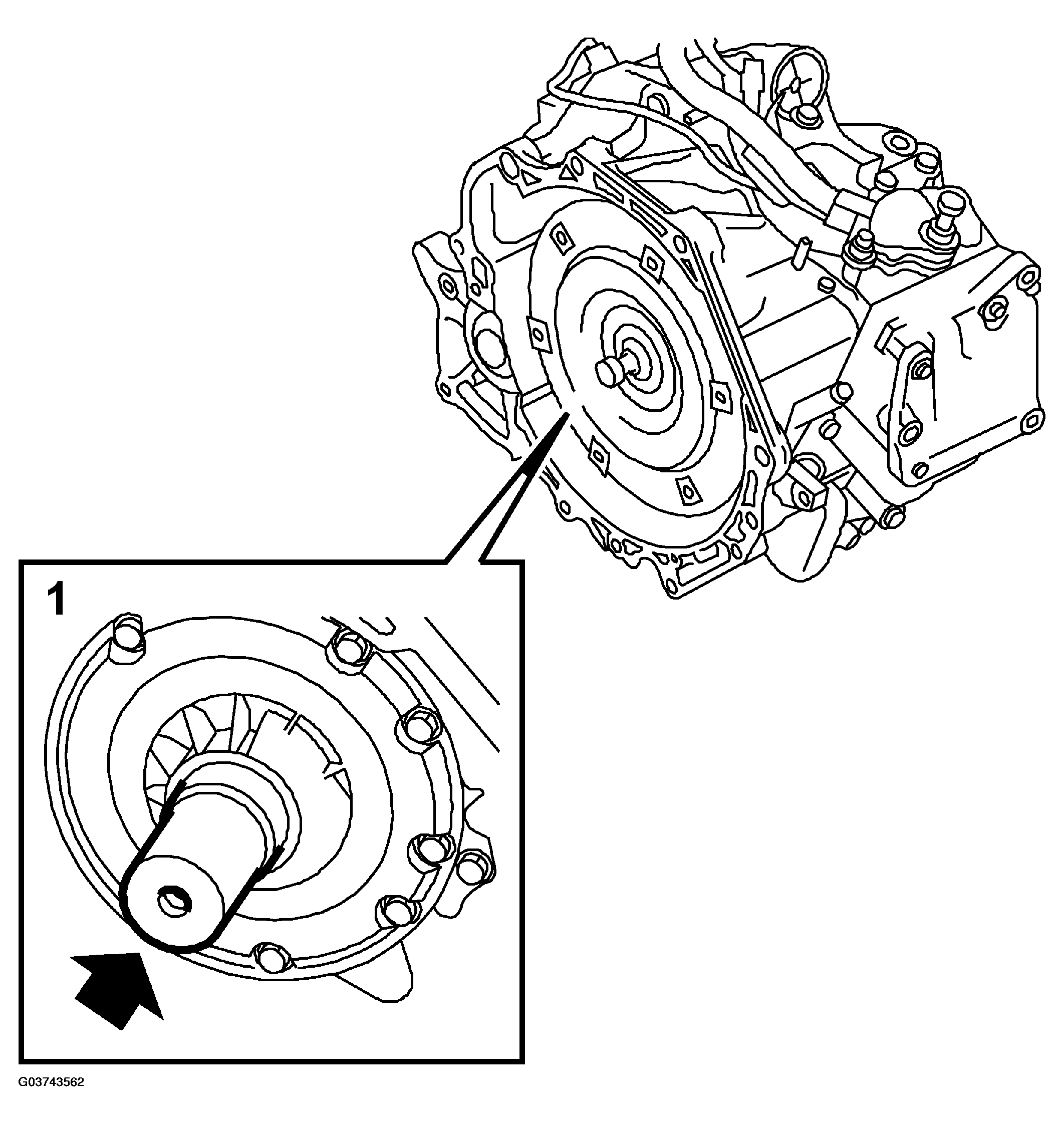

Fig 1: Illustration For Step 1

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fit the new seal using SLEEVE, DRIVER SHAFT BEARING 87 91 311.
Position the torque converter.
Check that the torque converter is correctly positioned by placing a steel rule on the torque converter housing's mating surface and measuring the distance between the mating surface and the drive plate's contact surface on the torque converter.
The distance should be: min. 9 mm.
Fit the transmission, See COMPLETE TRANSMISSION .
