Valve housing: Fitting

IMPORTANT: Automatic transmission up to and including 02GV 706486 :
The wiring harness must also be changed when changing the valve housing so it suits the new one.

Lift the valve housing into position.
NOTE: Carefully move the selector lever's arm into place and fit the valve housing on the transmission.

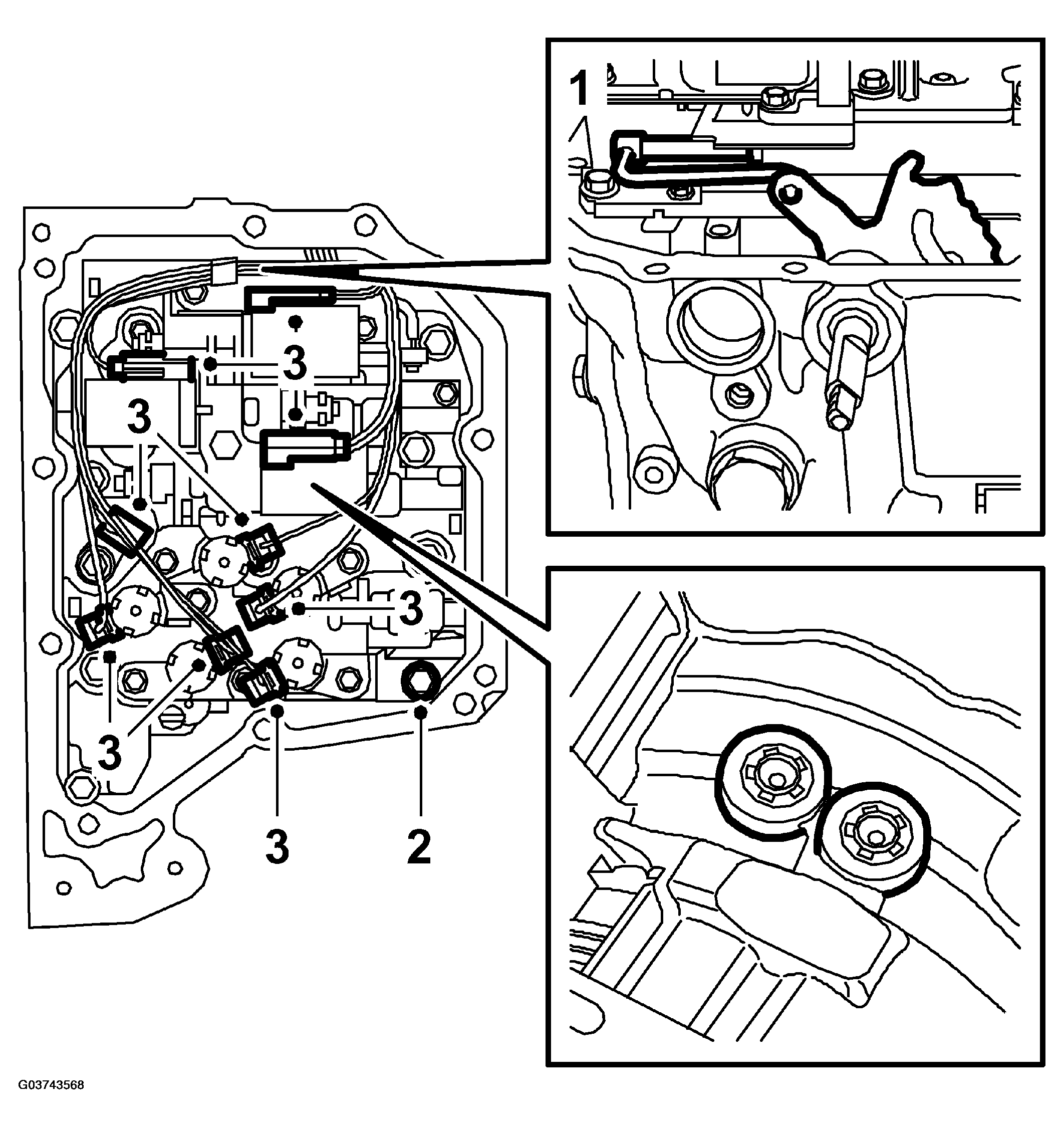

Fig 1: Illustration For Steps 1-3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the valve housing.
Tightening torque 7 Nm (5 lbf ft)

NOTE: The bolts are different lengths.
Plug in the solenoids and fit the temperature sensor.
Fit the VALVE HOUSING COVER .
