Grounding point G41S: Notes

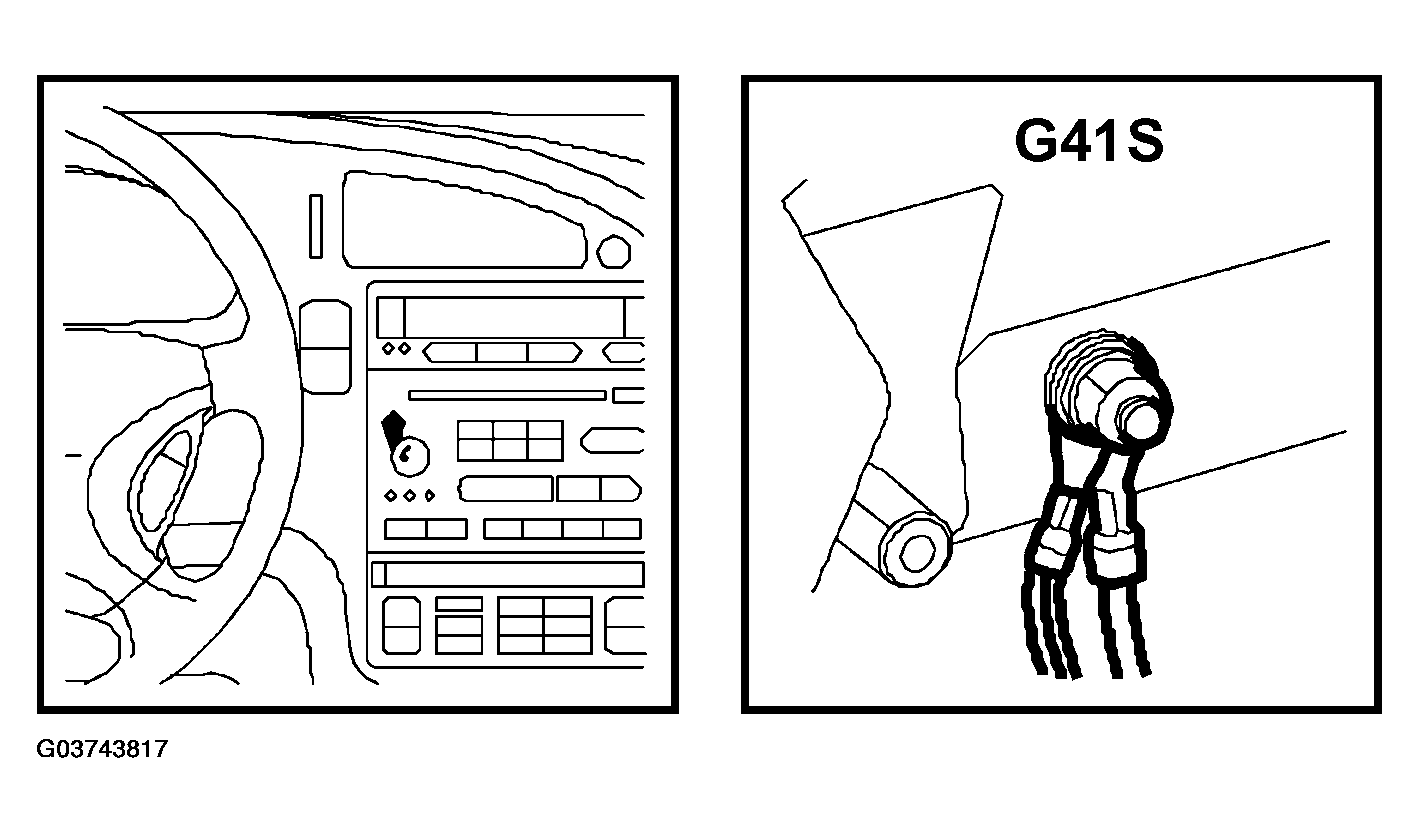

Fig 1: Identifying Grounding Point G41S
G03743817Courtesy of SAAB-SCANIA OF AMERICA, INC.

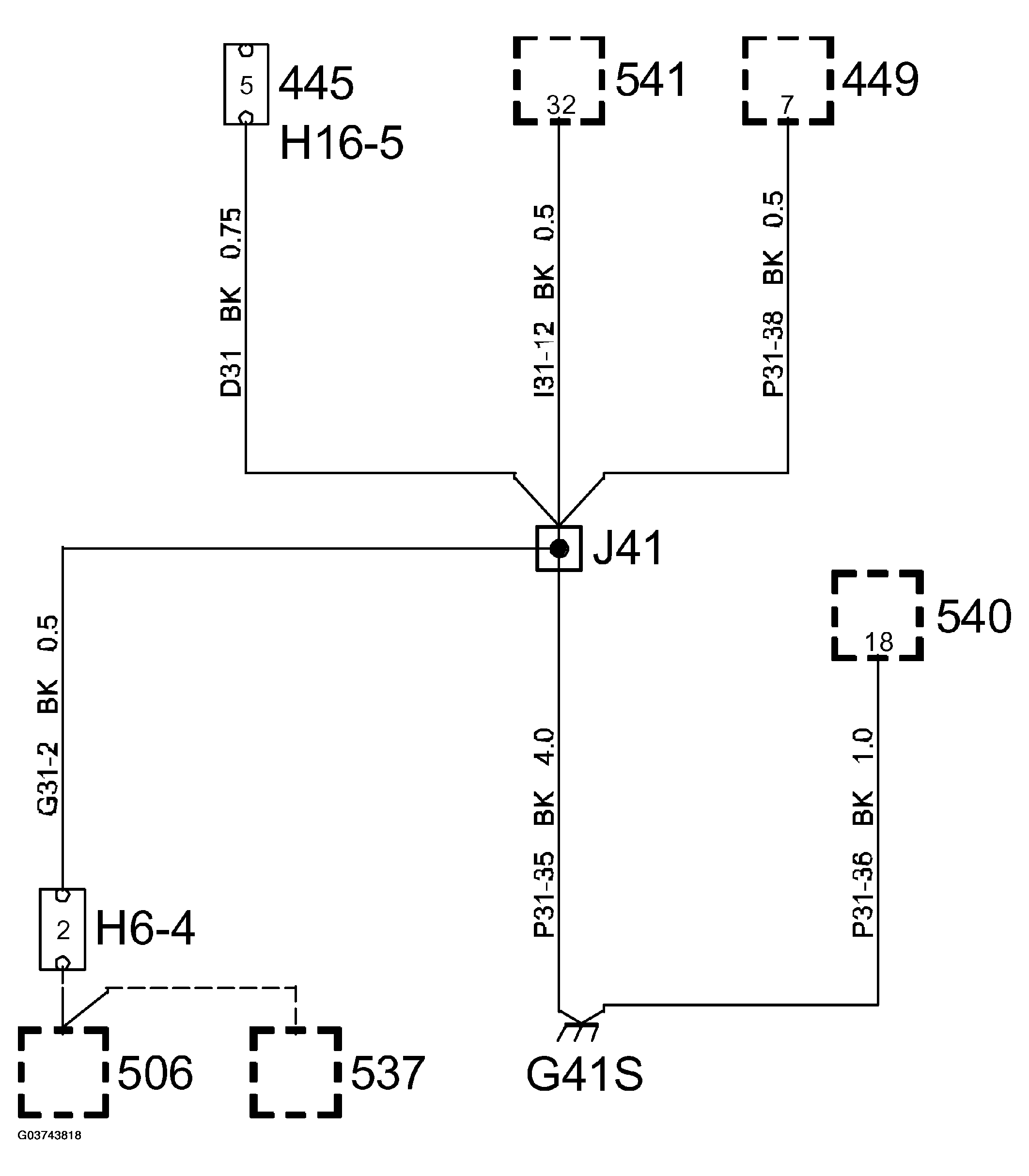

Fig 2: Grounding Point G41S Wiring Diagram
G03743818Courtesy of SAAB-SCANIA OF AMERICA, INC.
