Control module ground: Diagnostics

If there is no ground connection, communication with the TCM will not be possible. No diagnostic trouble code is generated.

TCM in Limp-Home mode.

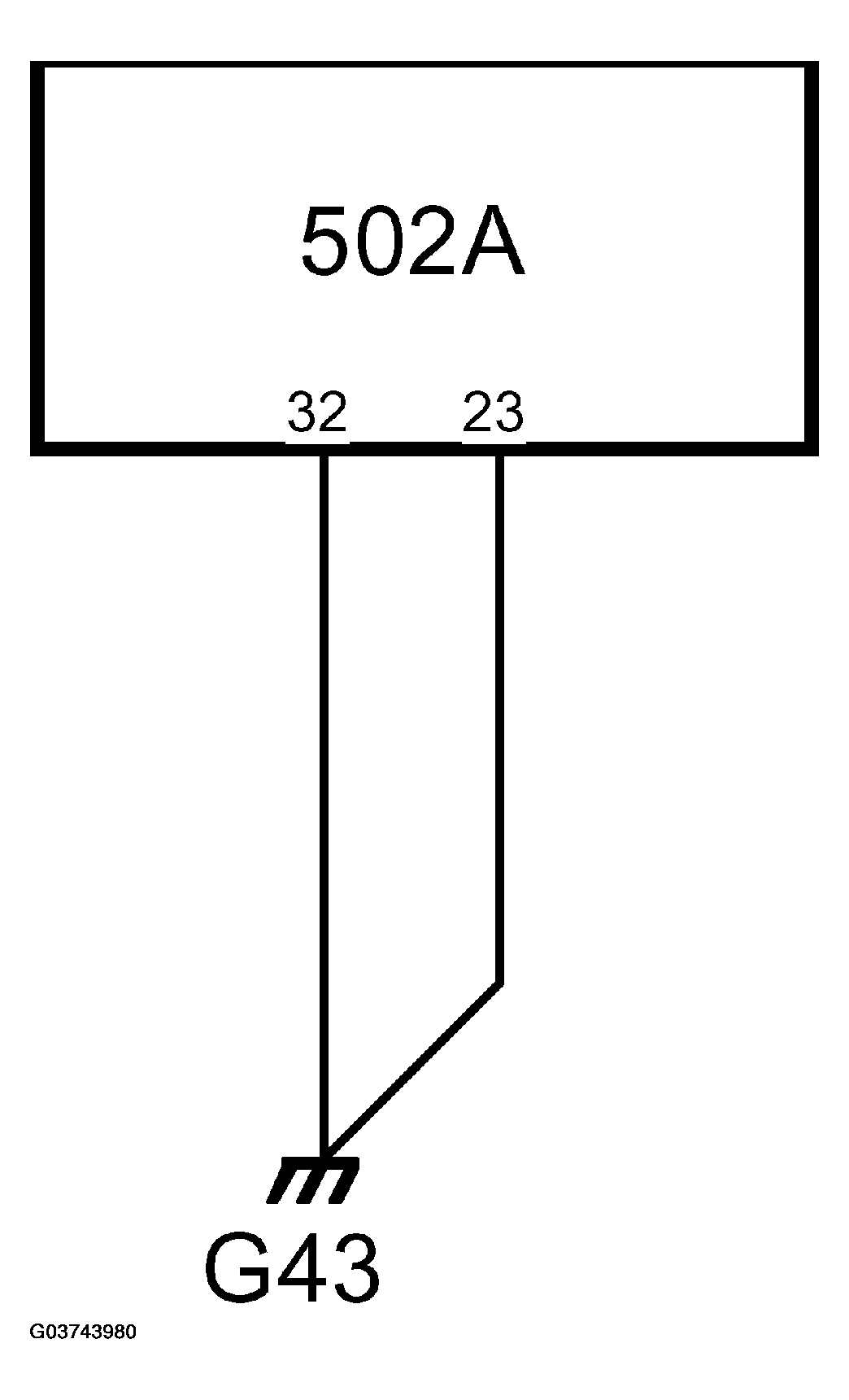

Fig 1: Identifying Connection Diagram
G03743980Courtesy of SAAB-SCANIA OF AMERICA, INC.
