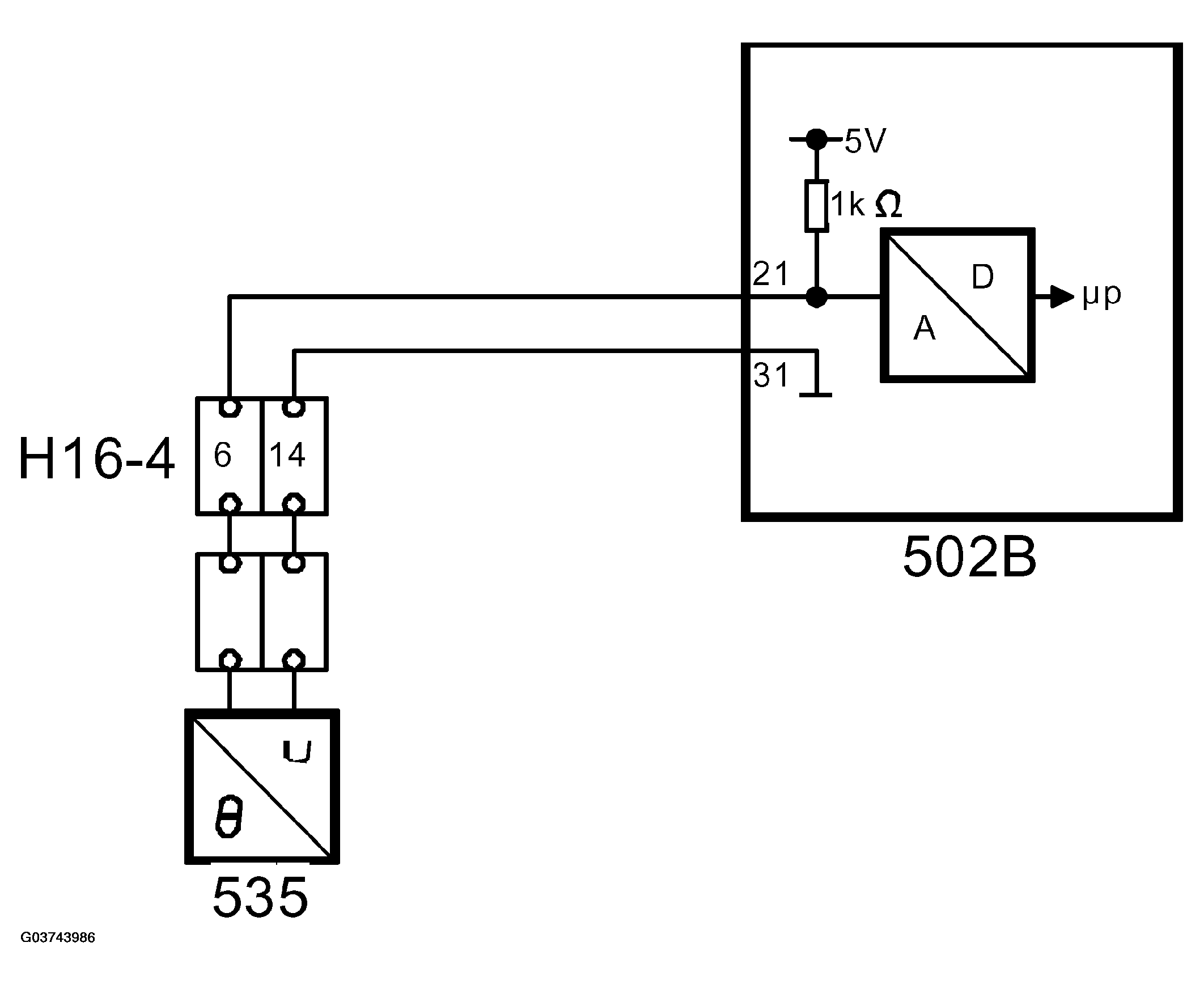

Transmission fluid temperature sensor: Diagnostics
In the event of a fault in the temperature sensor, three different diagnostic trouble codes may be generated:
- If the temperature increases or decreases too slowly during the first 15 minutes of driving, diagnostic trouble code P0711 will be generated.
- In the event of short to B-, diagnostic trouble code P0712 will be generated.
- In the event of short to B+ or an open circuit, diagnostic trouble code P0713 will be generated.
TRANSMISSION FLUID TEMPERATURE SENSOR SPECIFICATION
| Oil temperature °C | Resistance O +/-10% | Voltage (TCM) V +/-10% |
|---|---|---|
| -10 | 5000 | 4.6 |
| 0 | 2000 | 4.1 |
| 20 | 900 | 3.4 |
| 40 | 400 | 2.4 |
| 80 | 125 | 1.1 |
| 100 | 75 | 0.7 |
| 150 | 27 | 0,3 |
