WINTER button: Fitting

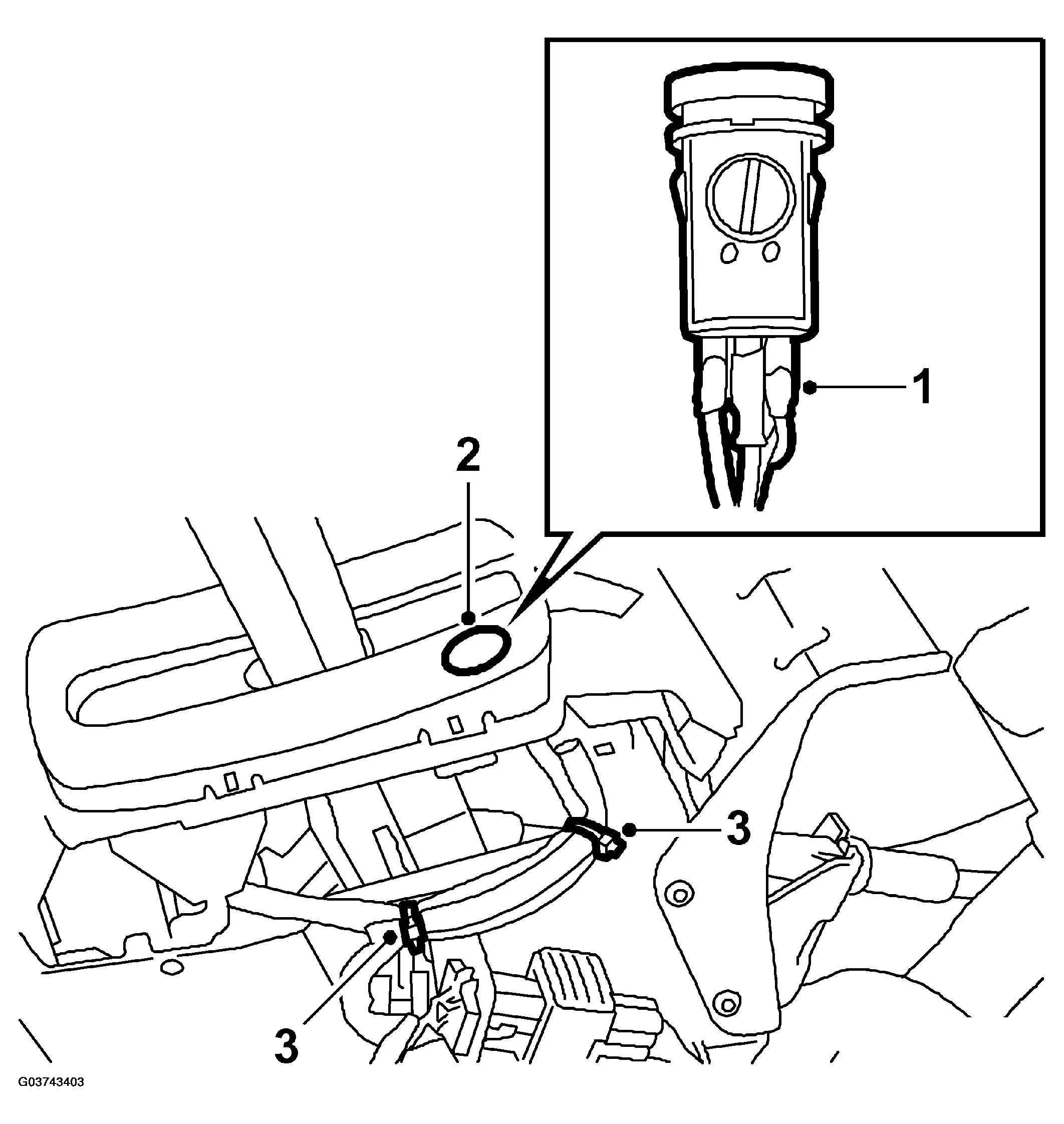

Fig 1: Illustration For Step 1-3

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fasten the leads by soldering and enter the protective casing over the soldered joint.
Press the WINTER-button onto the indication display.
Fit a new cable tie through the hole in the selector lever housing and round the leads.
Fit the upper part of the center console, see INTERIOR EQUIPMENT .
Fit the edging around the indication display.
