To remove

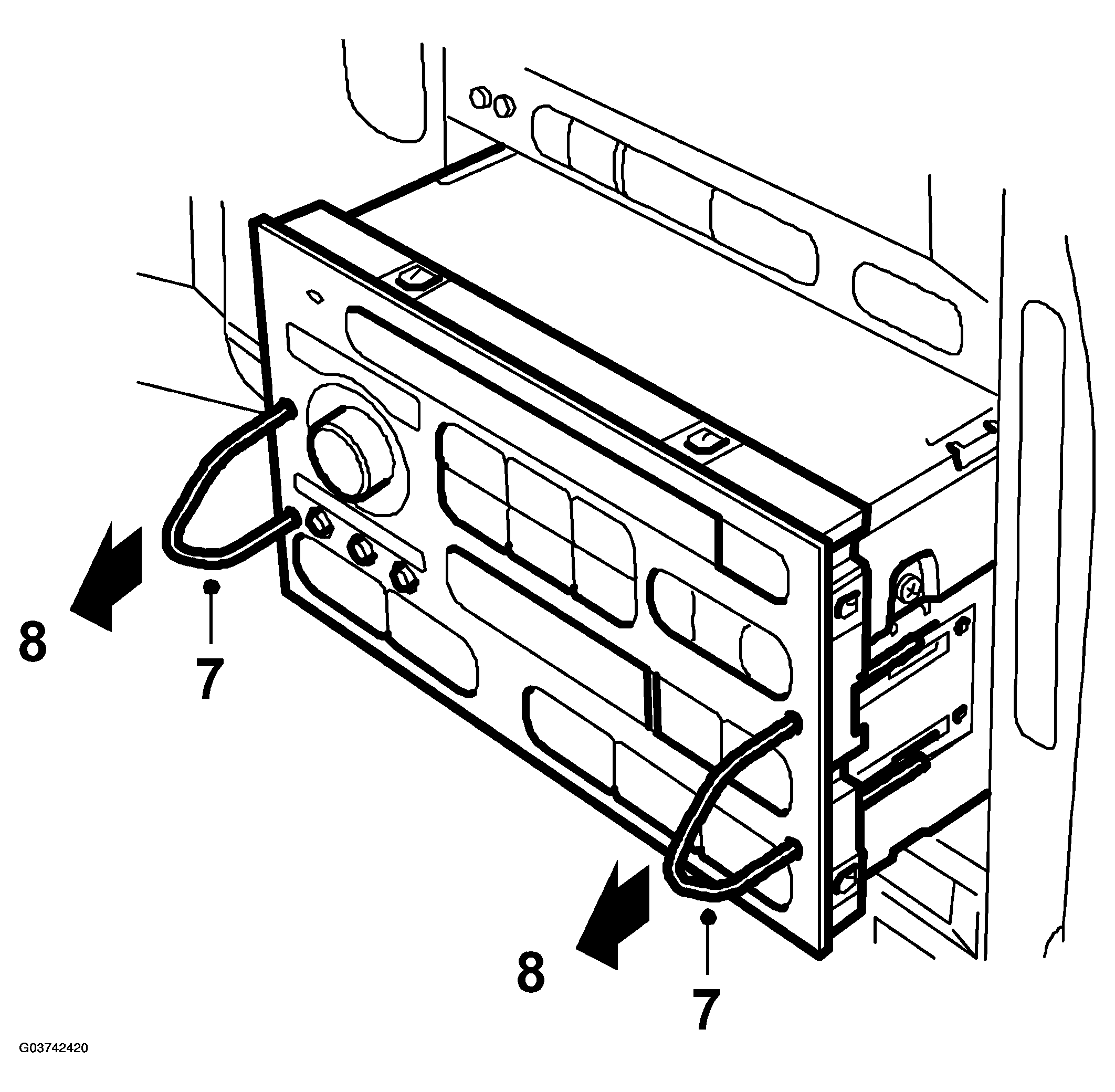

Fig 1: Illustration For Steps 7 & 8
G03742420Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Connect Tech 2.
  2. Establish communication with the audio system.
  3. Select "PROGRAMMING " from the system menu.

    The text "Marriage/Divorce" is displayed.

  4. Press "ENTER".
  5. Select DIVORCED with the change button and press "OK".
    • "DIVORCED" must be selected when removing the main unit (to be installed in another car or to be returned for warranty repair).
  6. The radio should go silent after a slight delay and "RADIO CODE" is displayed on SID.
  7. Press both special tools into the holes provided for them in the main unit. Press the tools in until they lock, at which point a click will be heard.
  8. Extract the main unit using the tool handles. Remove the special tools.
