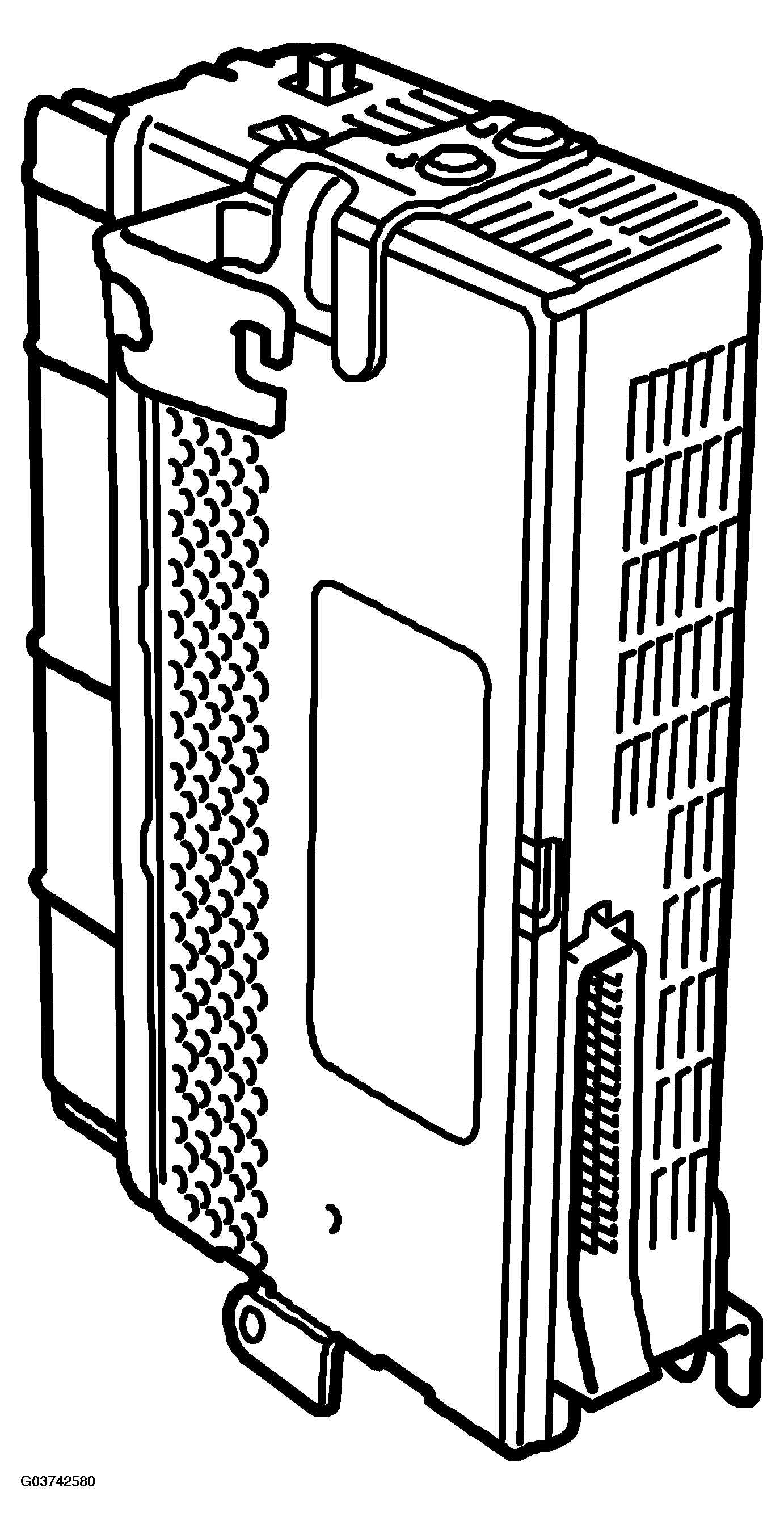

Amplifier, Premium
AMPLIFIER (PREMIUM) TECHNICAL DATA
| Manufacturer: | Pioneer. | |
| Location: | Right-hand A-pillar. | |
| Number of pins: | 39 | |
| Mute control (in): | Pin No. | 11 |
| Trigger voltage: | Pin No. | 12 |
| Power supply +30: | Pin No. | 1, 2 |
| Ground | Pin No. | 21, 22 |
| Inputs: | 4 channels (lines), balanced. | |
| Outputs: | Center | 1 x 5 W (at 4.8 ohms). |
| mid-range/treble | 2 x 15 W (at 4.1 ohms), right/left dashboard. 2 x 15 W (at 3.6 ohms), right/left rear doors. |
|
| Bass | 2 x 25 W (at 1.8 ohms), right/left front doors. | |
| Distortion (THD) at rated power: | <1% | |
| Closed-circuit current consumption: | mA | +/-0.1 |
| Max. current consumption: | A | <16 |
