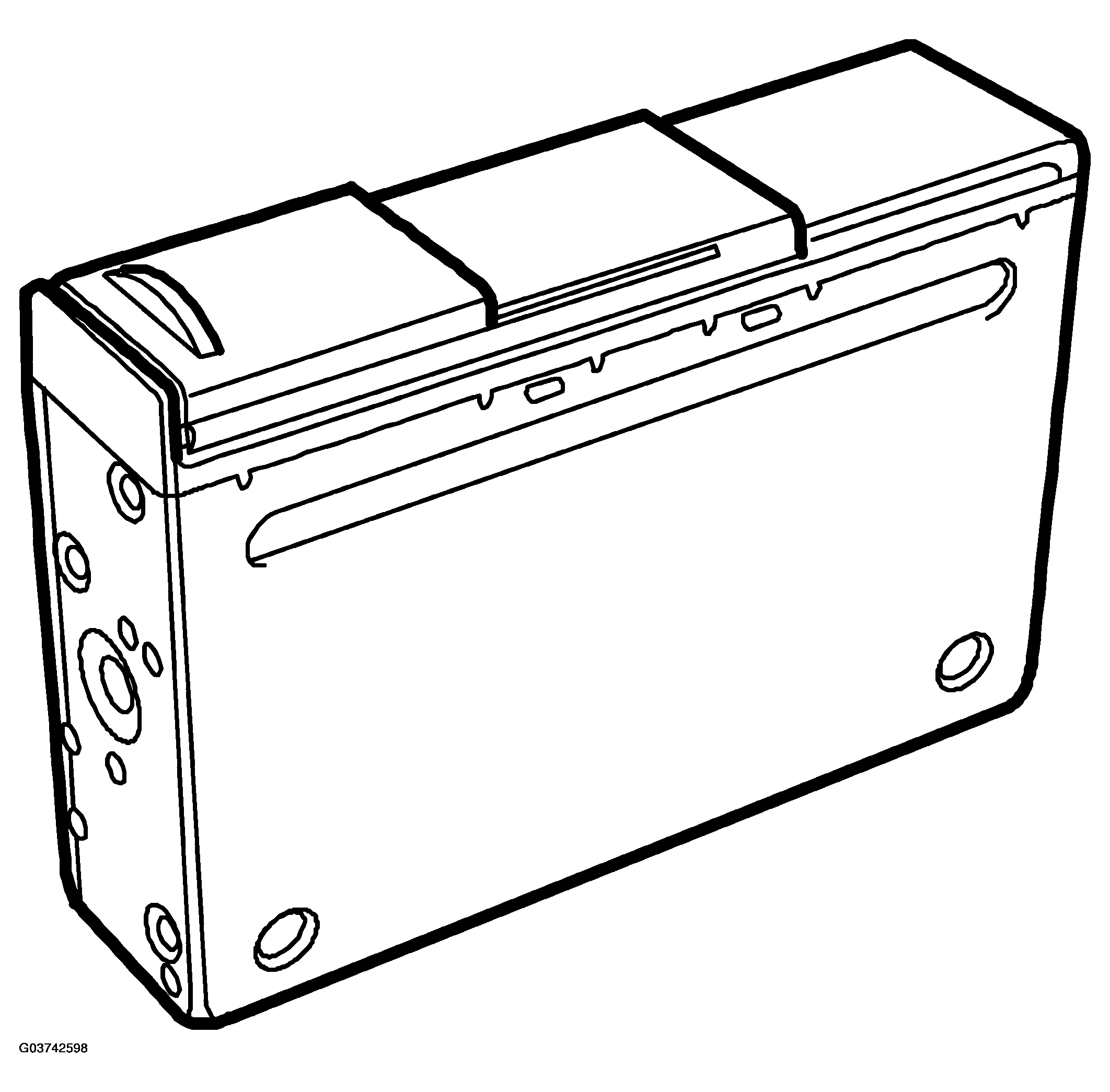

CD changer
CD CHANGER TECHNICAL DATA
| Manufacturer | Pioneer | |
| Type | Magazine (6 x CD) | |
| Location | 4D | Luggage compartment |
| 5D | Luggage compartment | |
| Number of pins | 12 | |
| Power supply +30 | Pin No. | 6 |
| Ground | Pin No. | 12 |
| Instrument bus, I-BUS (+) | Pin No. | 11 |
| Instrument bus, I-BUS (-) | Pin No. | 5 |
| Frequency response | 20 - 20,000 Hz 0.5 dB, nom | |
| Closed-circuit current consumption | mA | < 0.4 |
| Max. current consumption | A | < 1.5 |
WARNING:
The CD changer is a Class 1 laser product
- The CD changer should be serviced and repaired by a qualified technician only.
- If the casing of the CD changer is damaged, laser radiation can occur with a risk of injury.
