Main unit outputs

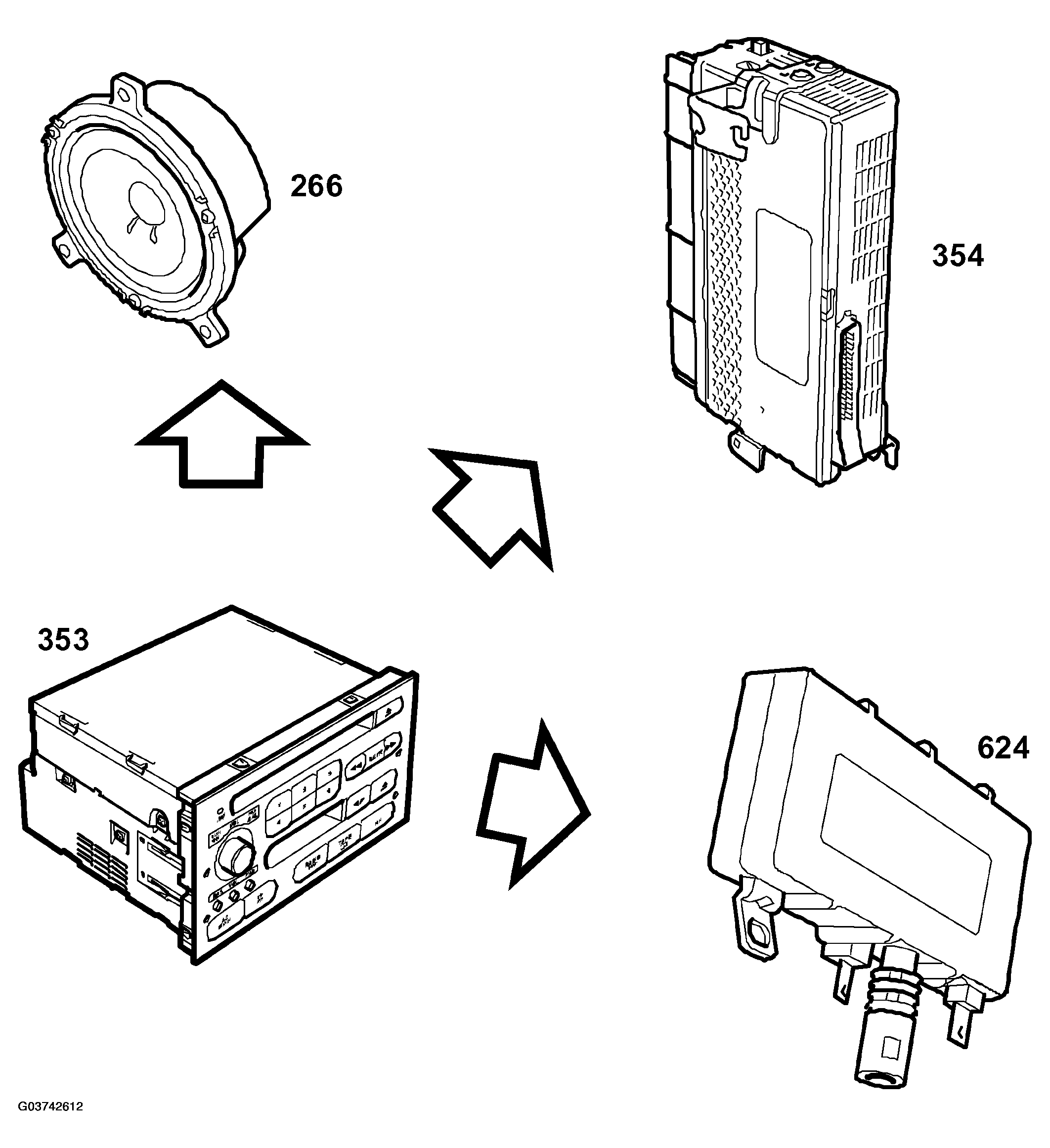

Fig 1: Identifying Communication Diagram Of Main Unit Outputs

G03742612

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Trigger voltage (624)
Mute control, external amplifier (354)
Line output, right-hand channel +/- (front) (354)
Line output, left-hand channel +/- (front) (354)
Line output, right-hand channel +/- (rear) (354)
Line output, left-hand channel +/- (rear) (354)
Speaker, right-hand channel +/- (front) (266)
Speaker, left-hand channel +/- (front) (266)
Speaker, right-hand channel +/- (rear) (266)
Speaker, left-hand channel +/- (rear) (266)
