Connector H8-2
Connector H8-2

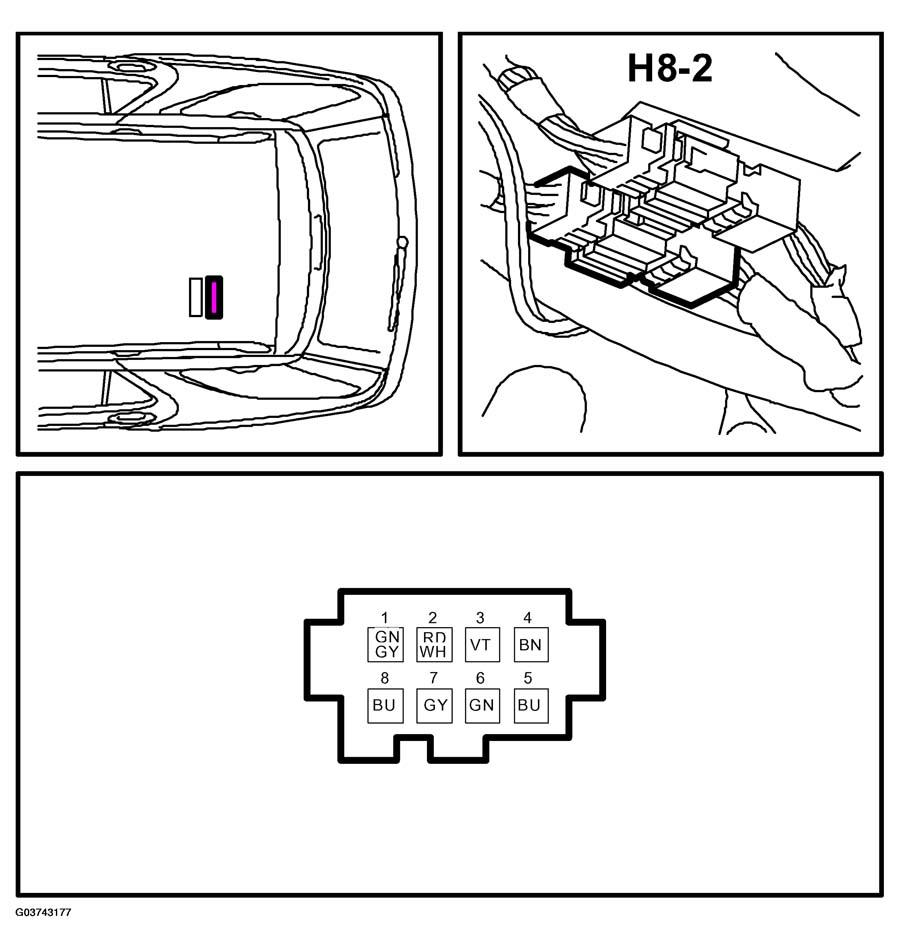

Fig 1: Identifying Connector H8-2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
