To remove

IMPORTANT: ESD-SENSITIVE COMPONENT
Earth yourself by touching the car body before plugging in/unplugging components. Do not touch the component pins  . Read BEFORE CHANGING A CONTROL MODULE  before changing a control module.

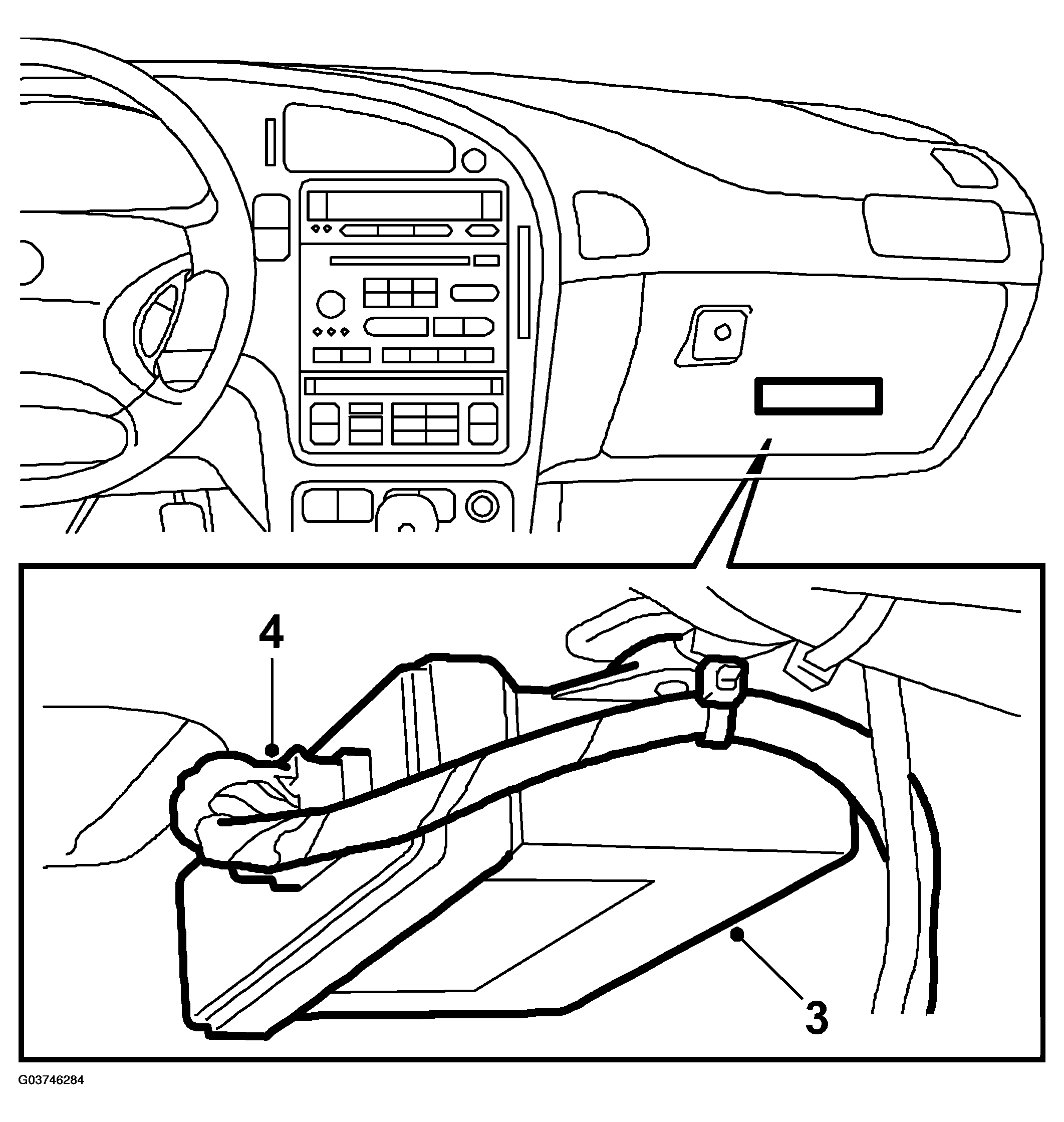

Fig 1: Illustration For Steps 3-4
G03746284Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the glove box. See GLOVE BOX to Remove.
  2. Remove the air duct.
  3. Unhook the control module from the plastic clip.
  4. Unplug the connector.
