- Open the door windows so that there is no risk of the windscreen being pressed out by the overpressure that would build in the passenger compartment if one of the doors would be closed.

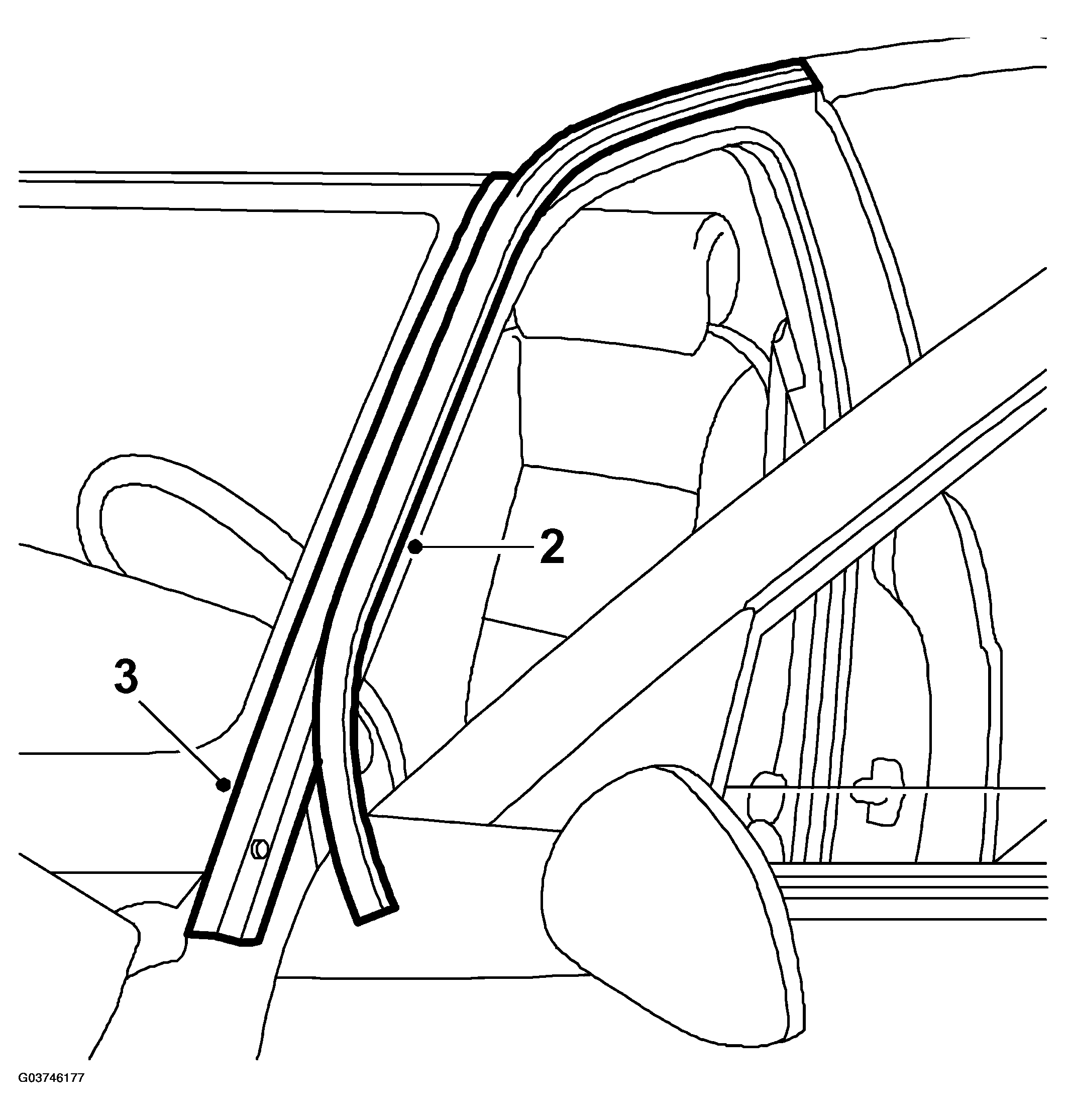

- Open the front doors and remove the roof moulding.
- Remove the side strips from the windscreen.
- Remove the windscreen wipers; use 85 80 144 PULLER, WINDSCREEN WIPER ARM
.
Courtesy of SAAB-SCANIA OF AMERICA, INC.

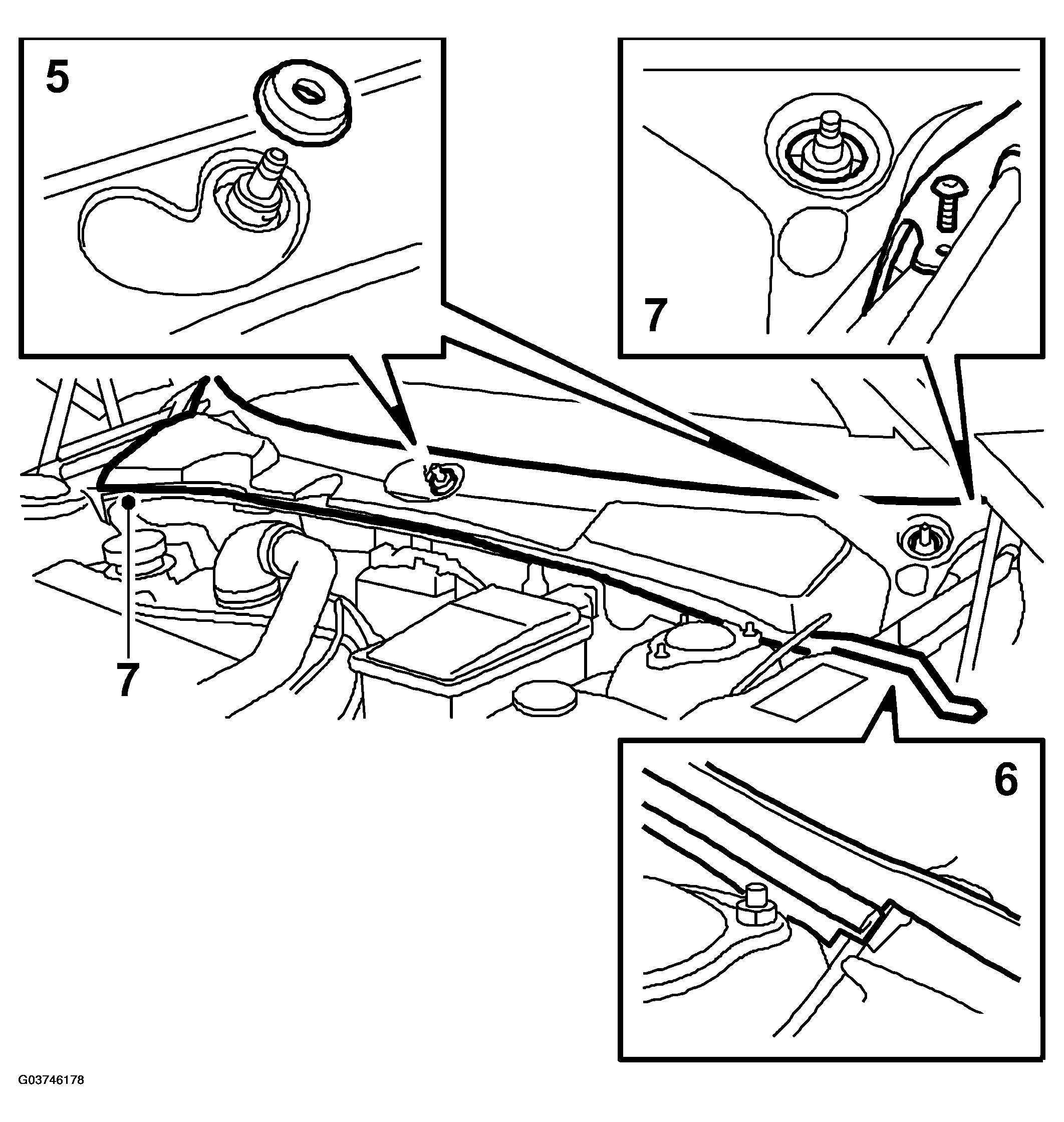

- Remove the rubber covers from the wiper stems.
- Remove the rear bonnet seal.
- Remove the clips holding the covering over the bulkhead partition space. Remove the covering by lifting the front edge and then pulling forward so that the clips release from the windscreen edge. Then lift rearwards and remove it.

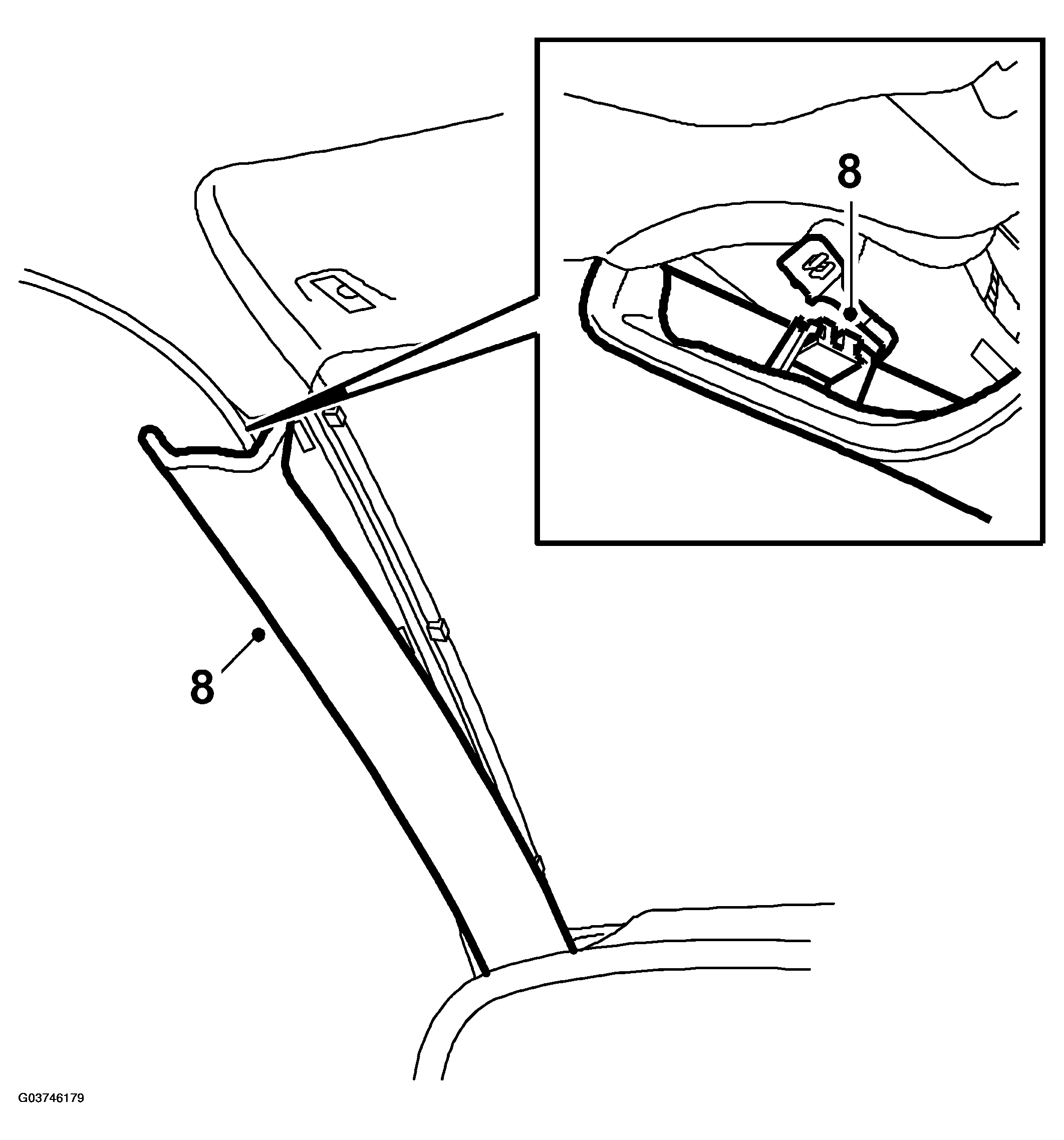

- Remove the A-pillar trim and ticket holder. Remove the upper clip from the trip by prying it from the outside with a screwdriver.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- For cars with rain sensor, see
. If the car does not have a rain sensor, continue from point 13.

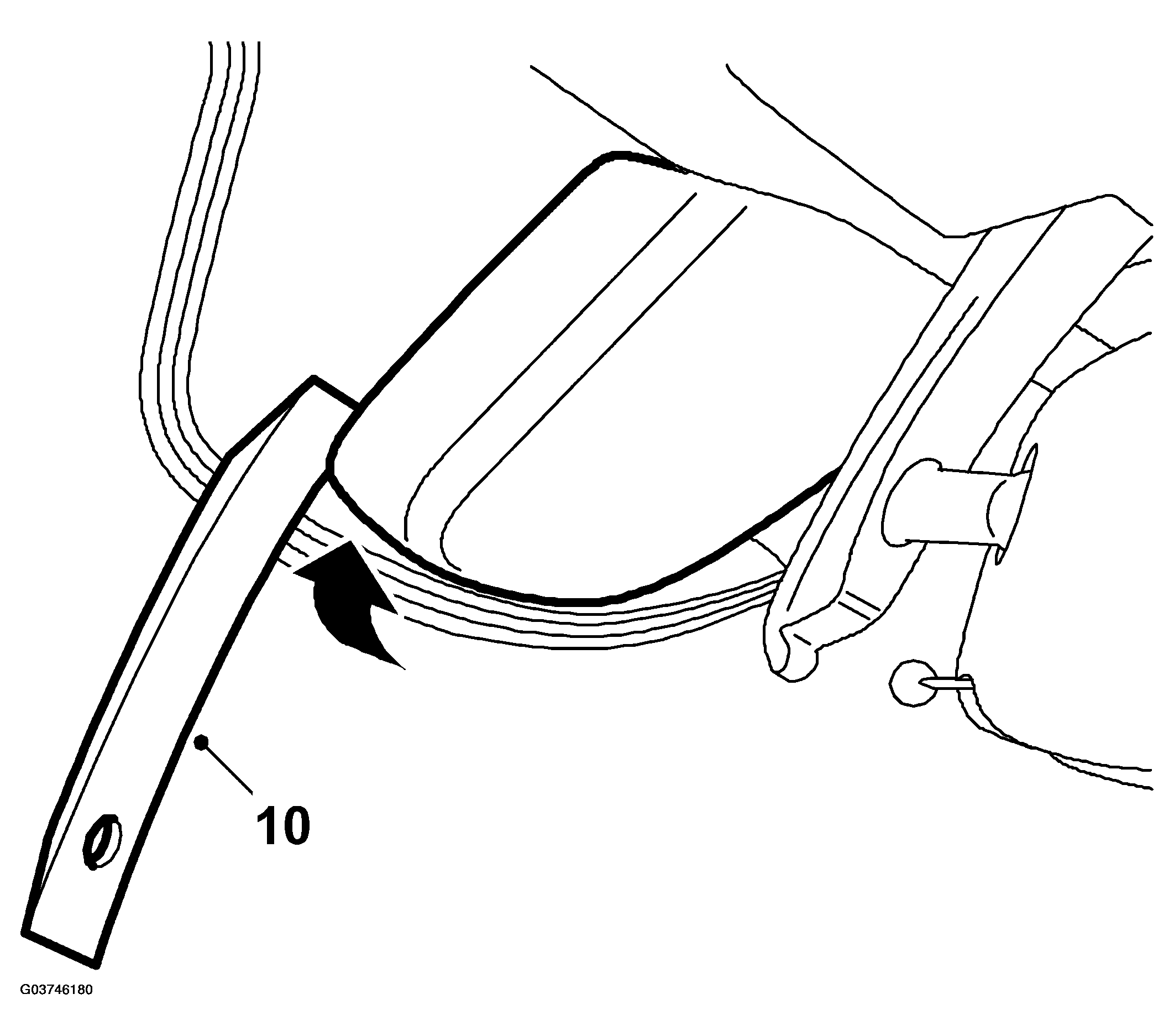

- Remove the sensor cover by inserting 82 93 474 REMOVAL TOOL
in the bottom edge and pulling the tool upwards. Repeat on the opposite side and lift away the cover.
Courtesy of SAAB-SCANIA OF AMERICA, INC.

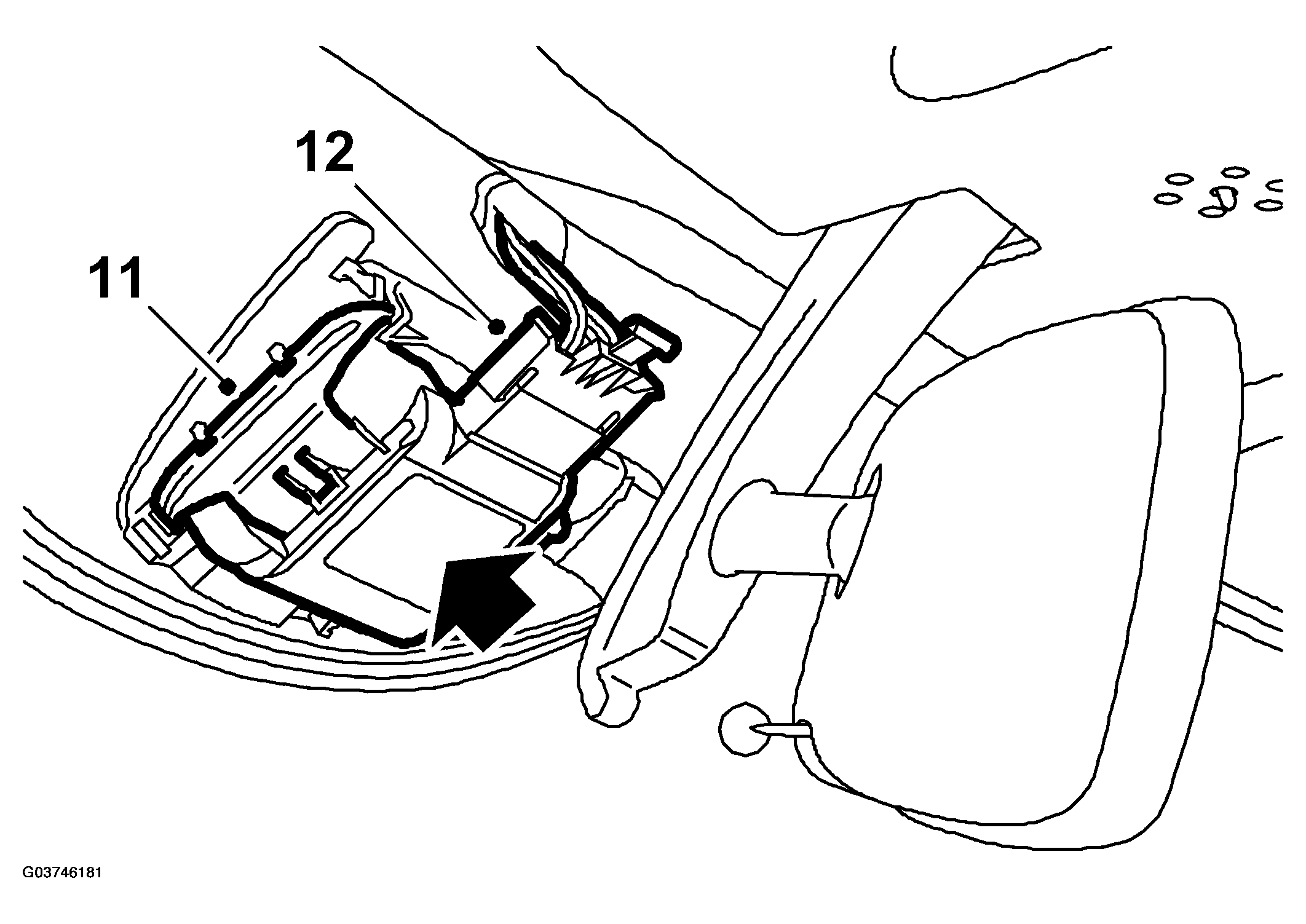

- Press out the ends of the clamps from the retainers on the windscreen console. It helps if you press the sensor towards the windscreen. Bend out the clamps and remove the sensor from the console.
NOTE:
Take care when releasing the clamps so as not to scratch the windscreen.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Unplug the connector from the sensor and let it hang from the headlining.
- Remove the upper windscreen moulding.
- When replacing glued windows, use 82 93 714 KIT, WINDOW REMOVAL TOOL
. If the window is so damaged that the suction cups do not adhere, use 30 14 099 HANDLE FOR CUTTING WIRE
and saw out the window with the help of a co-worker.
WARNING:
Use the protective equipment that is supplied with the windscreen removal and adhesive kit, such as the goggles and protective gloves.
- Measure out 6.5 m cutting wire.

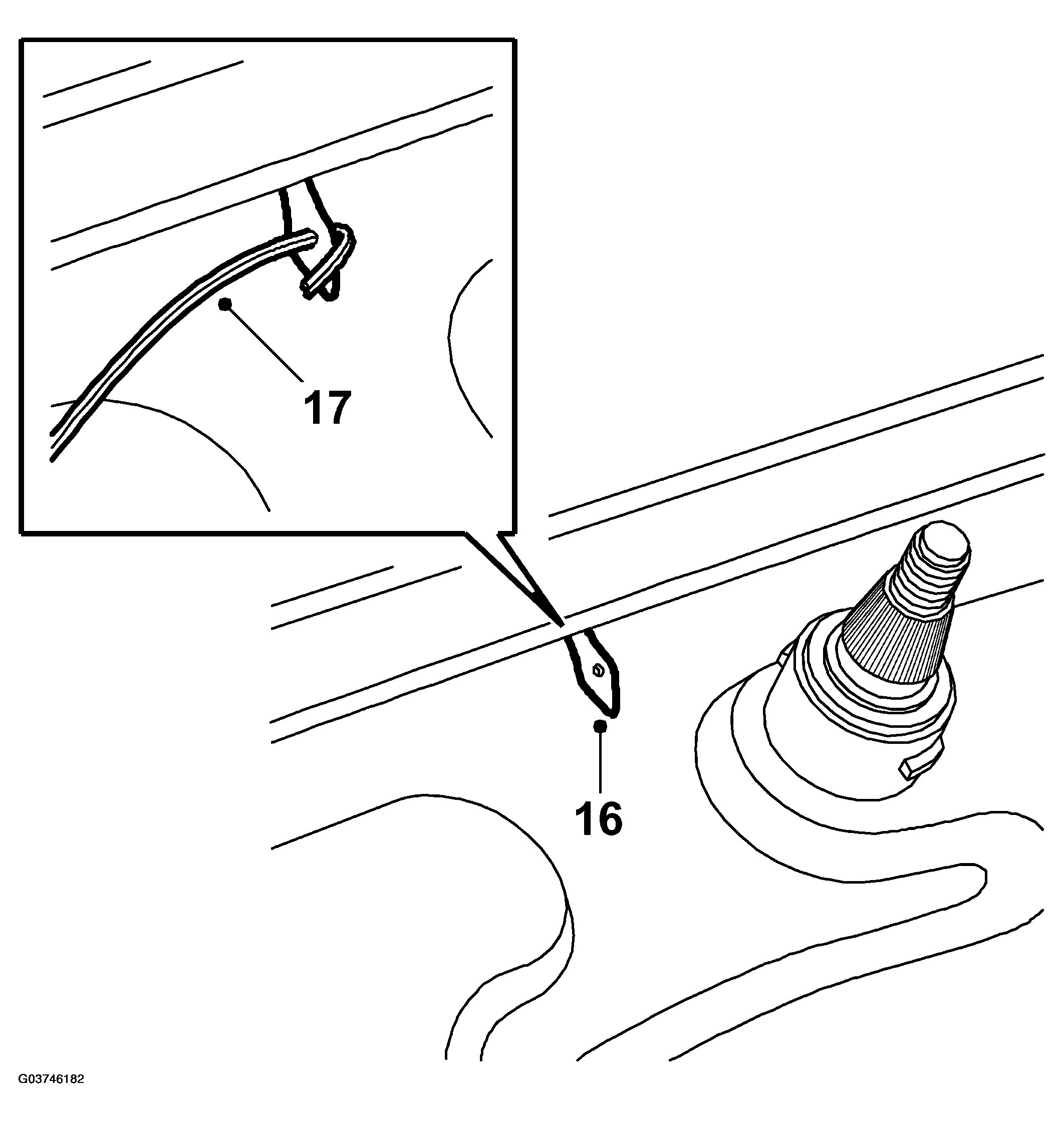

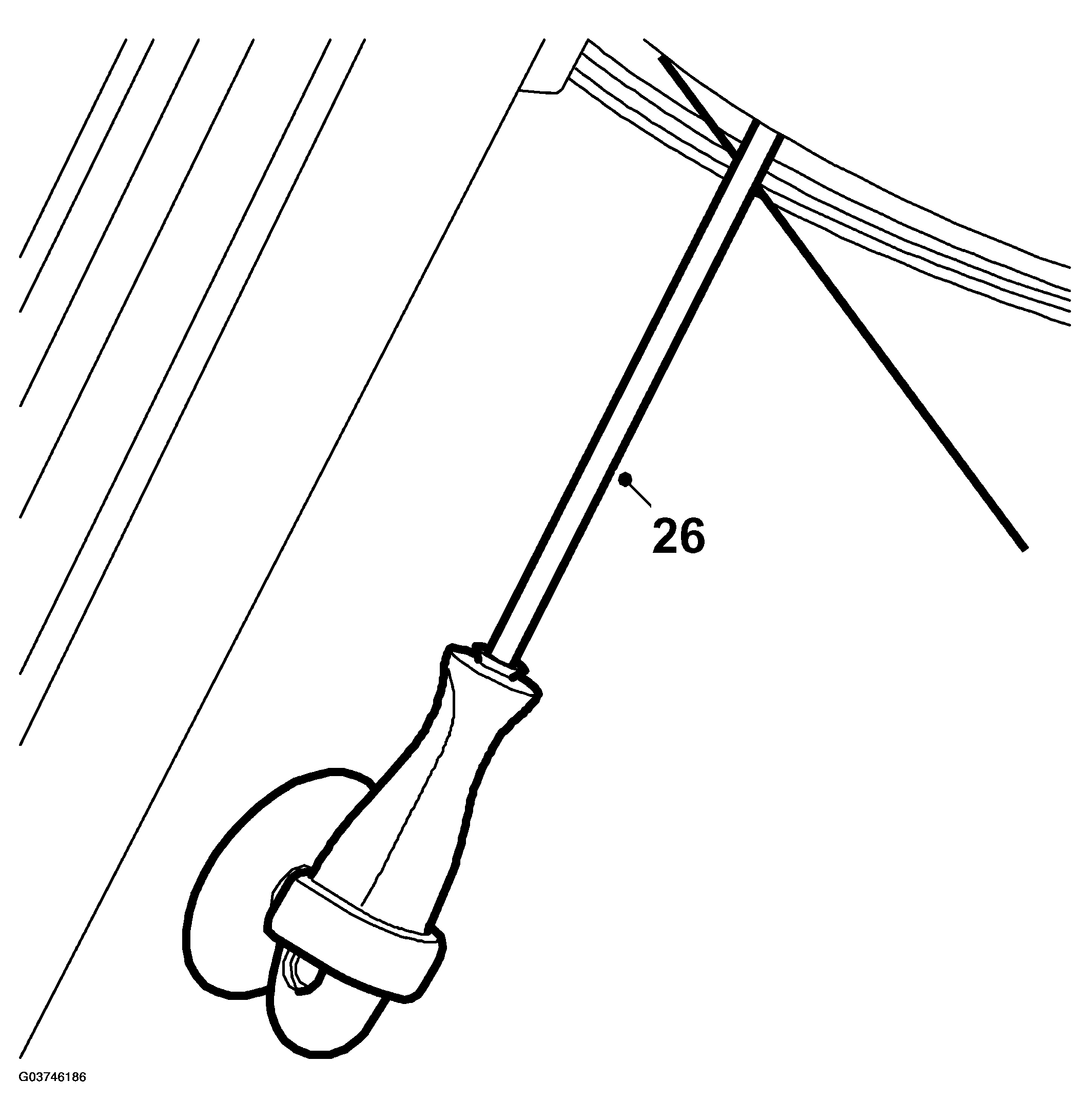

- Insert the chisel through the glue joint from the inside of the windscreen in the center of its lower edge.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Hook the wire ends through the eyes of the chisel and bend the ends so that they do not come out.
- Pull the chisel back through the glue joint into the passenger compartment. Pull in the wires about 0.7 m.
WARNING:
Ensure that the wire is not connected to the battery terminals if the cover is removed, otherwise there is a risk of short-circuit/fire.
- Unhook the cutting wires from the chisel. Straighten the wire ends so that they are at an obtuse angle. Put the chisel aside.
- Place the cutting wire around the windscreen. Ensure that it lies around all corners. Pull in the wire and check that it lies between the metal and the windscreen.

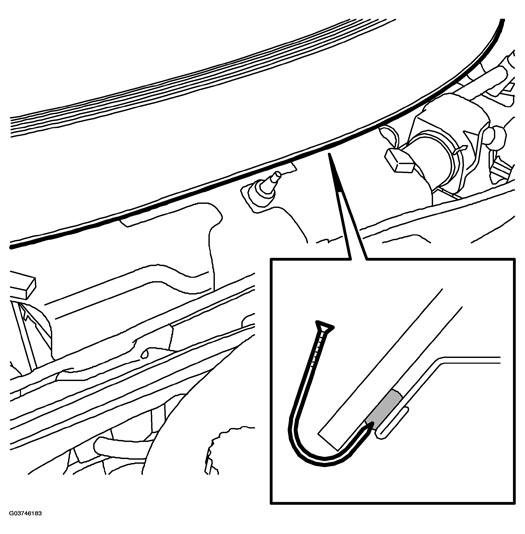

- In some cases, the glue joint may be so far down that there is no metal edge to place the cutting wire against (it then slides under the metal edge and cannot cut the glue joint). If that is the case, make four holders to keep the wire in place against the glue joint. Press the holders into the glue joint and place the wire in the holders. Then pull the wire into the car and continue as follows.
Courtesy of SAAB-SCANIA OF AMERICA, INC.

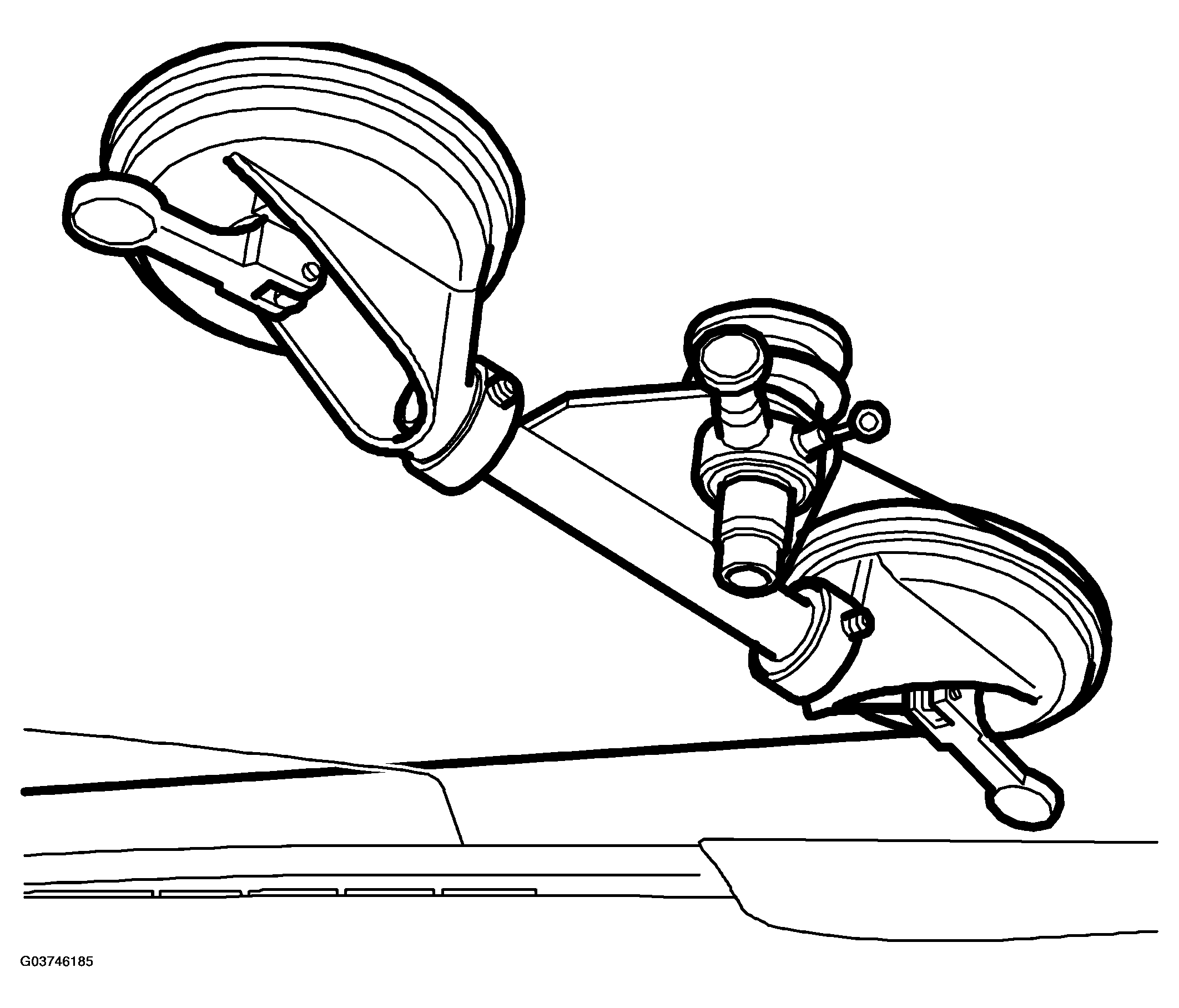

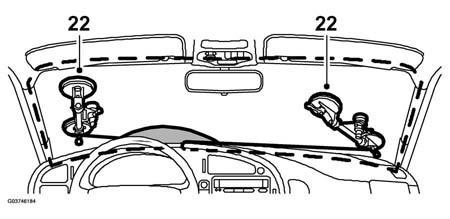

- Fit the whimples in the corners on the inside of the windscreen.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Attach the wire ends in the coils of the whimples. Make sure that the wires do not cross. Use the groove in the whimple's suction cup as a pulley to get a good angle.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Press the plastic guard down between the cutting wire and the panel to protect the interior equipment.
- Crank with a lock handle so that the wire cuts through the glue joint. Move the plastic guard as the wire moves. Move the whimple little by little to obtain a good angle. A transverse angle with the wire cuts best. If necessary, use the second whimple as support. If the wire seems to be coming off, wait 10-15 seconds so that the wire can work itself into the glue joint.
- When the wire begins to cut the upper part of the windscreen, fit the protective tool with suction cups between the cutting wire and metal roof to protect the interior equipment. Move the whimple and protective tool little by little as the windscreen loosens.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Fit the lifting handle on the outside of the windscreen.
- With the assistance of a co-worker, lift the windscreen away.
