PMM control module

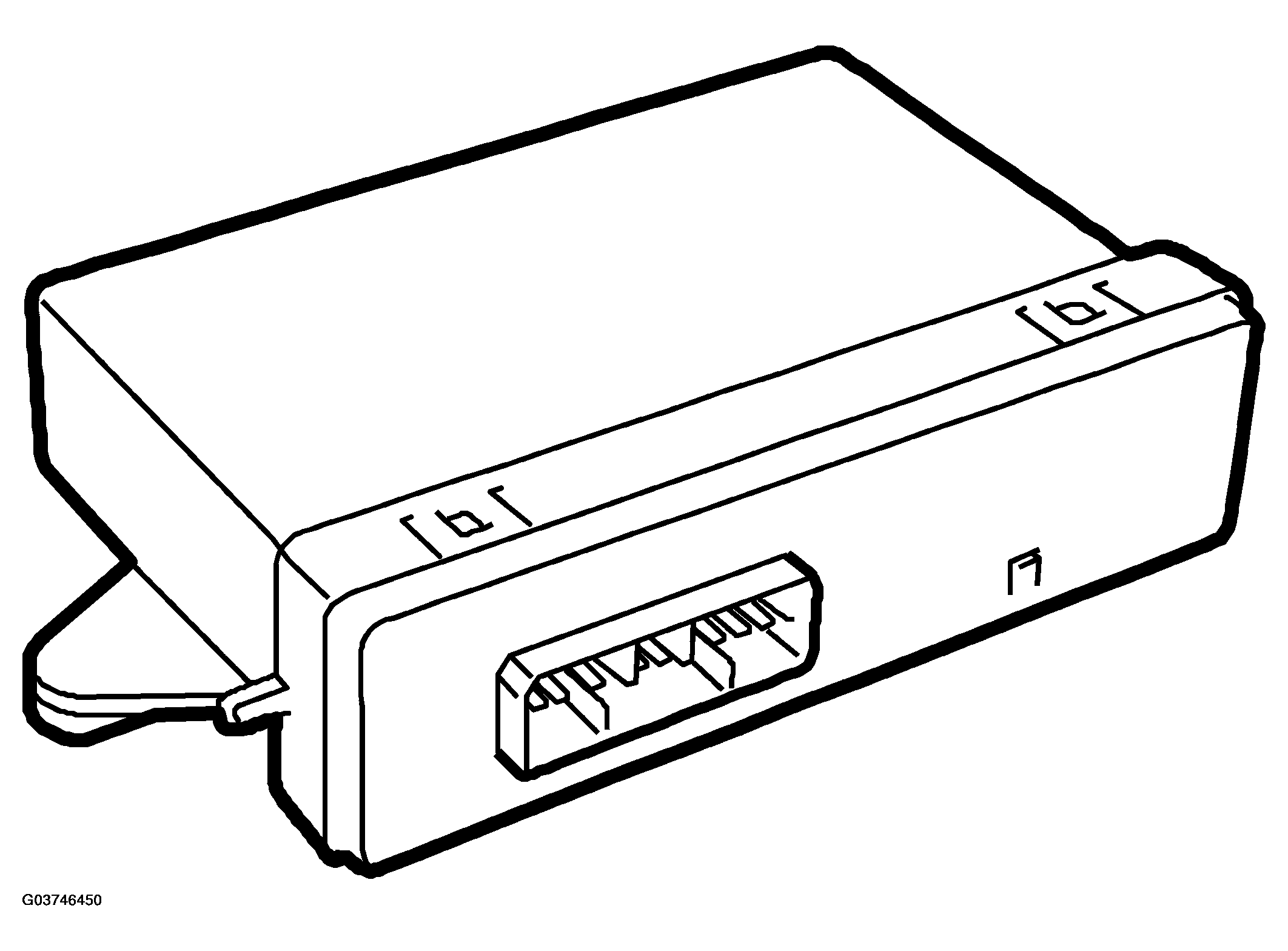

Fig 1: Identifying PMM Control Module

G03746450

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA (PMM CONTROL MODULE)

Number of connectors	qty	1
Number of connector pins	qty	20
Power supply +30	pin	1
Power supply +15	pin	2
Ground	pin	8
I bus (+)	pin	19
I bus (-)	pin	20
