Technical Data: Potentiometers
Courtesy of SAAB-SCANIA OF AMERICA, INC.

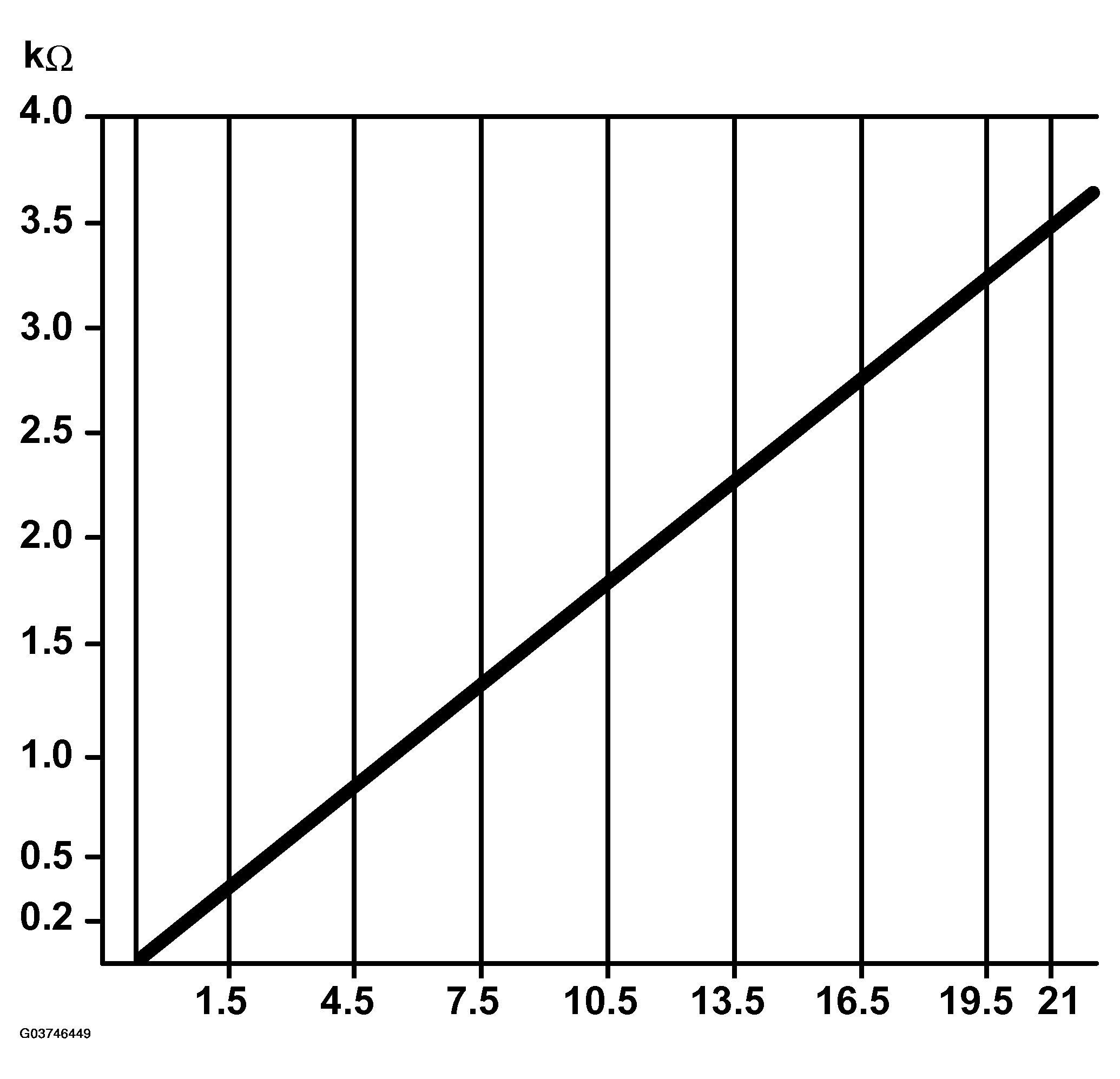

Courtesy of SAAB-SCANIA OF AMERICA, INC. TECHNICAL DATA (POTENTIOMETERS)
| Rotation angle (°) |
kOhm |
V |
| 1.5 |
0.3 |
0.4 |
| 4.5 |
0.8 |
1.1 |
| 7.5 |
1.3 |
1.8 |
| 10.5 |
1.8 |
2.5 |
| 13.5 |
2.3 |
3.2 |
| 16.5 |
2.8 |
3.9 |
| 19.5 |
3.3 |
4.7 |
| 21 |
3.7 |
4.9 |
