Home › Saab › 2004 › 9-5 Linear, Standard › Repair and Diagnosis › Body & Frame › Seats › Adjustment - Replacement › Fan resistor › To remove

To remove

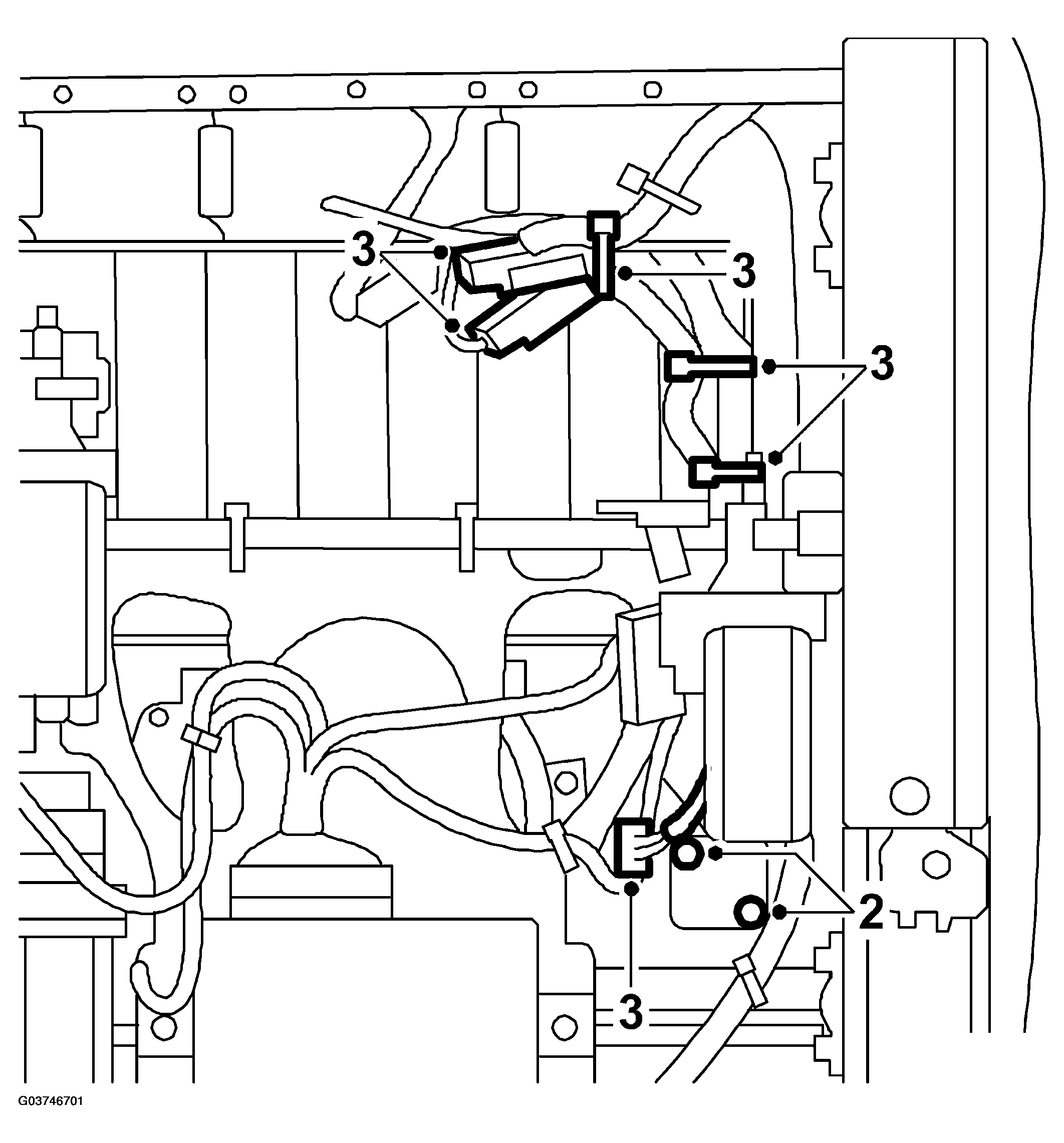

Fig 1: Illustration For Step 2 And 3
G03746701Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Take the front seat out of the car, see FRONT SEAT  .
  2. Remove the fan resistor, 2 screws.
  3. Unplug the connectors (3 pcs.) and cut the cable ties. Lift out the fan resistor.
