To remove

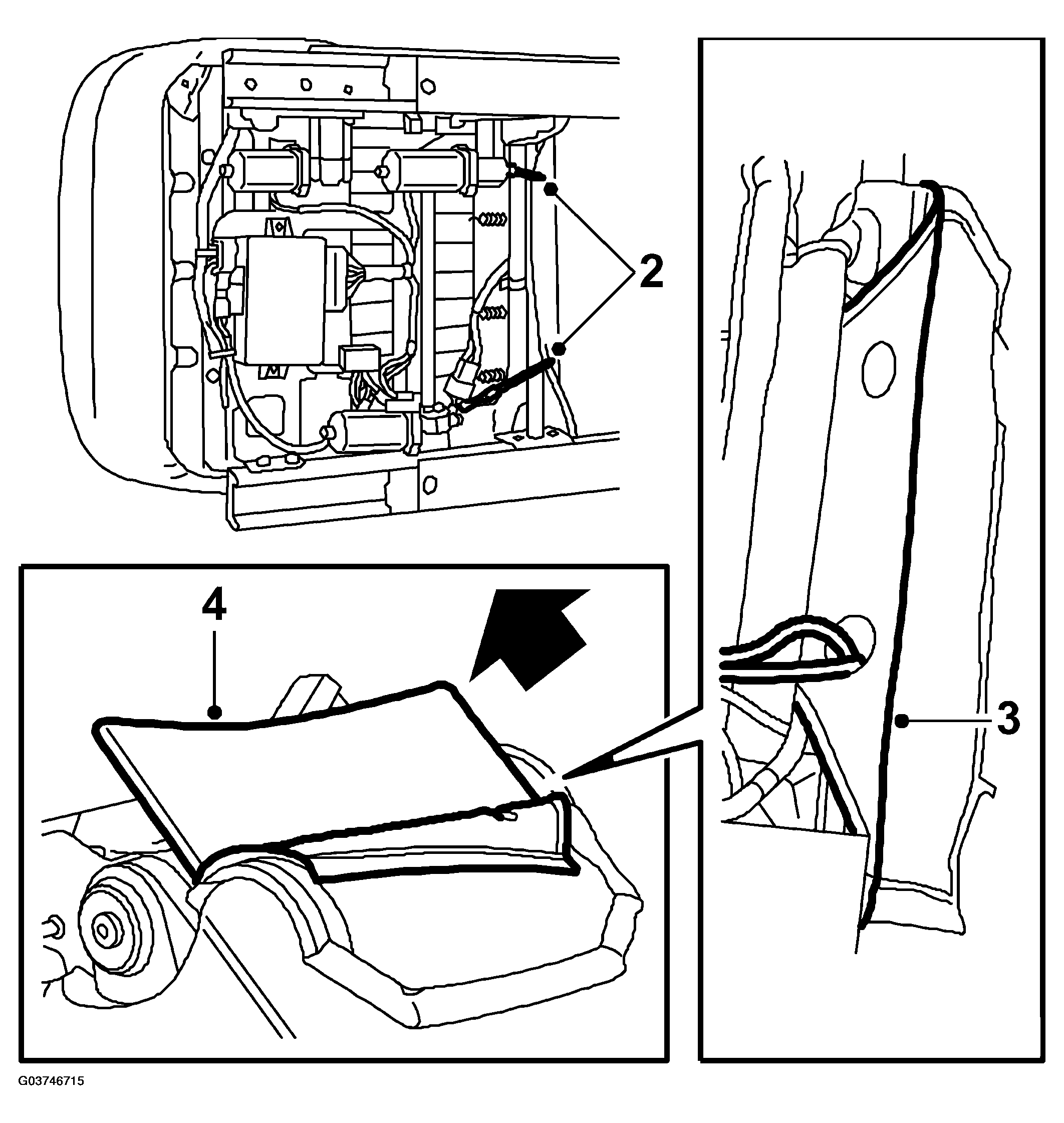

Fig 1: Illustration For Step 2 To 4
G03746715Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Take the front seat out of the car, see FRONT SEAT  .
  2. Undo the straps holding the backrest upholstery at the bottom.

    Undo the cables and cable ties. Extract the cables from the hole.

  3. Release the upholstery strips on the underside.
  4. Pull out the sheet from the backrest upholstery.
  5. Undo the rear of the backrest upholstery by releasing the upholstery strips along the sides and folding back the upholstery.

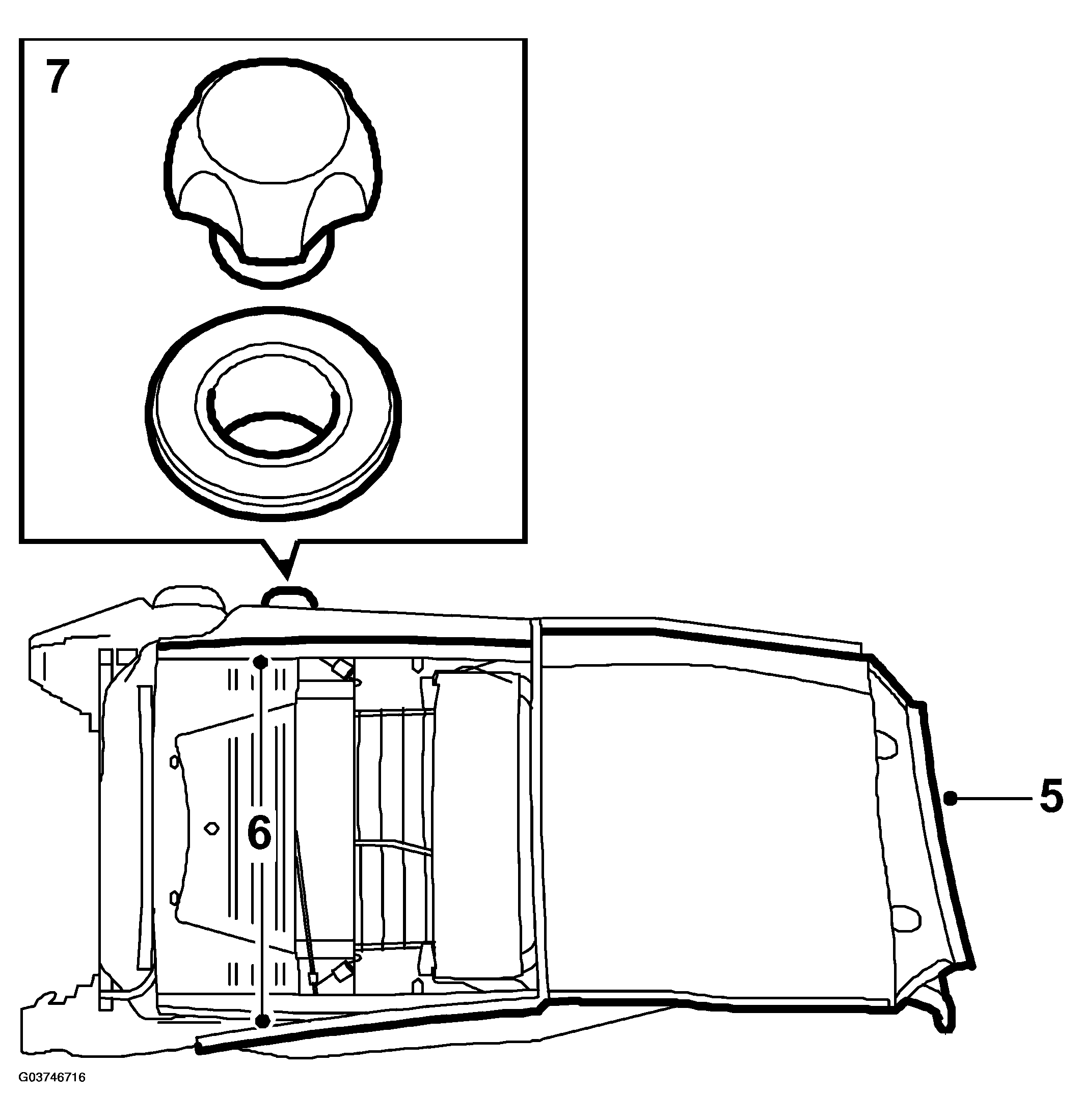

    Fig 2: Illustration For Step 5 And 6
    G03746716Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Release the upholstery strips along one side at the rear of the backrest frame.
  7. Remove the knob for the lumbar support adjustment.
  8. Detach the upholstery hooks in the underside of the backrest.
  9. Fold aside the upholstery and cushion at the side of the backrest.
  10. Unscrew the motor for the backrest adjustment, 2 screws.

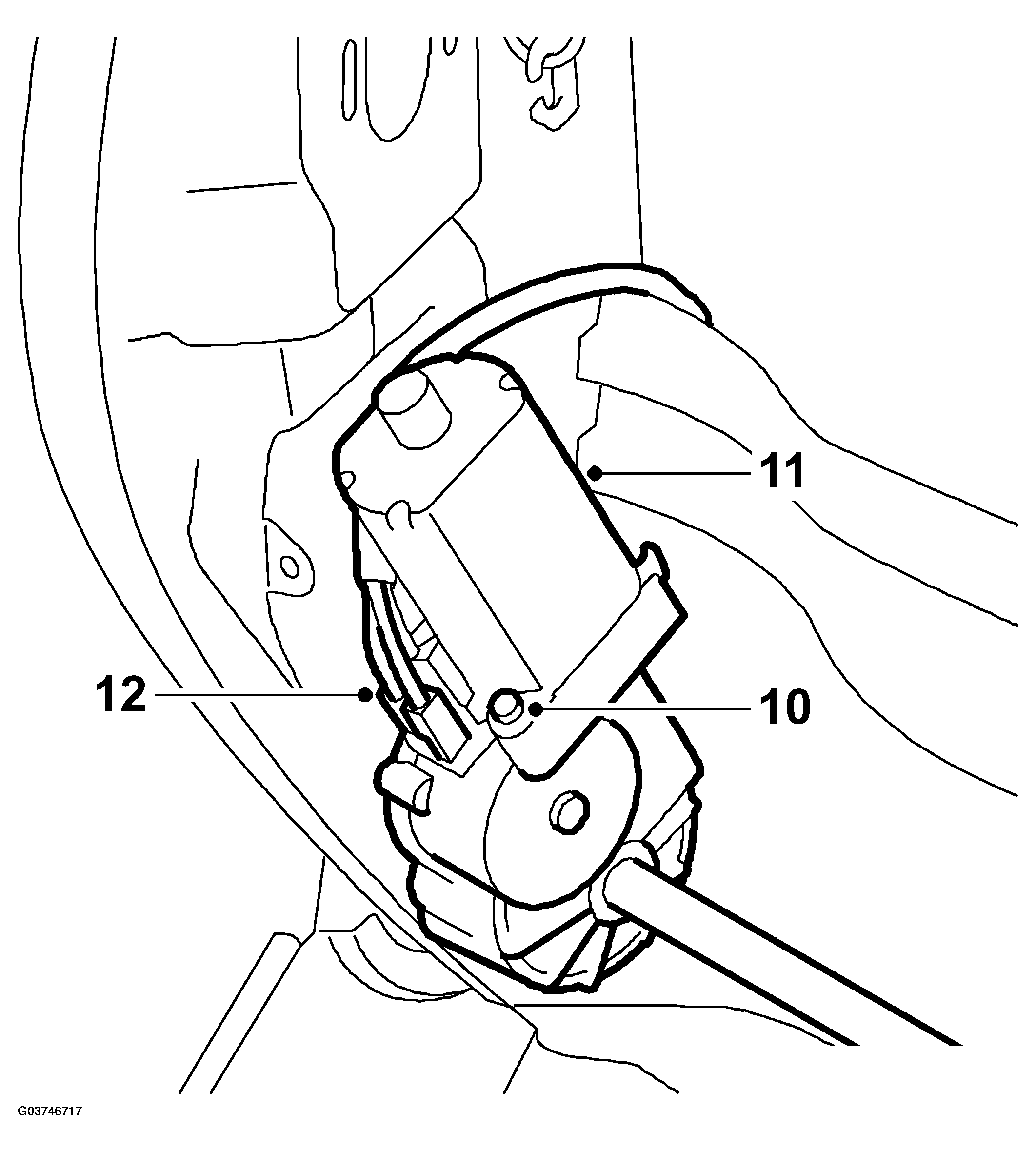

    Fig 3: Illustration For Step 10 To 12
    G03746717Courtesy of SAAB-SCANIA OF AMERICA, INC.
  11. Lift the motor off the gear wheel.
  12. Unplug the connector for the backrest adjustment motor.
