Grounding point G40: Notes

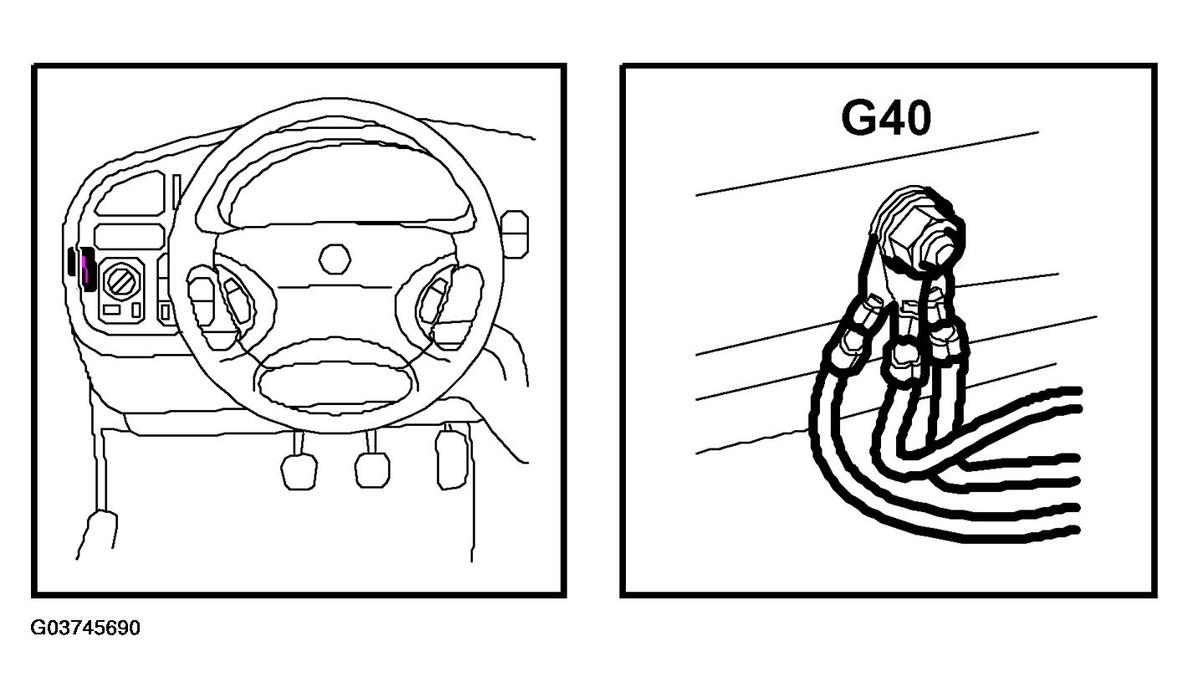

Fig 1: Identifying Grounding point G40
G03745690Courtesy of SAAB-SCANIA OF AMERICA, INC.

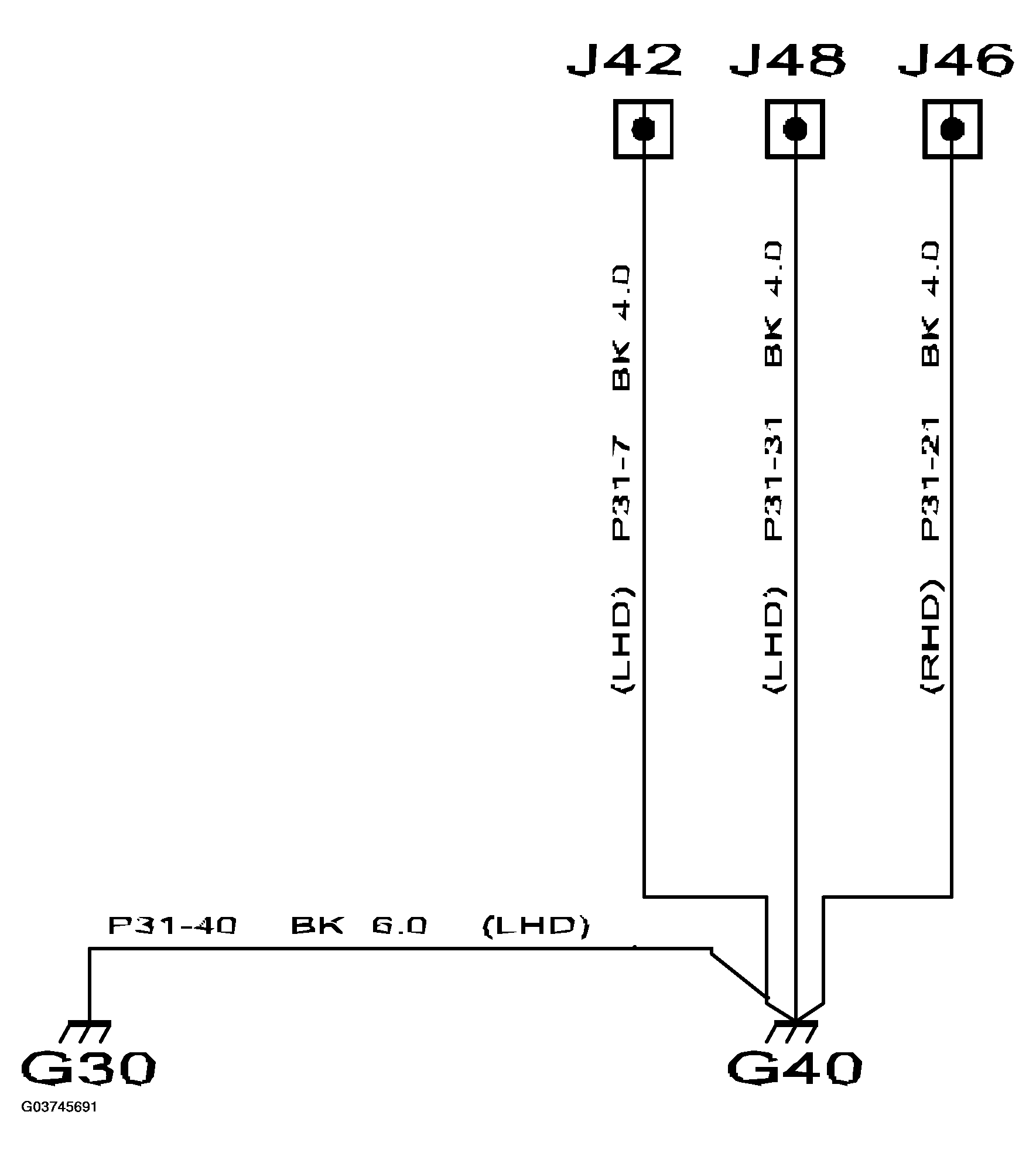

Fig 2: Identifying Grounding point G40 Circuit Diagram
G03745691Courtesy of SAAB-SCANIA OF AMERICA, INC.
