Steering wheel angel sensor

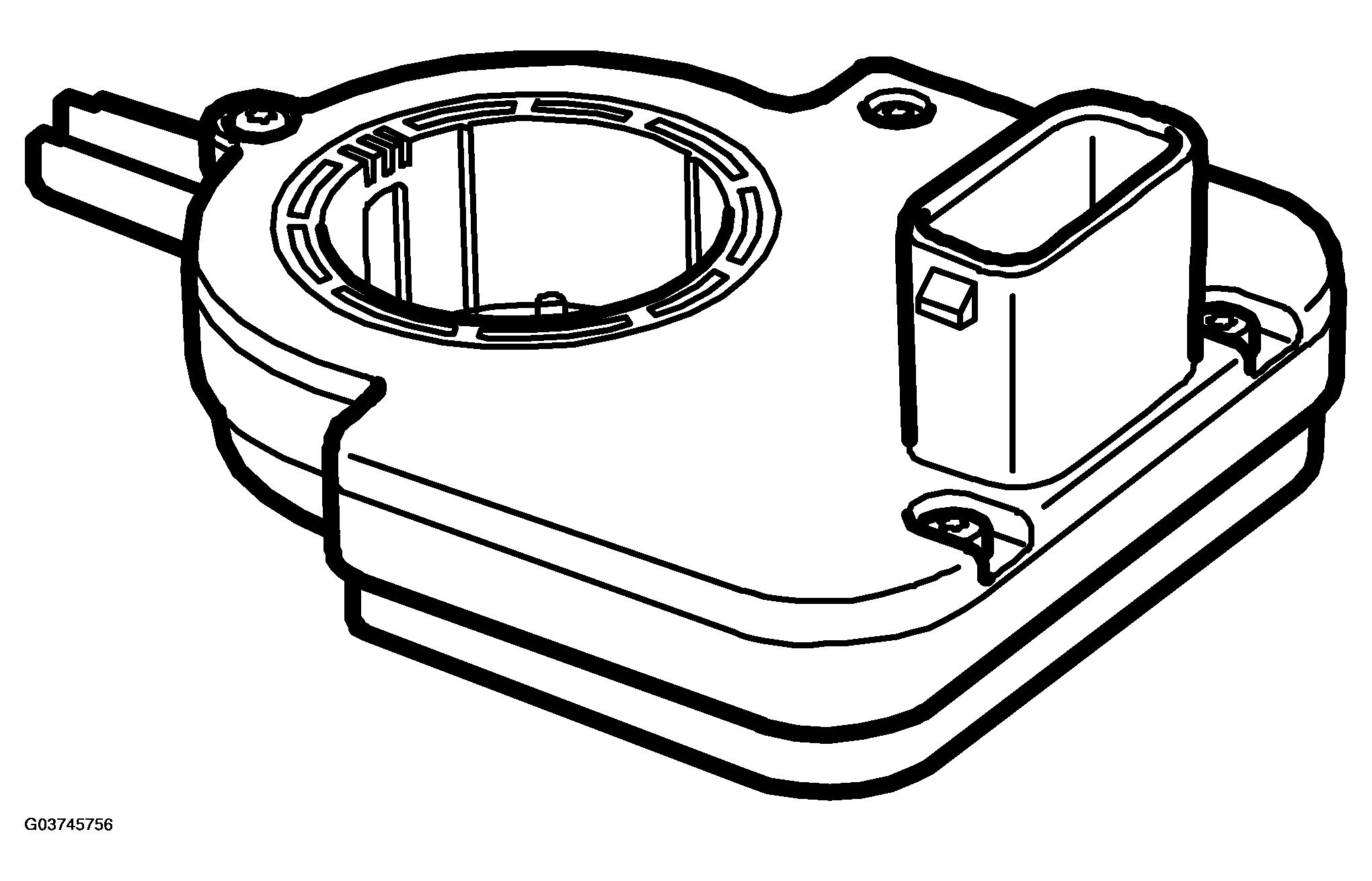

Fig 1: Identifying Steering Wheel Angel Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

STEERING WHEEL ANGEL SENSOR SPECIFICATION

Test range	+/-530° used by sensor. Equivalent to 2.9 turns of the steering wheel.
Tolerance from 0-point	+/-5°
