Home › Saab › 2004 › 9-5 Linear, Standard › Repair and Diagnosis › Engine Mechanical › Mechanical › Basic Engine › Adjustment - Replacement › Reducing valve › To remove

To remove

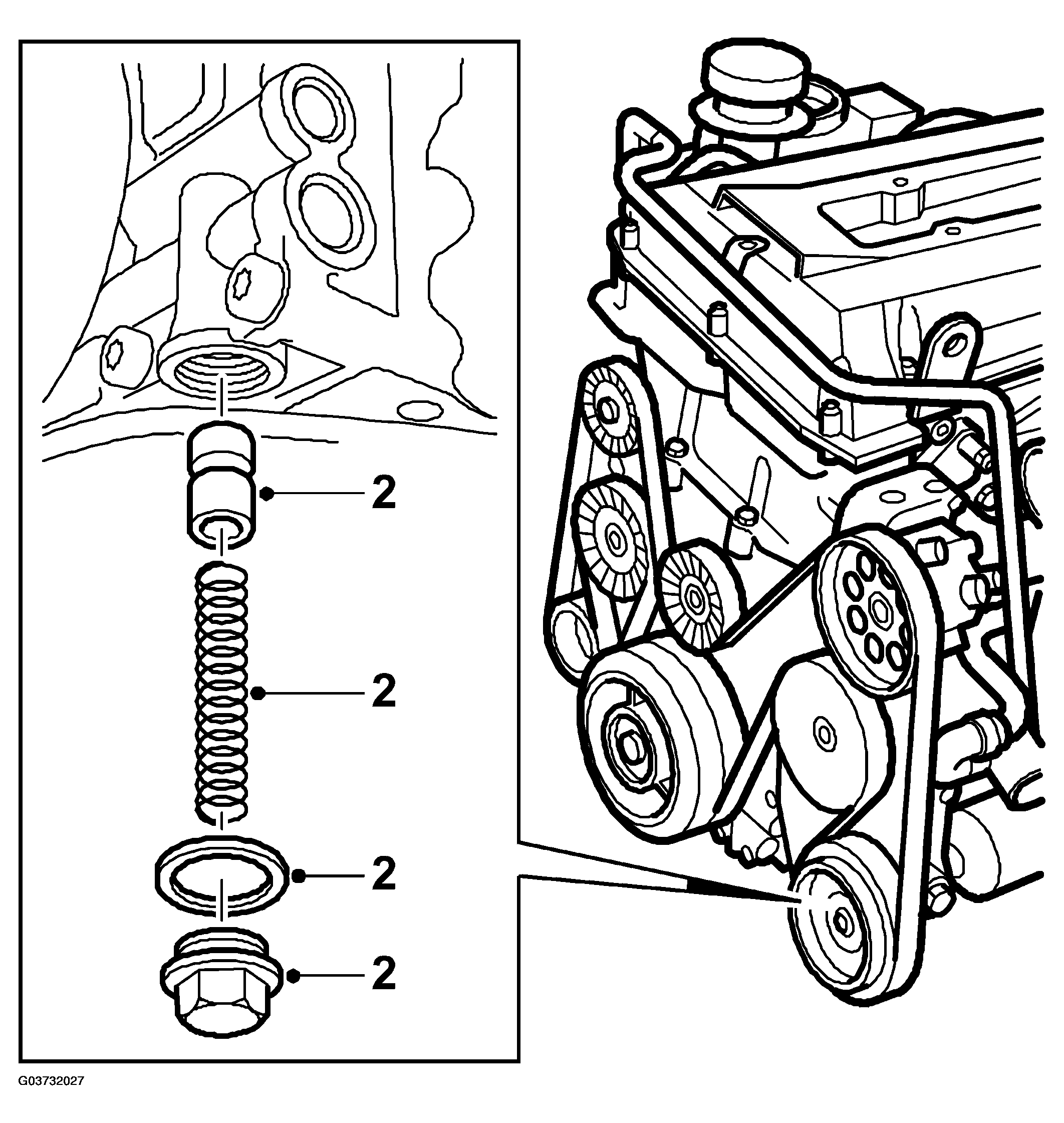

Fig 1: Illustration For Step 2
G03732027Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Raise the car and remove the cover.
  2. Unscrew the plug and extract the spring and reducing valve.
