Home › Saab › 2004 › 9-5 Linear, Standard › Repair and Diagnosis › Engine Performance › TRIONIC T7 Fuel Control System › Component Location › Crimp J20, petrol engine harness

Crimp J20, petrol engine harness

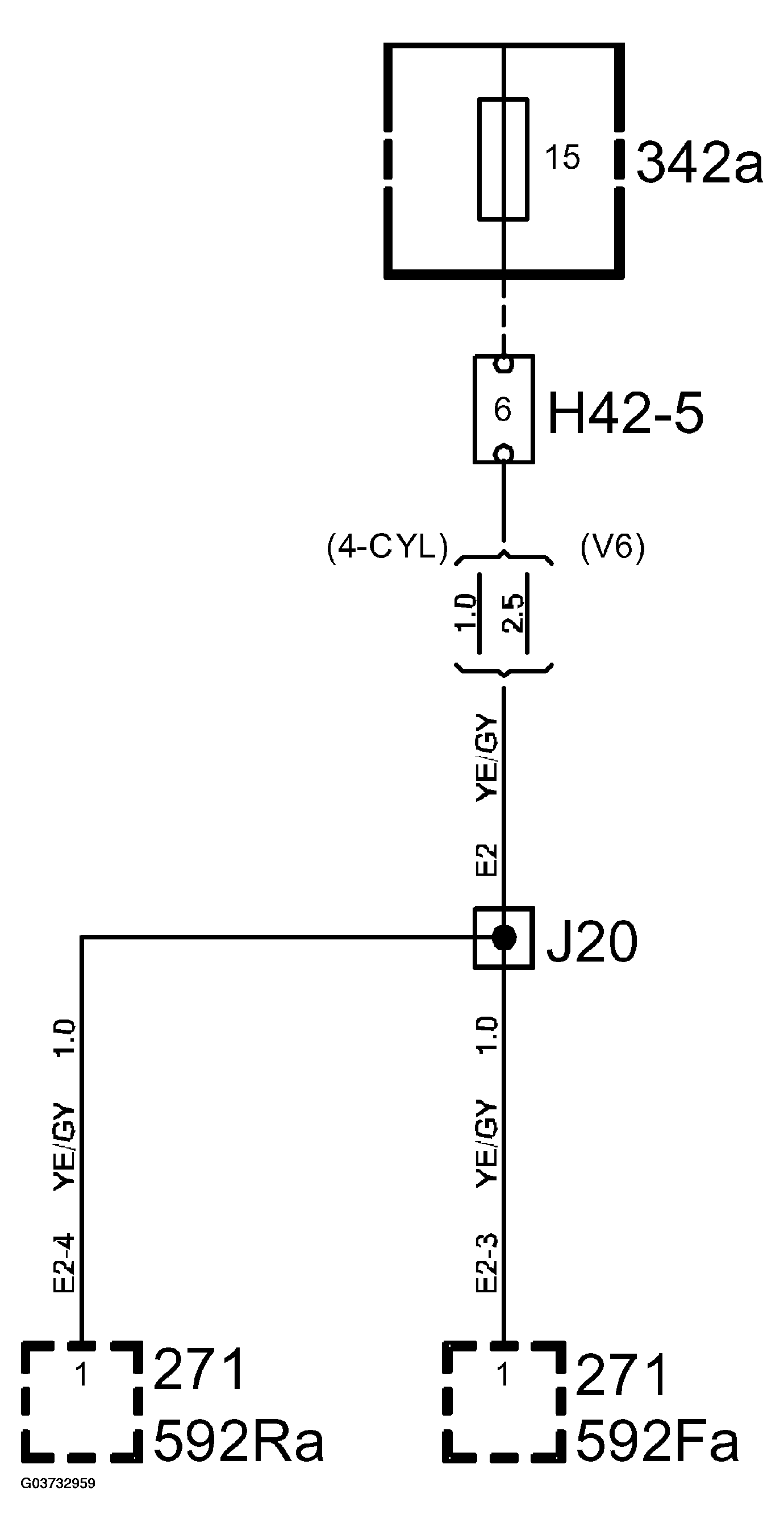

Fig 1: Petrol Engine Harness Circuit Diagram - Crimp J20
G03732959Courtesy of SAAB-SCANIA OF AMERICA, INC.
