Clutch pedal switch (133)
Clutch pedal switch (133)

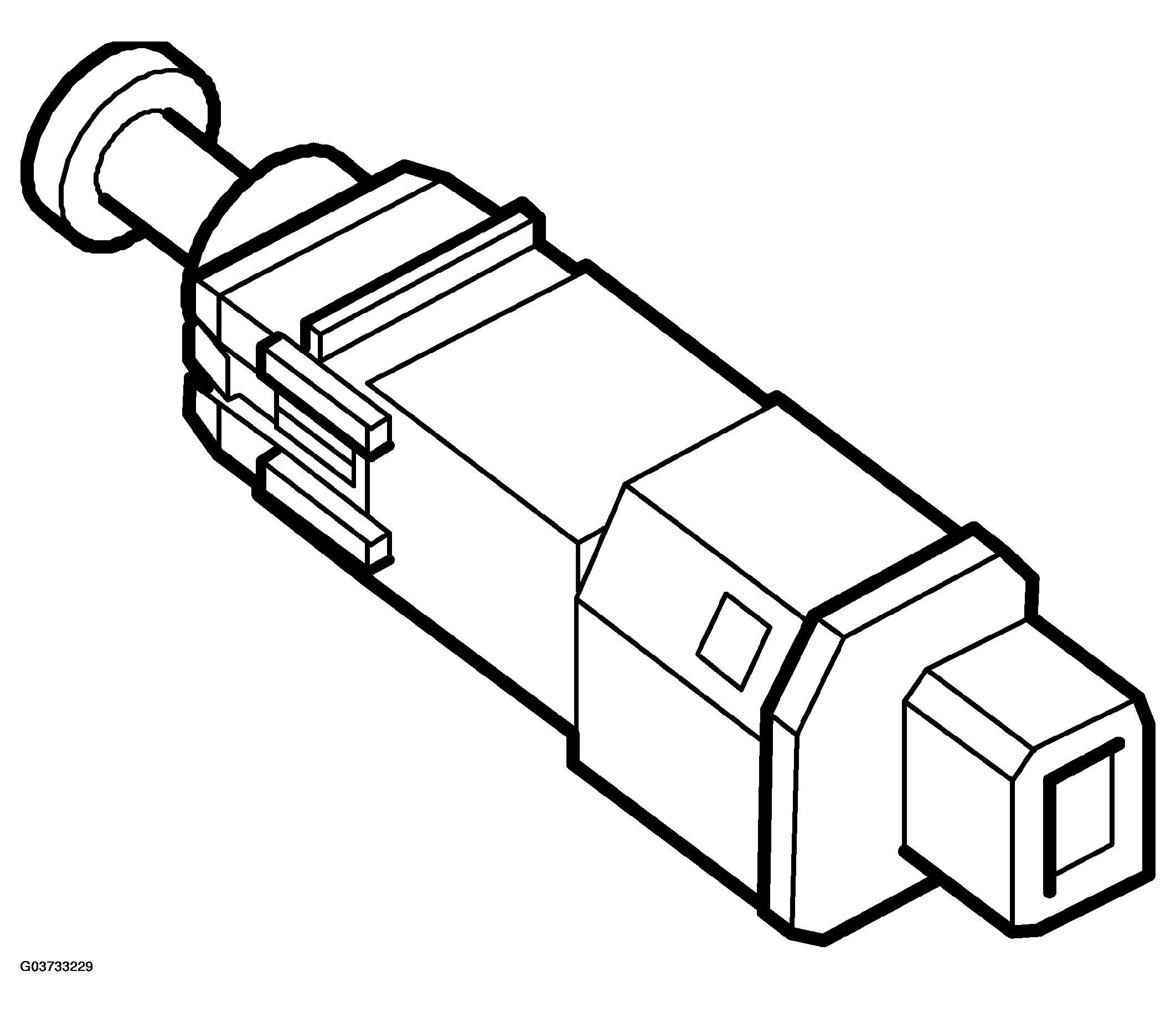

Fig 1: Identifying Clutch Pedal Switch
Courtesy of SAAB-SCANIA OF AMERICA, INC.
CLUTCH PEDAL SWITCH DESCRIPTION
Location
On pedal bracket
Characteristics, pins 1-2
Normally closed when pedal released
