Component View

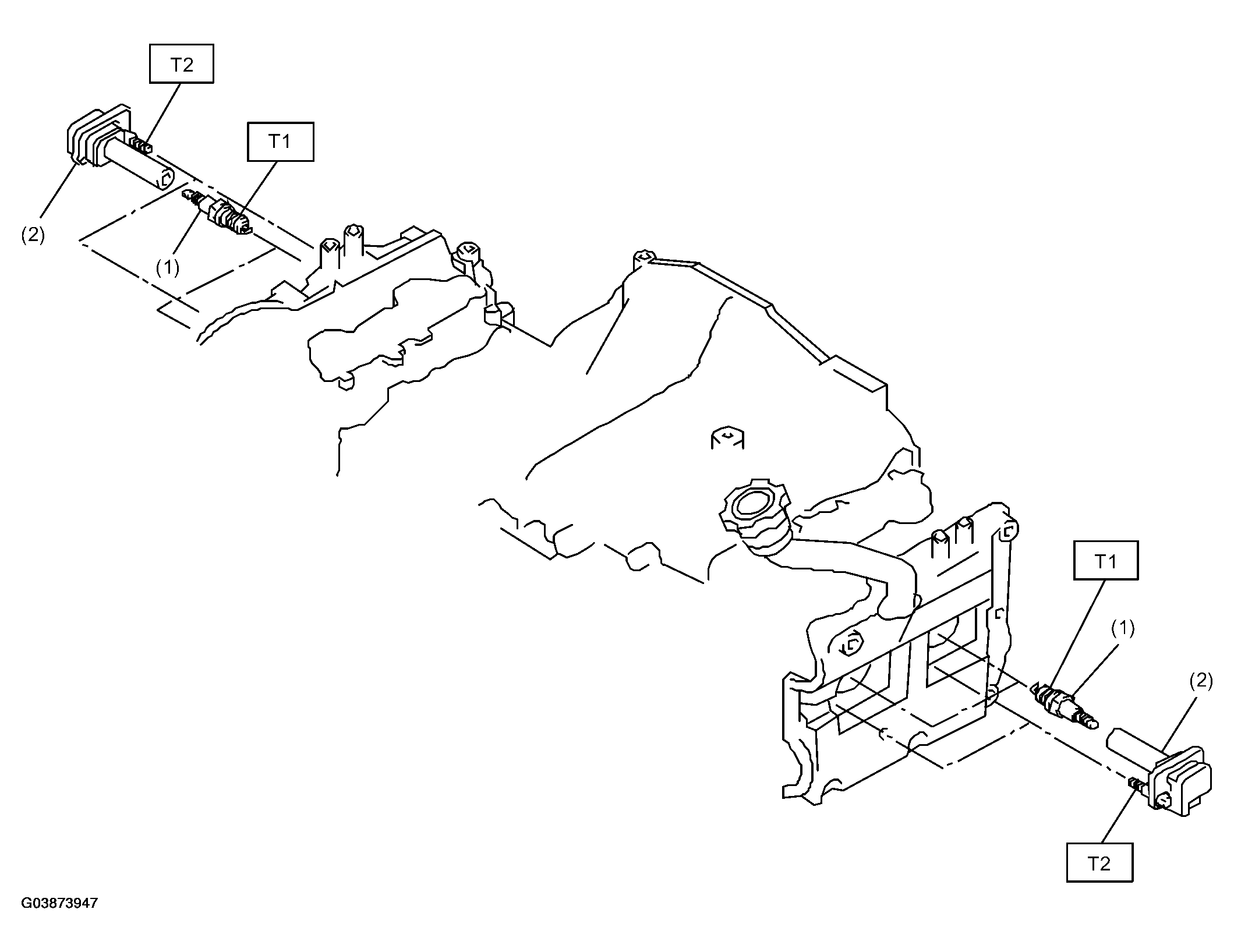

Fig 1: Identifying Ignition Components - 2.0L Turbo

G03873947

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Spark plug
Ignition coil and ignitor assembly
Tightening torque: Nm (kgfm, ft-lb)

T1: 21 (2.1, 15.2)

T2: 16 (1.6, 11.7)
