Engine (Diagnostics) - 2.0L
›
Diagnostics For Engine Starting Failure
›
Ignition Control System
›
Wiring Diagram
›
Notes
Ignition Control System: Wiring Diagram: Notes

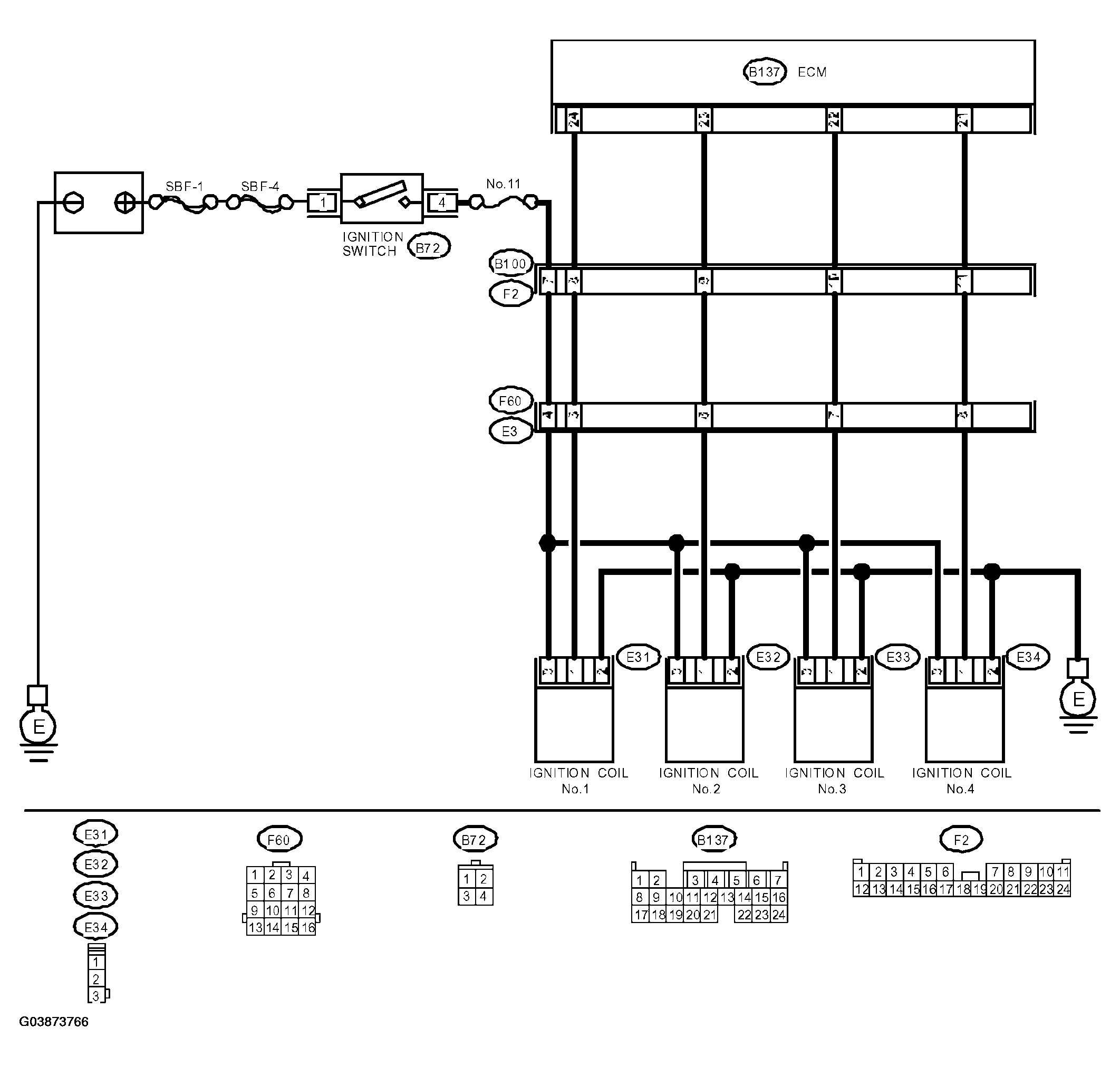

Fig 1: Wiring Diagram - Ignition Control System
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
