MPT Model

Take out the transfer clutch by lightly tapping the end of the rear drive shaft.

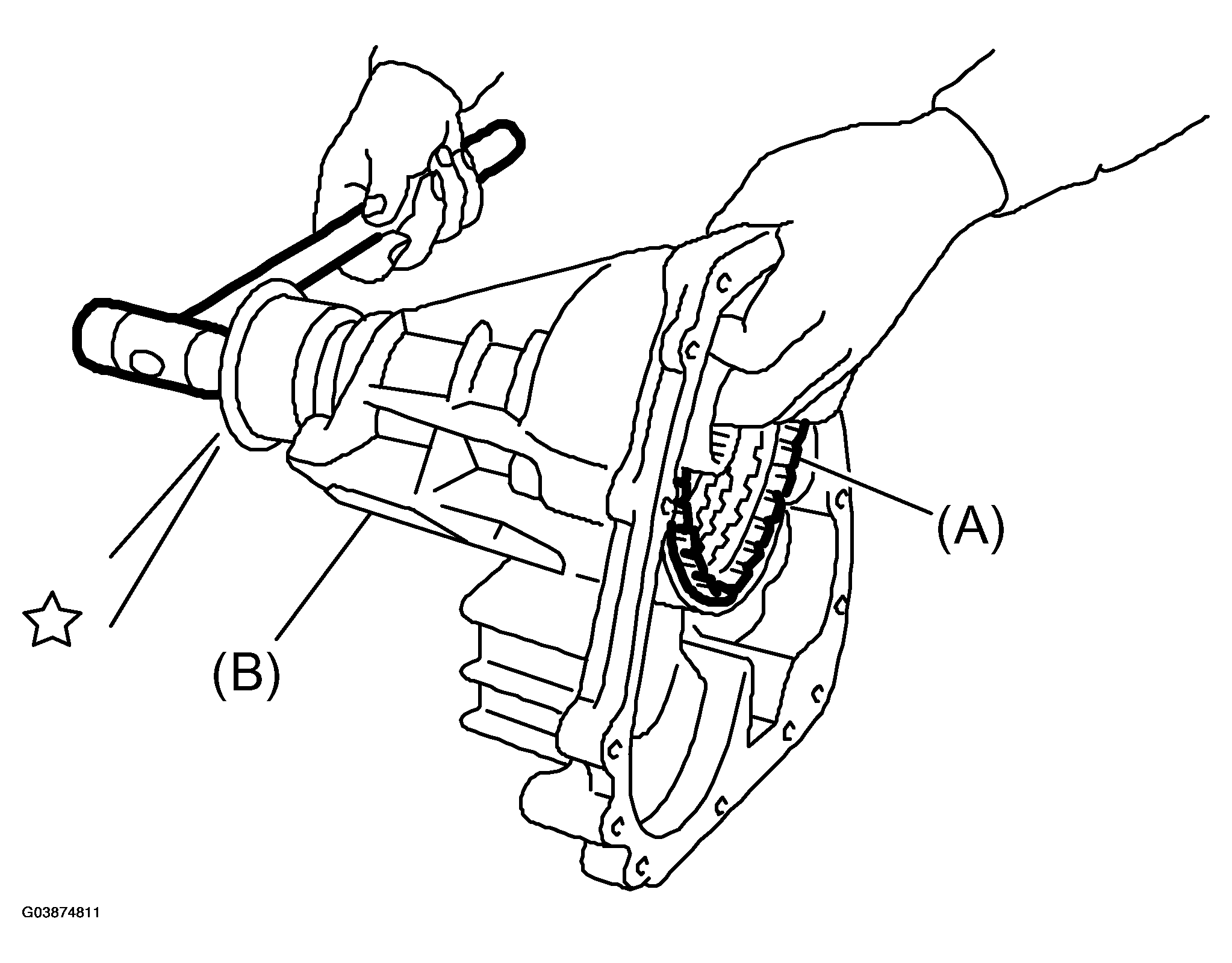

Fig 1: Tapping End Of Rear Drive Shaft

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Transfer clutch
2. Extension case

Remove the transmission clutch pipe without deforming pipe.

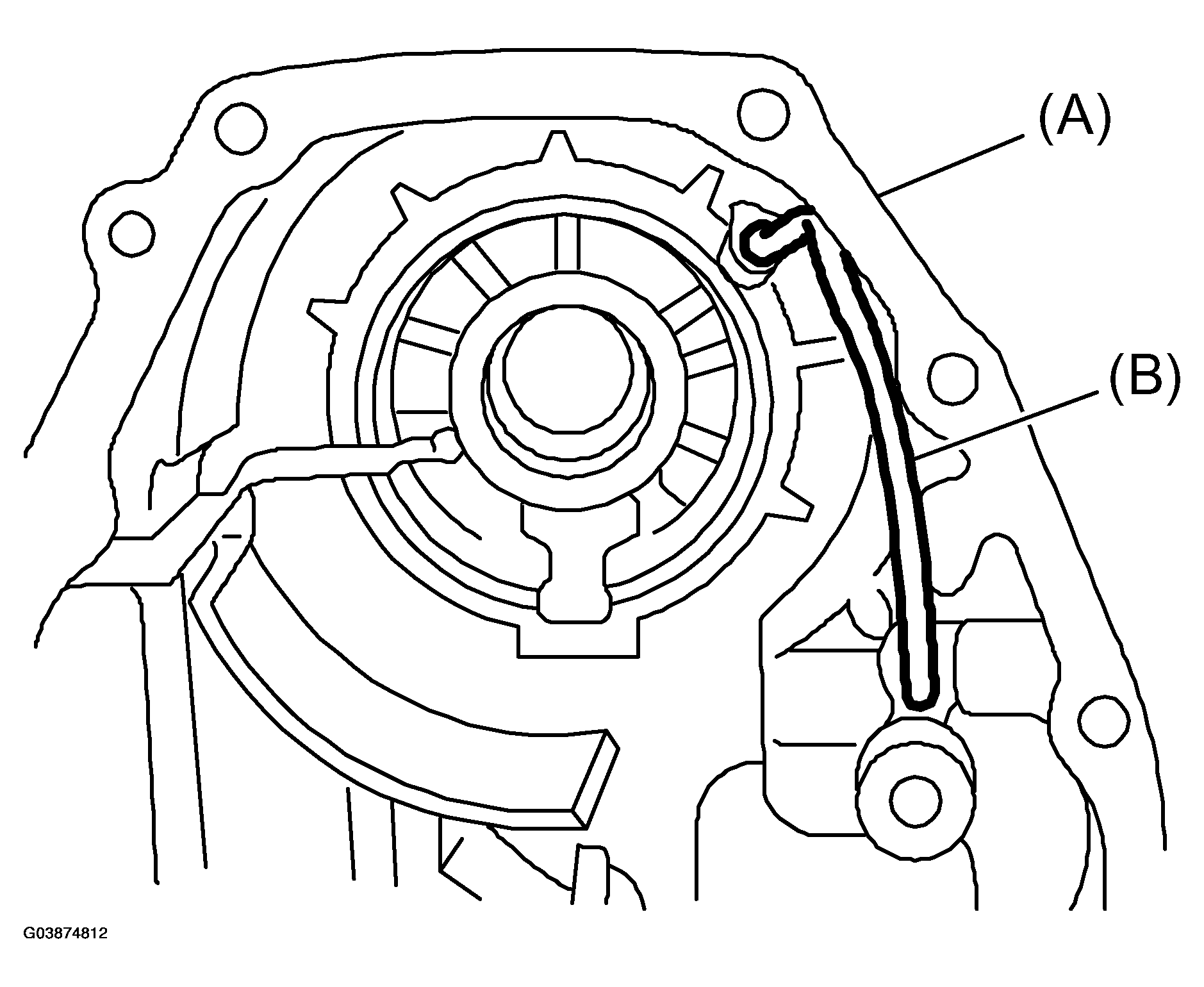

Fig 2: Removing Transmission Clutch Pipe

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Extension case
2. Transfer clutch pipe
