Adjustment - Replacement: Generator: Inspection: Stator

Continuity test

Inspect the stator coil for continuity between each end of the lead wires. If resistance is 1 MO or more, the lead wire is broken, and so replace the stator assembly.

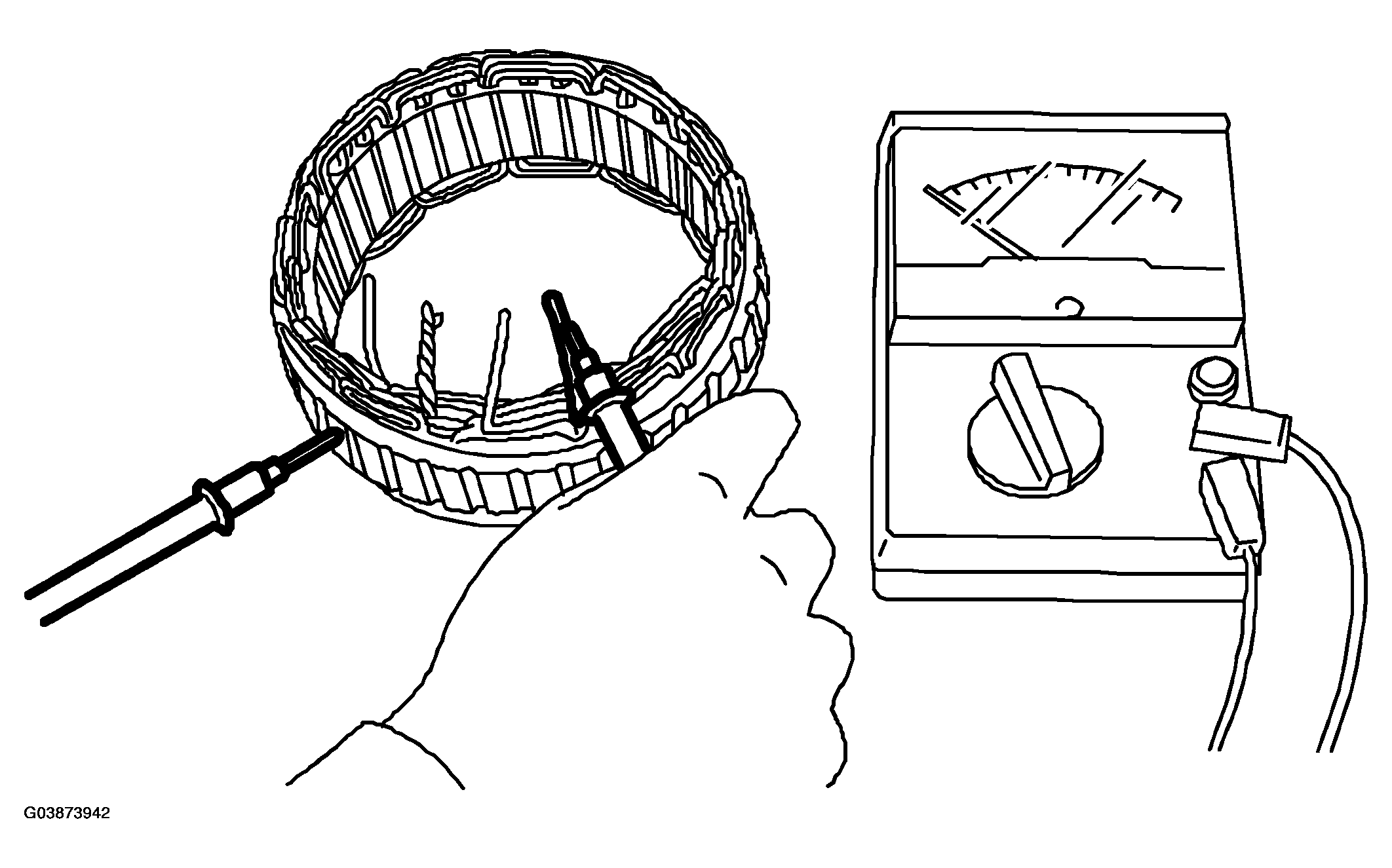

Fig 1: Inspecting Stator Coil For Continuity Between Each End Of Lead Wires

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Stator

Insulation test

Inspect the stator coil for continuity between stator core and each end of lead wire. If resistance is 1 O or less, the stator coil is grounded, and so replace the stator assembly.

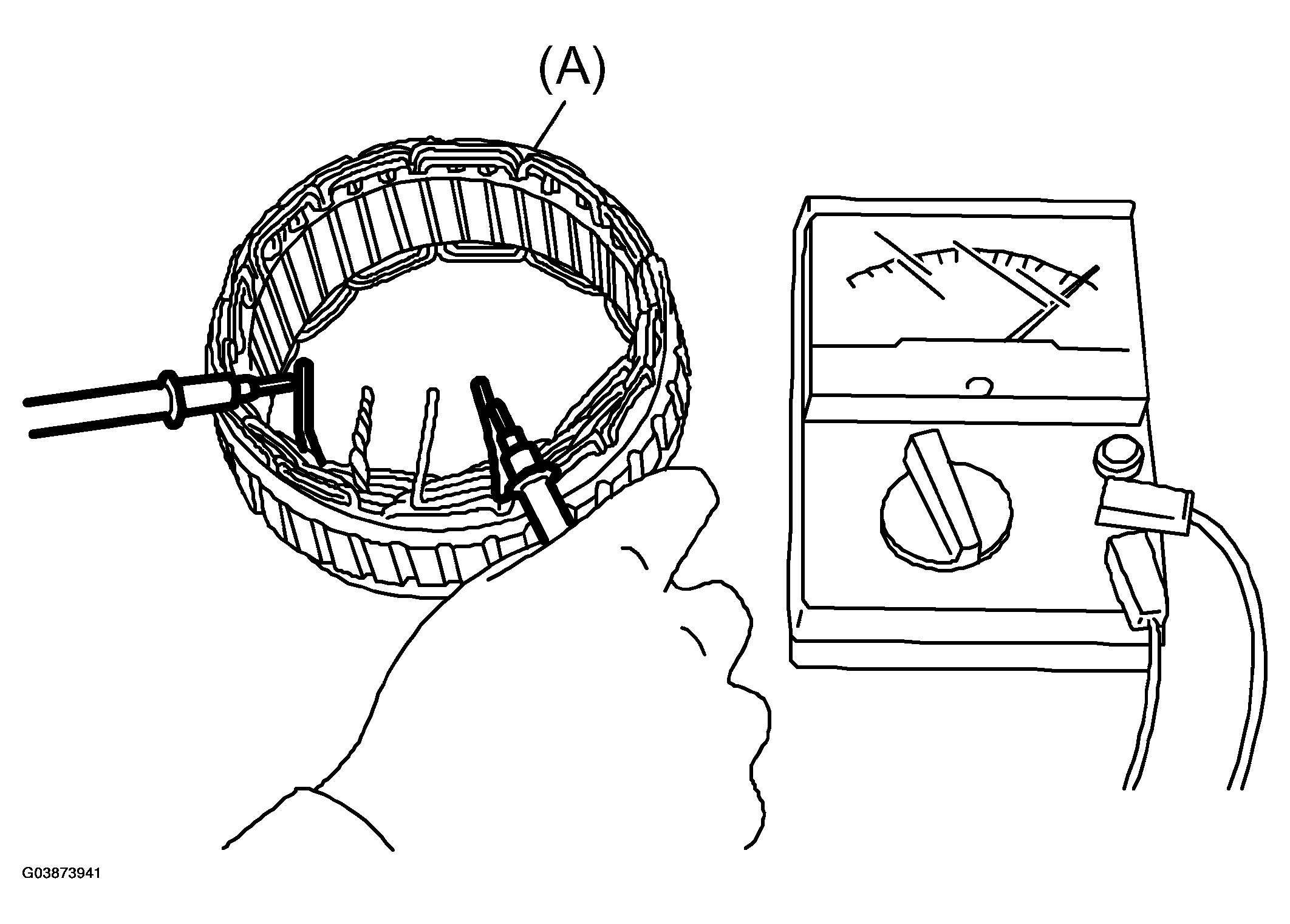

Fig 2: Inspecting Stator Coil For Continuity Between Stator Core And Each End Of Lead Wire

Courtesy of SAAB-SCANIA OF AMERICA, INC.
