PRETENSIONER Connector: Removal

Using a flat tip screwdriver, pry the push lock upward to unlock.

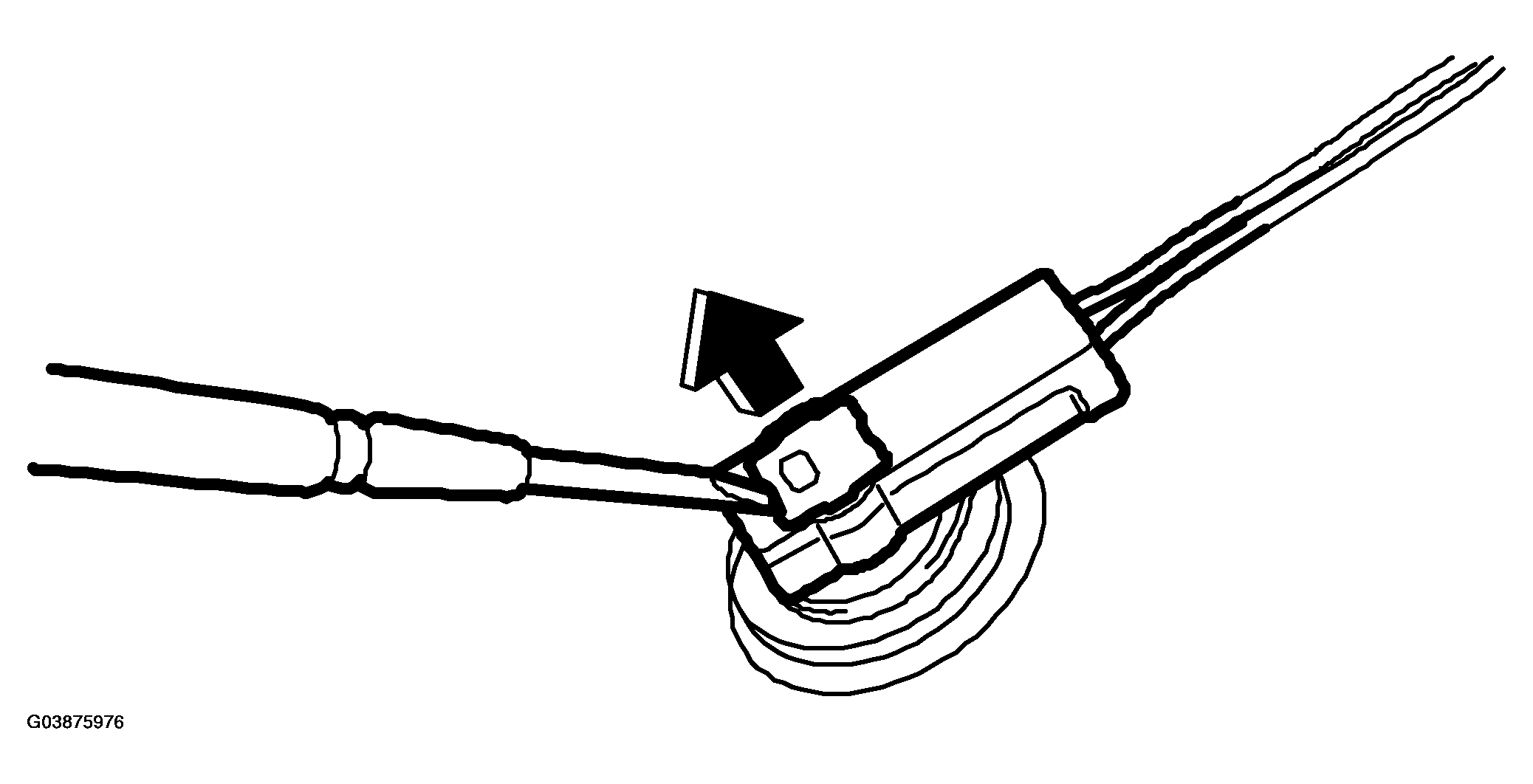

Fig 1: Prying Push Lock Upward Using Flat Tip Screwdriver

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Pull the connector to disconnect from retractor assembly.

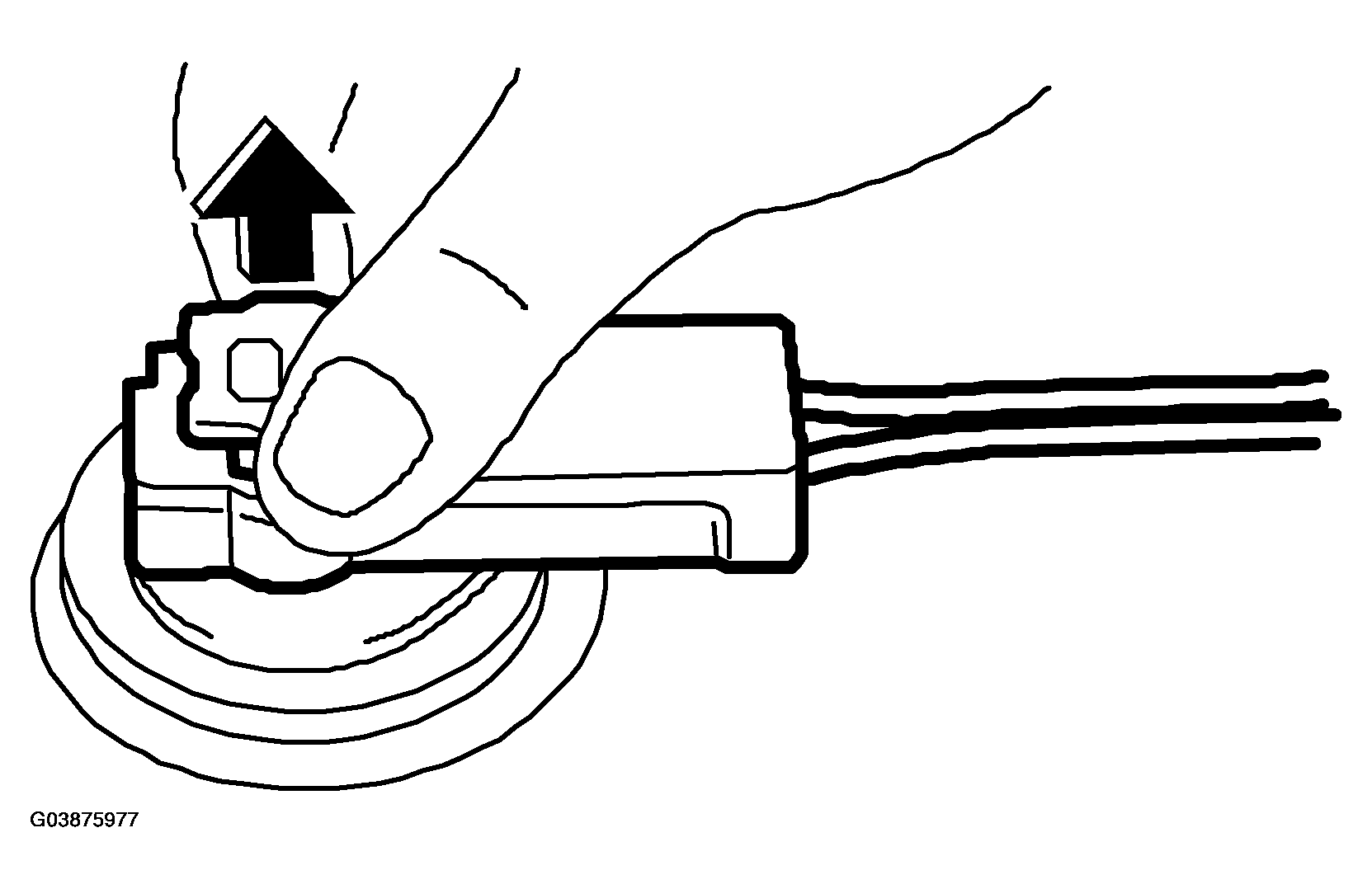

Fig 2: Disconnecting Connector From Retractor Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.
