Master Cylinder: Disassembly

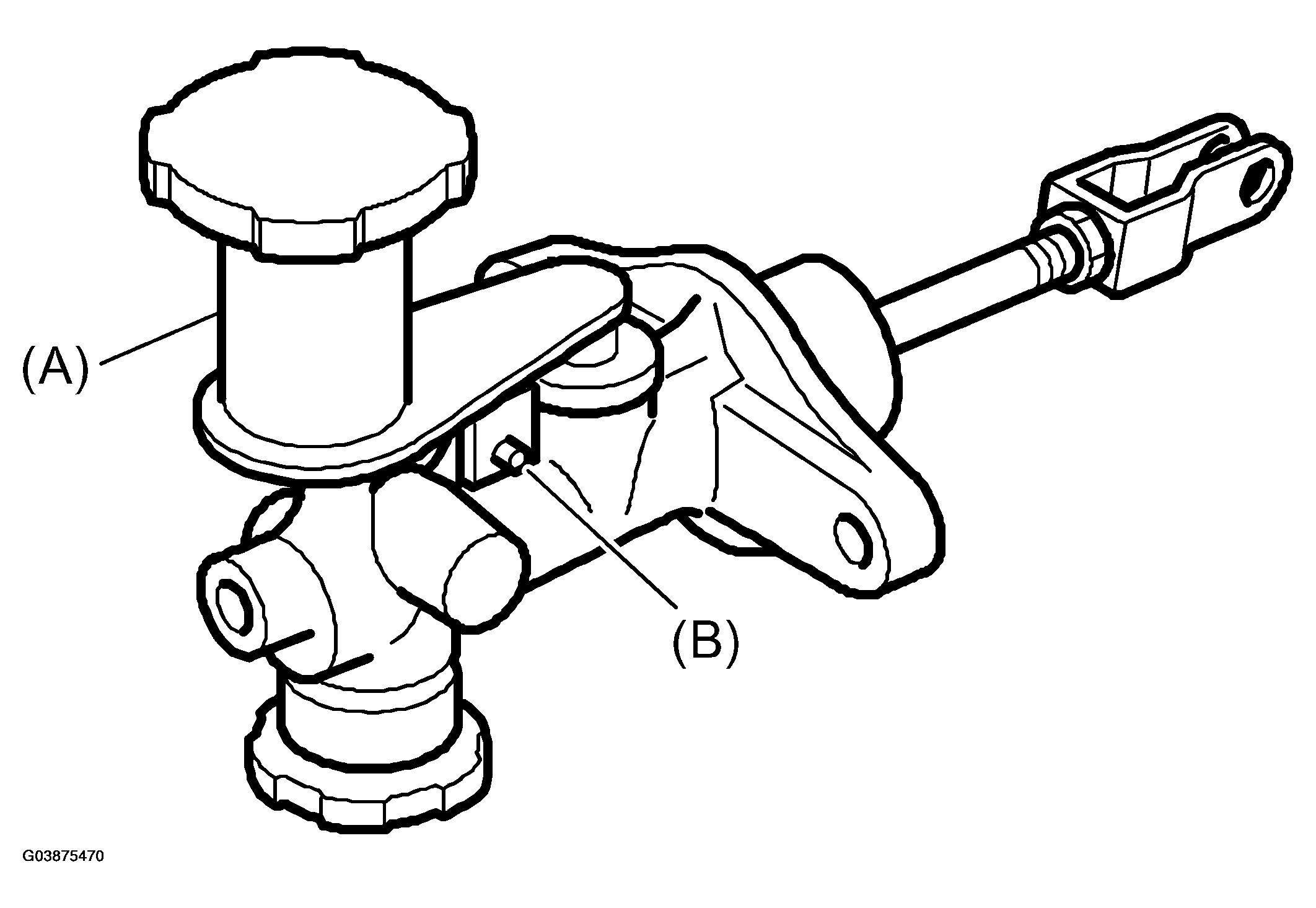

Remove the straight pin and reservoir tank.

Fig 1: Removing Straight Pin And Reservoir Tank

Courtesy of SAAB-SCANIA OF AMERICA, INC.

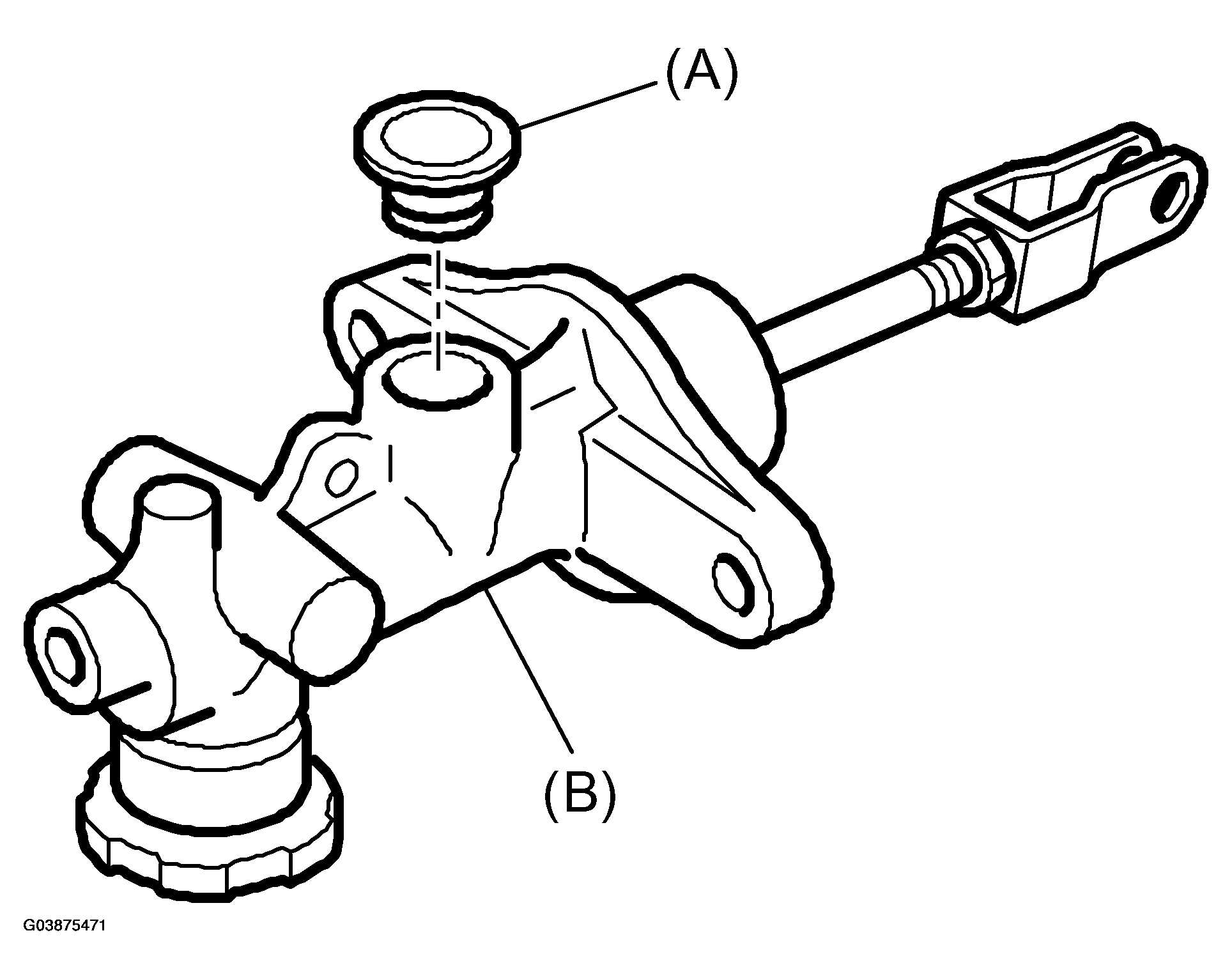

Remove the oil seal.

Fig 2: Removing Oil Seal

Courtesy of SAAB-SCANIA OF AMERICA, INC.

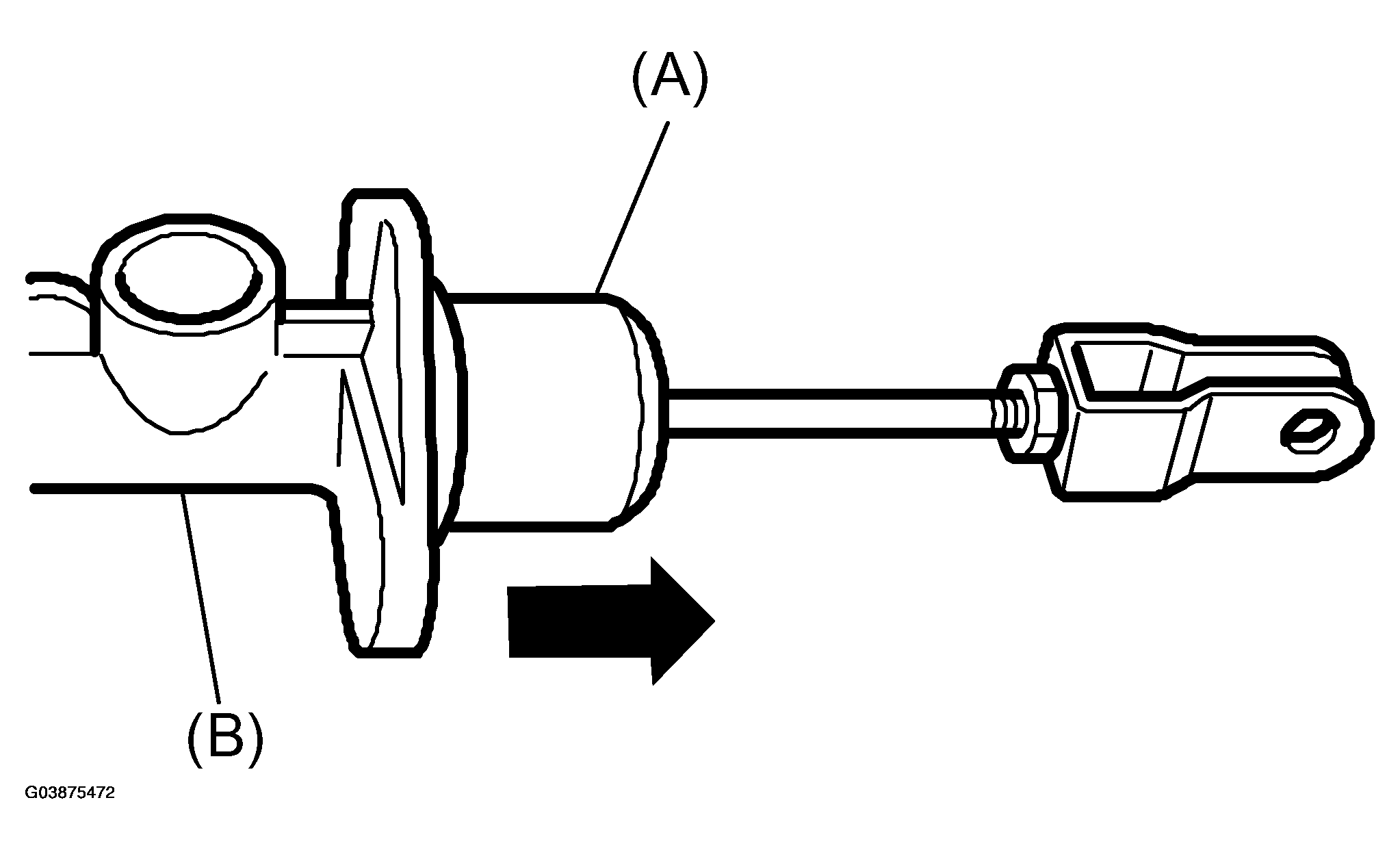

Move the cylinder boot backward.

Fig 3: Moving Cylinder Boot Backward

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the snap ring.

IMPORTANT: Be careful when removing the snap ring to prevent the rod, washer, piston and return spring from flying out.

Remove the clutch damper.
