Fixed Glass

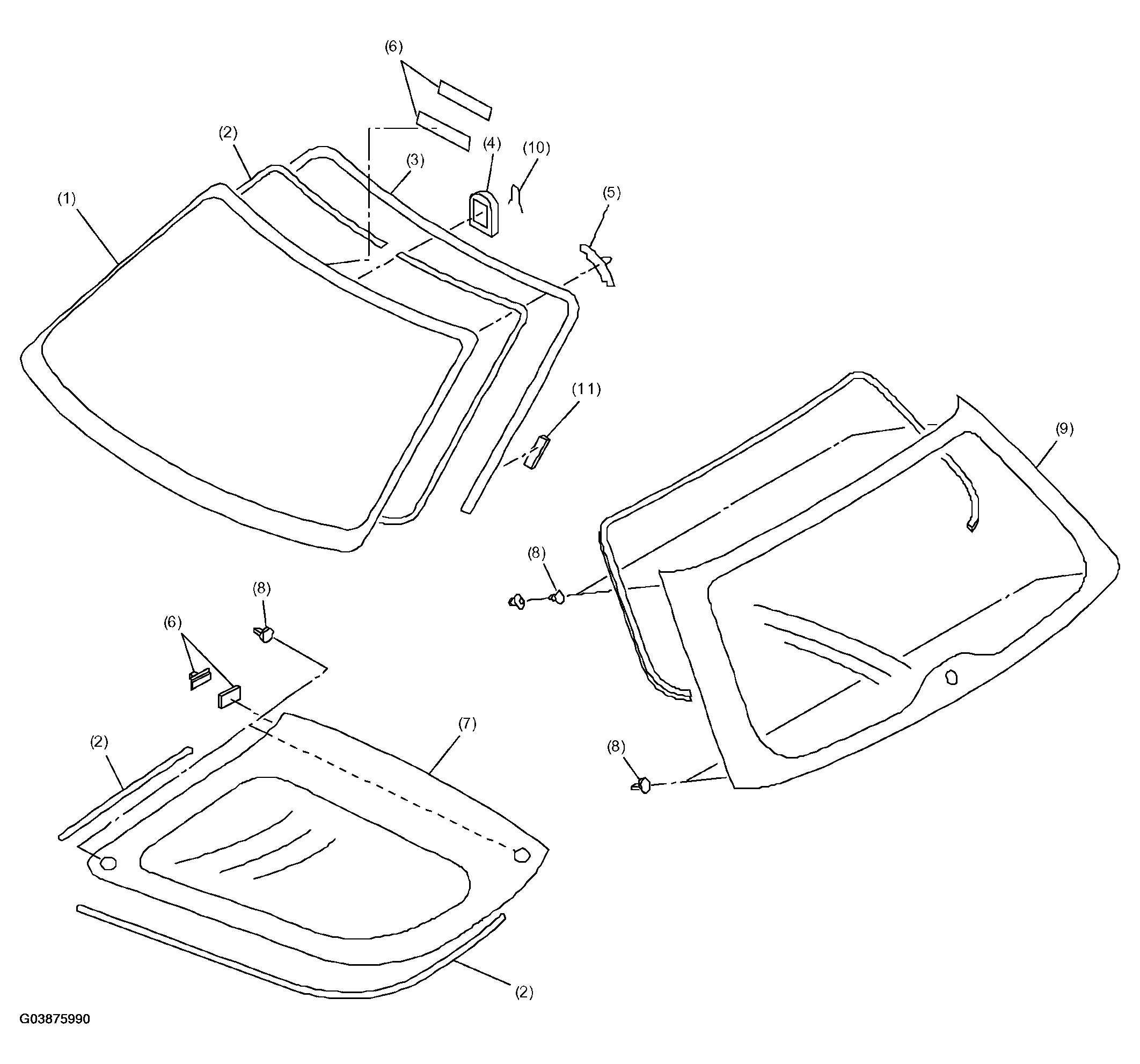

Fig 1: Identifying Fixed Glass Component
G03875990Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Windshield glass
  2. Dam rubber
  3. Molding
  4. Rearview mirror mount
  5. Locating pin
  6. Fastener
  7. Rear quarter glass
  8. Locating pin
  9. Glass
  10. Spring
  11. Seal
