Component Views

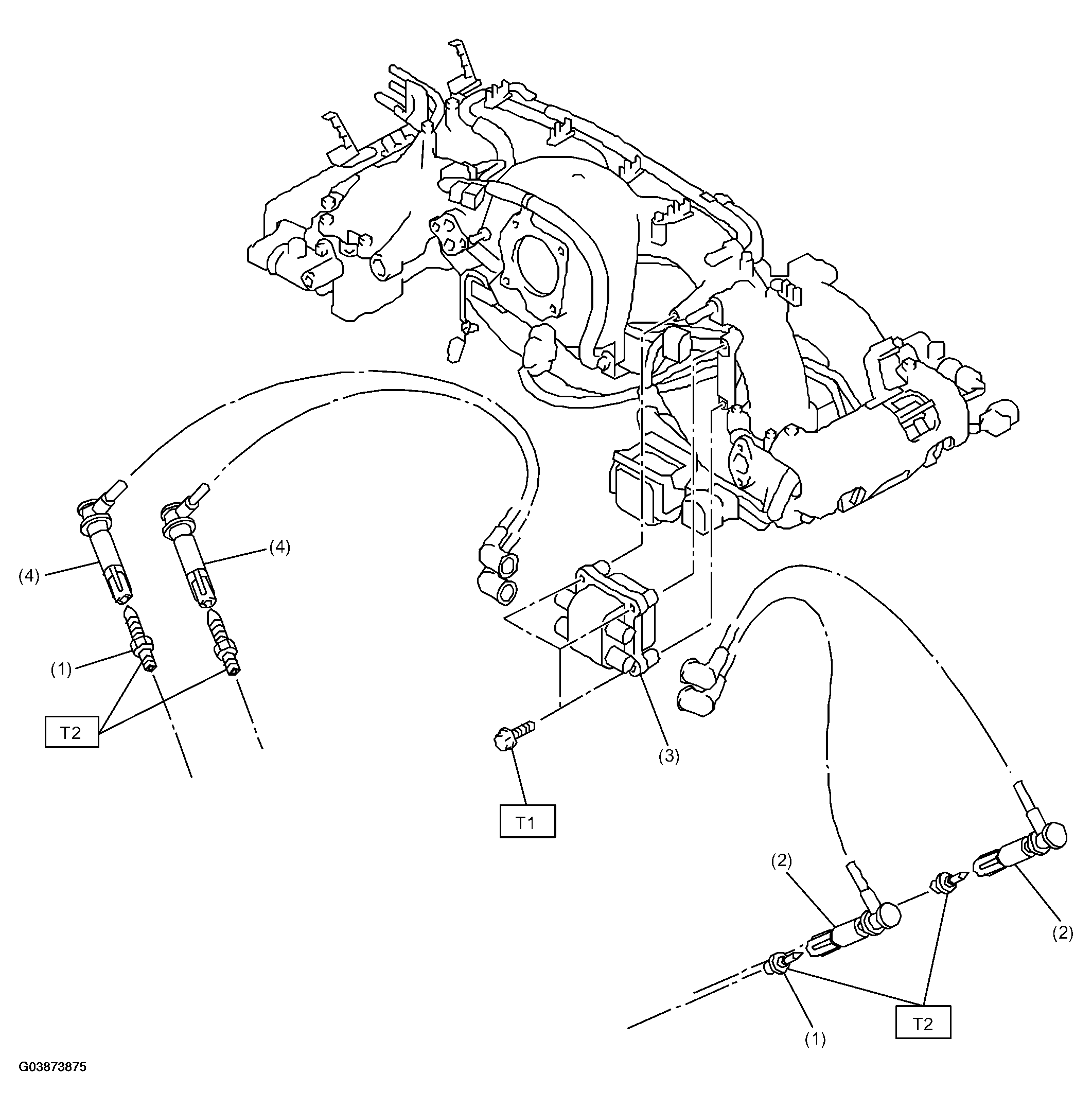

Fig 1: Identifying Ignition Components - 2.5L

G03873875

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Spark plug
Spark plug cord (#1, #3)
Ignition coil and ignitor assembly
Spark plug cord (#2, #4)
Tightening torque: Nm (kgfm, ft-lb)

T1: 6.4 (0.65, 4.7)

T2: 21 (2.1, 15.2)
