Front Seat Belt

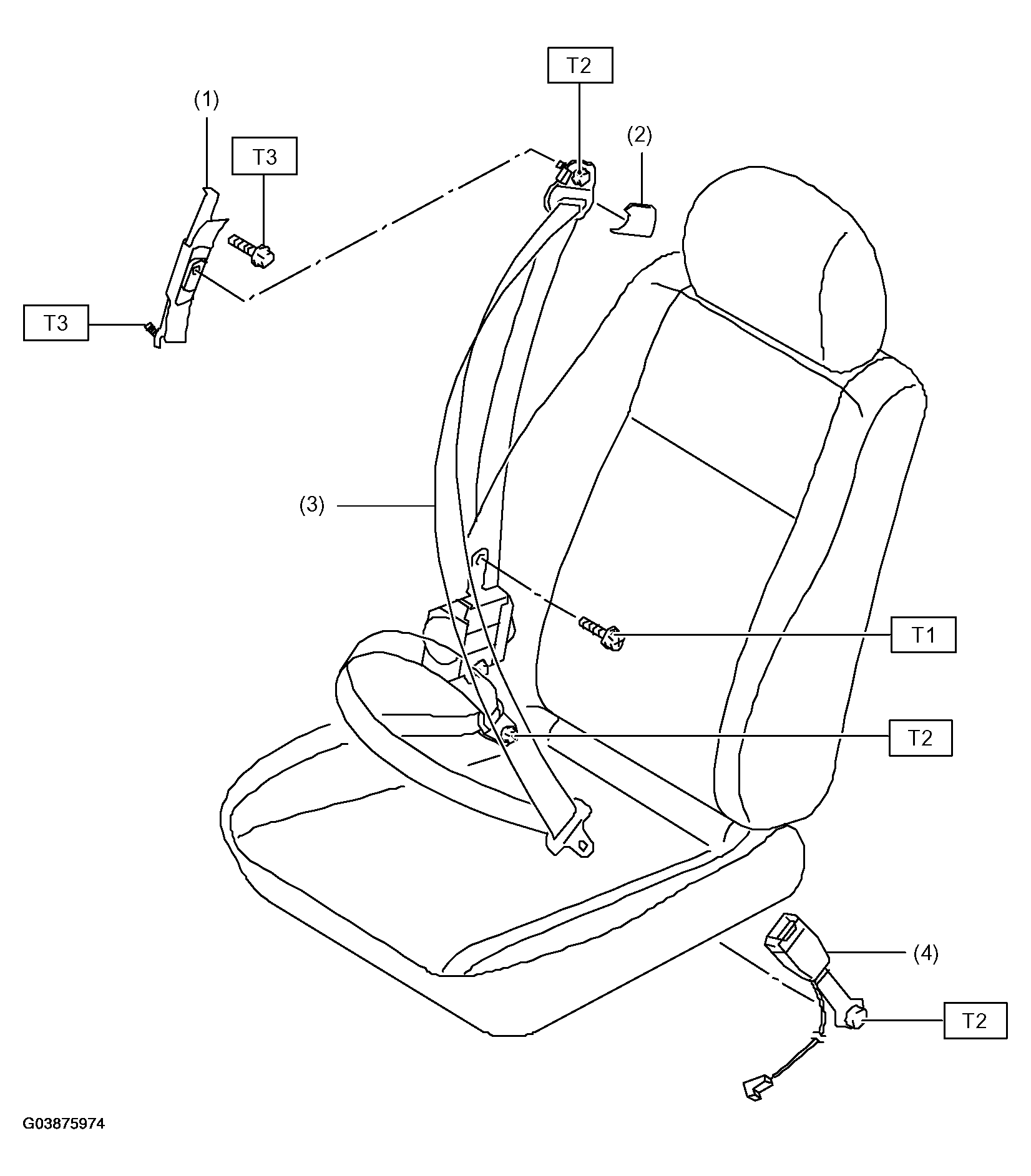

Fig 1: Exploded View Of Front Seat Belt Components
G03875974Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Adjuster anchor ASSY
  2. Anchor cover
  3. Outer seat belt ASSY
  4. Inner seat belt ASSY

    Tightening torque: Nm (kgf-m, ft-lb)

    T1: 7.5 (0.76, 5.5)

    T2: 30 (3.1, 22)

    T3: 53 (5.4, 39)
