Drive Pinion Shaft Assembly: Disassembly

Straighten the staked portion of the lock nut, and remove the lock nut while locking the rear spline portion of the shaft with ST1 and ST2. Then pull off the drive pinion collar.

ST1 32005120 HOLDER

ST2 32005154 WRENCH

ST3 32005153 ADAPTER

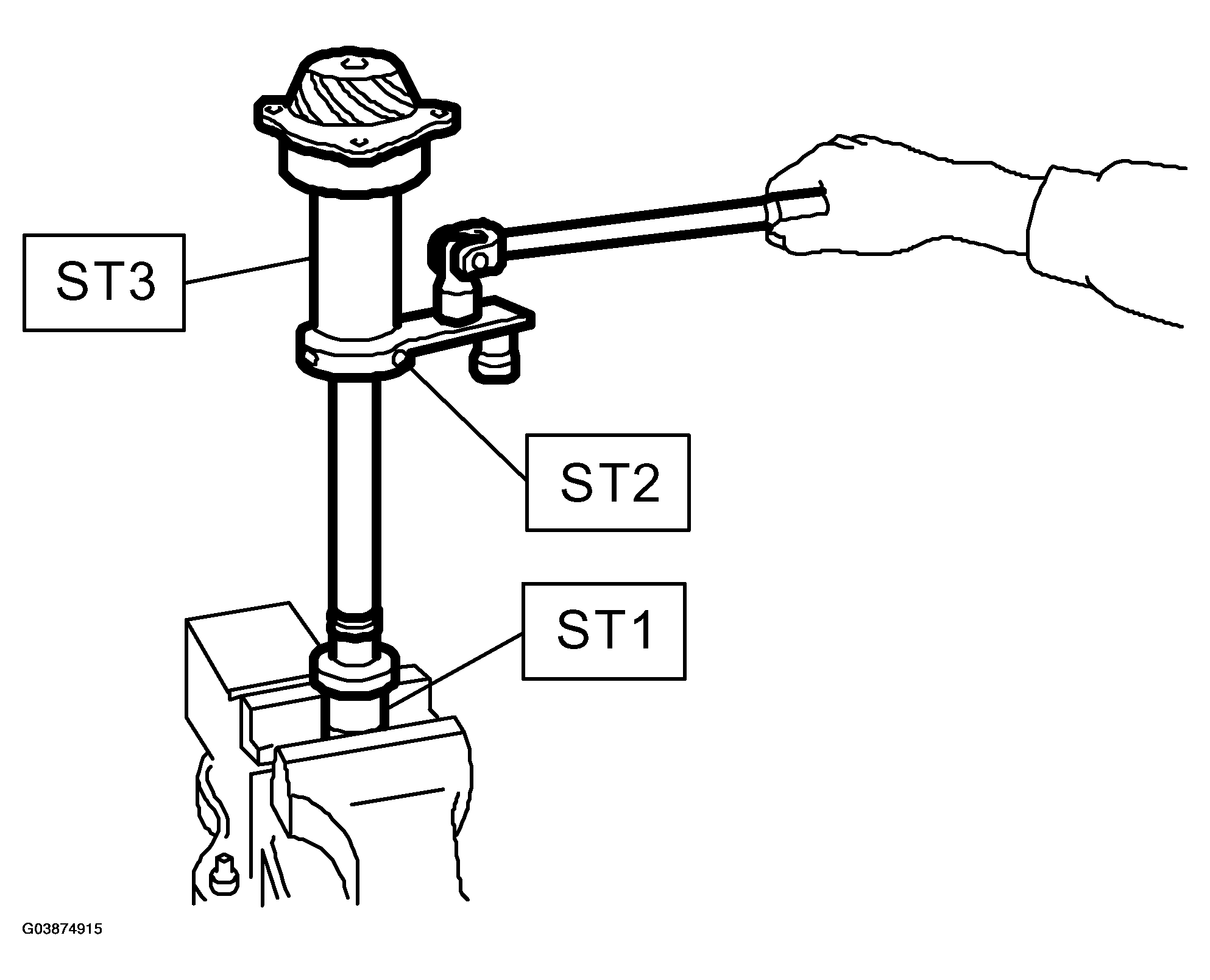

Fig 1: Removing Lock Nut

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the O-ring.

Using a press, separate the rear roller bearing and outer race from the shaft.

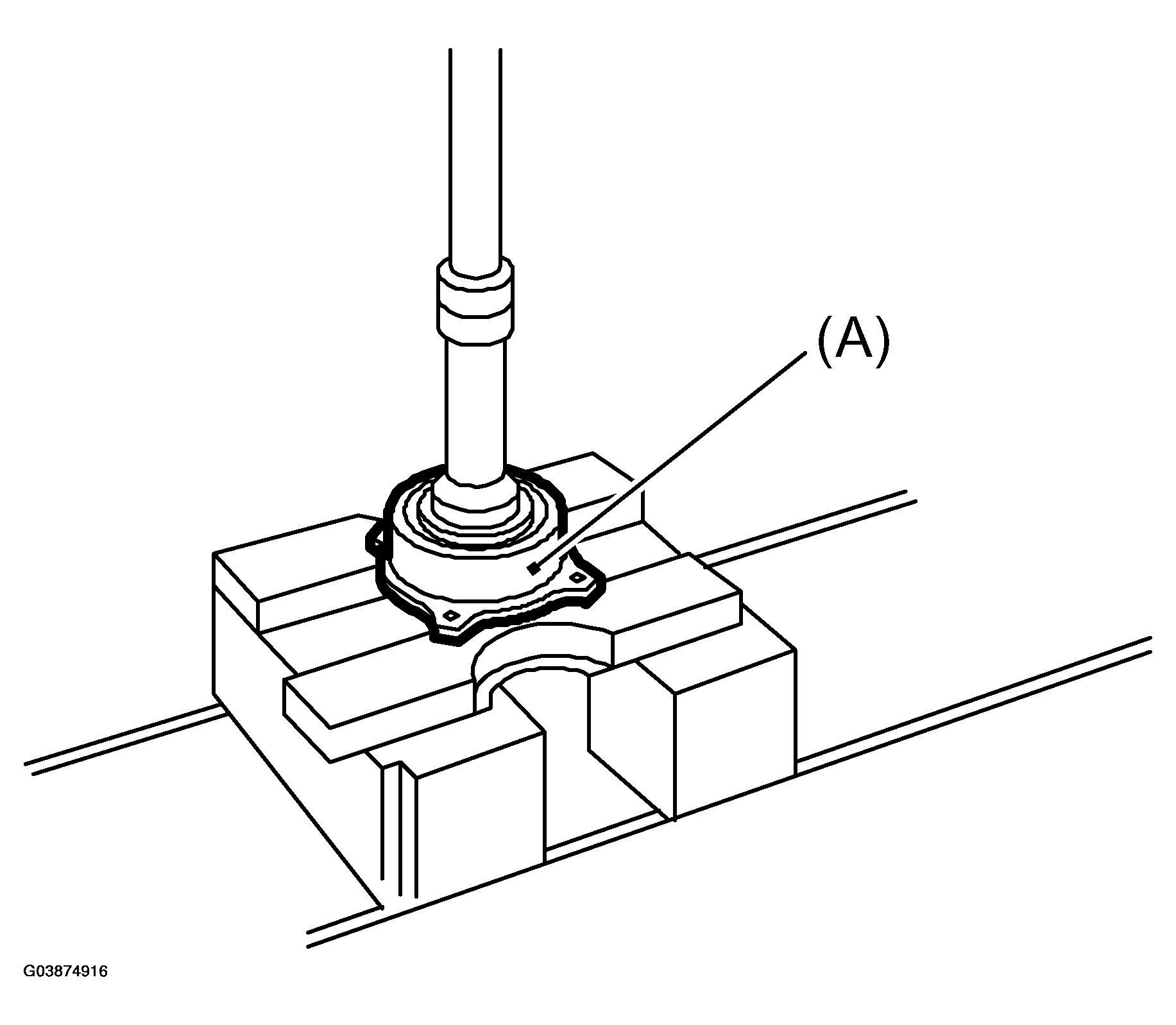

Fig 2: Separating Rear Roller Bearing And Outer Race

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Outer race

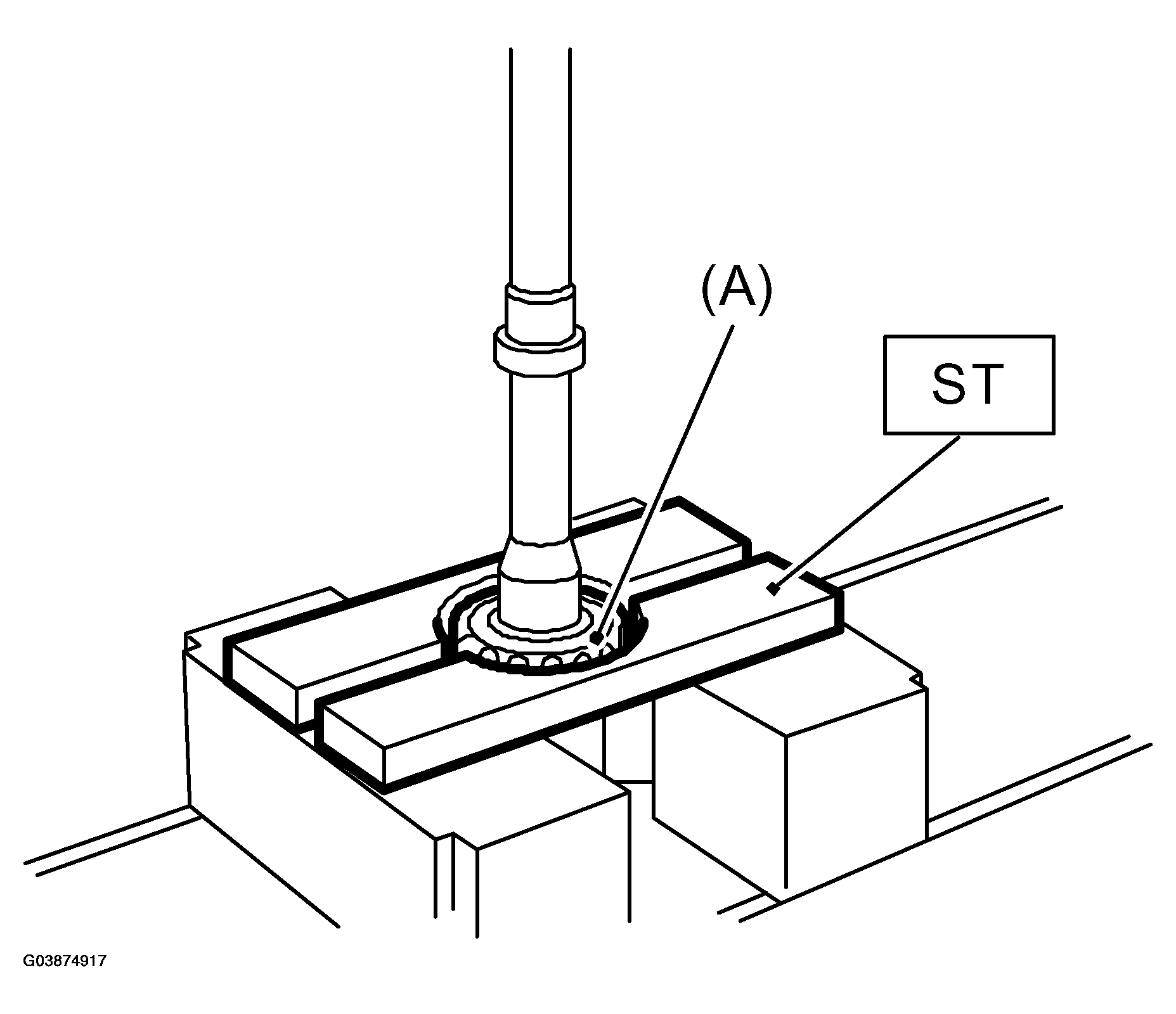

Using a press and ST, separate the front roller bearing from the shaft.

ST 32005108 REPLACER

Fig 3: Separating Front Roller Bearing From Shaft ST 32005108 Replacer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Front roller bearing
