Extension Case Oil Seal: Replacement
Clean the transmission exterior.
Drain the ATF completely.
NOTE:
- Tighten the ATF drain plug after draining the ATF.
- Use a new gasket.
Tightening torque:
25 Nm (2.5 kgf-m, 18.1 ft-lb)

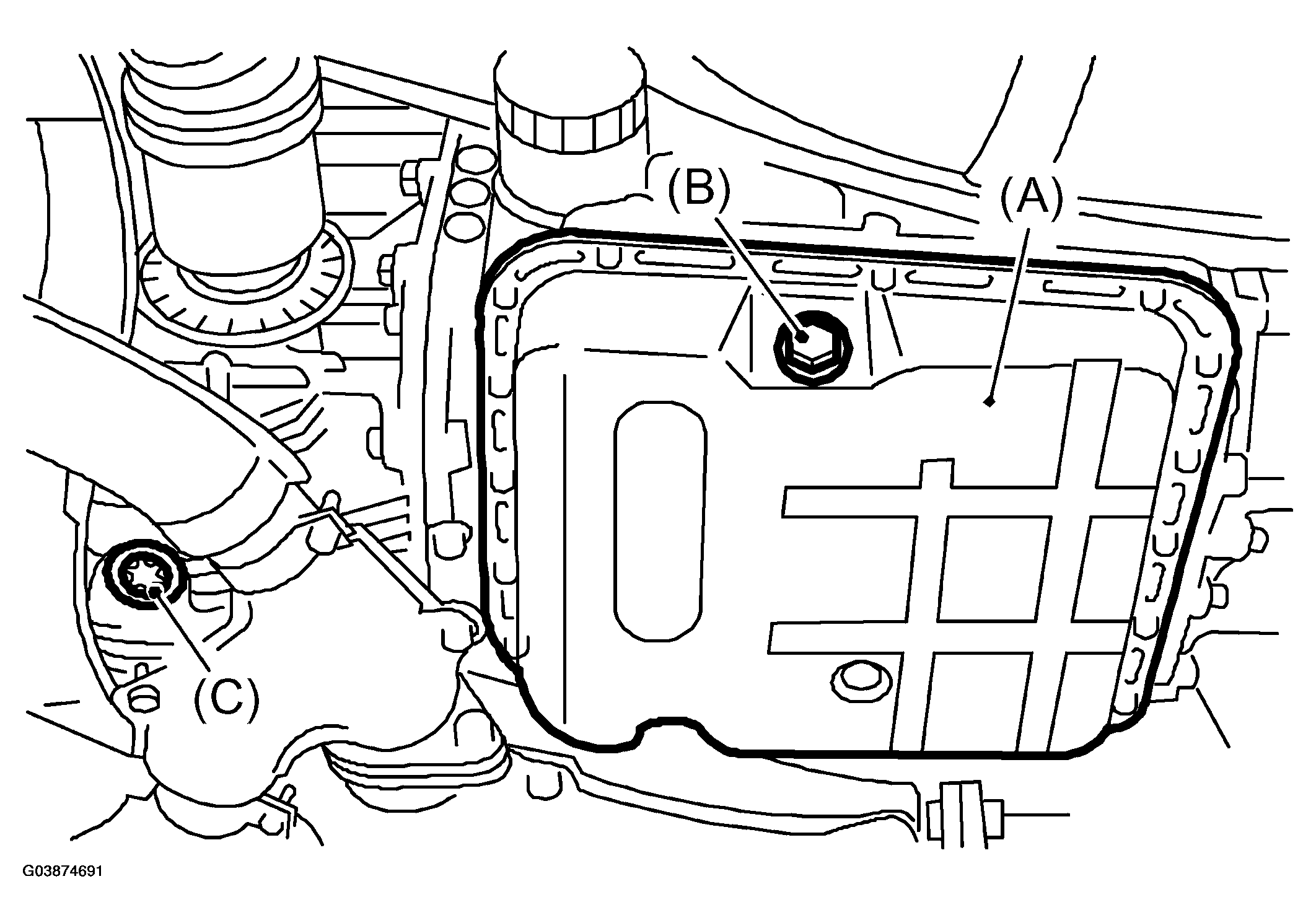

- Oil pan
- Drain plug (ATF)
- Differential gear oil drain plug
Remove the rear exhaust pipe and muffler.
Saab 9-2X 2.5i Linear
Saab 9-2X 2.0T Aero
Remove the heat shield cover. (If equipped)
Remove the propeller shaft.
Using the ST, remove the oil seal.
ST 32005071 PULLER ASSY
Using the ST, install the oil seal.
ST 32005087 INSTALLER
Install the propeller shaft.
Install the heat shield cover. (If equipped)
Install the rear exhaust pipe and muffler.
Saab 9-2X 2.5i Linear
Saab 9-2X 2.0T Aero
Pour ATF and check the ATF level.
