Oil Change Pipe: Removal

Remove the air intake chamber. (Saab 9-2X 2.5i Linear)

Remove intercooler. (Saab 9-2X 2.0T Aero)

Remove the oil charge pipe, and remove the O-ring from the flange face.

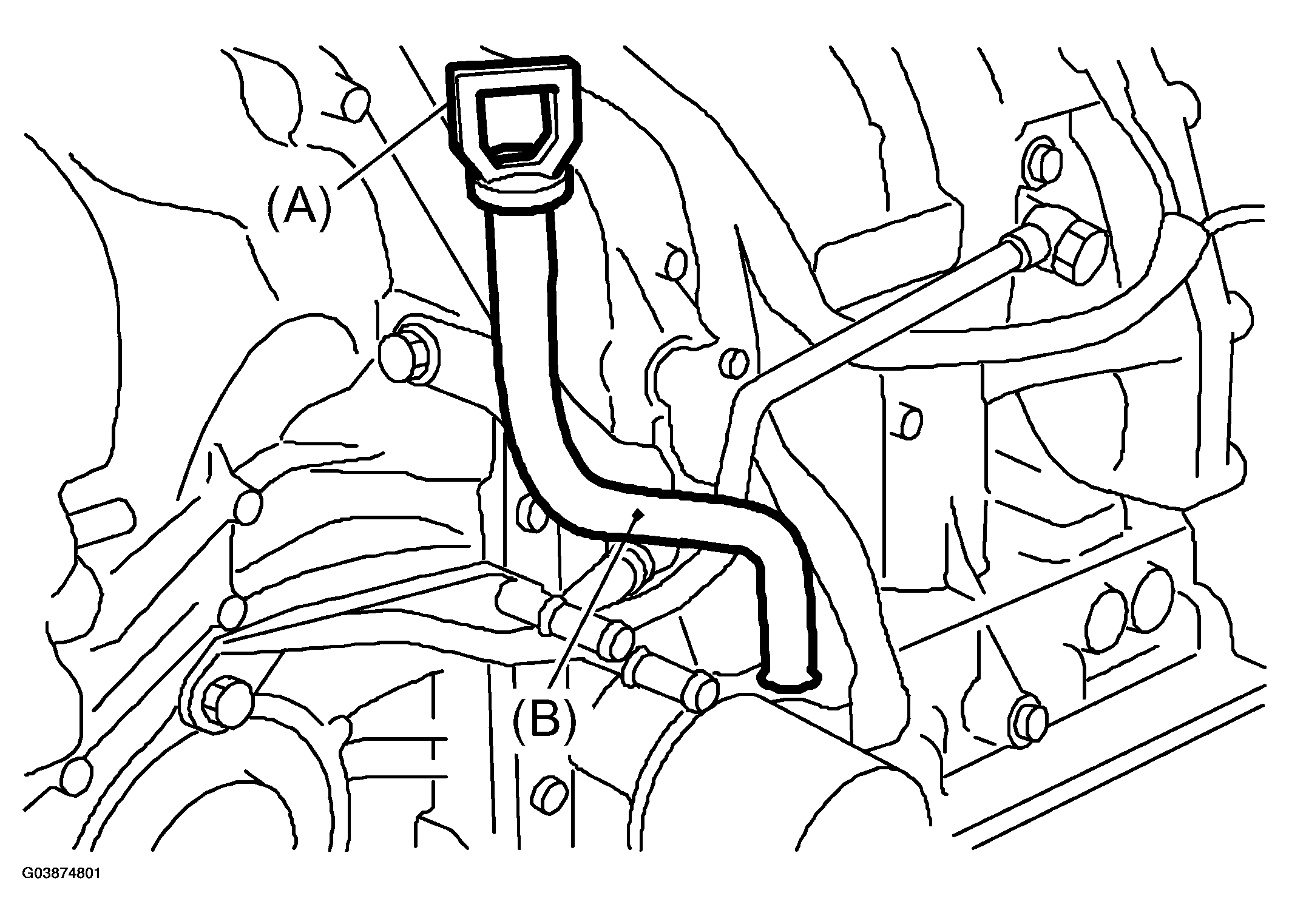

Fig 1: Removing Oil Charge Pipe

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Oil level gauge
2. Oil charge pipe
