Rear Drive Shaft: Disassembly

Using a press, remove revolution gear.

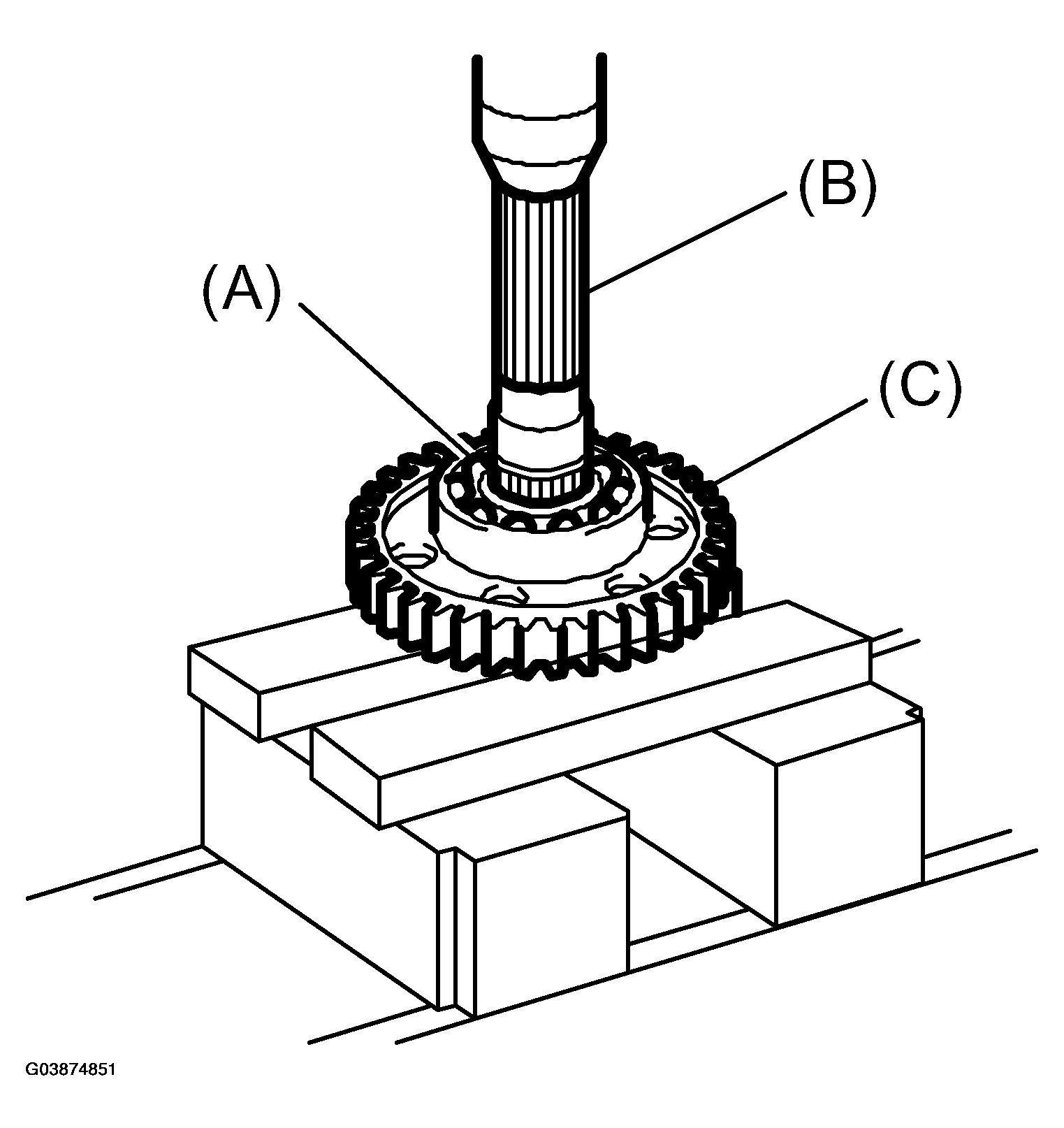

Fig 1: Removing Revolution Gear

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Revolution gear

Using a press, remove the front and rear side ball bearings and clutch hub.

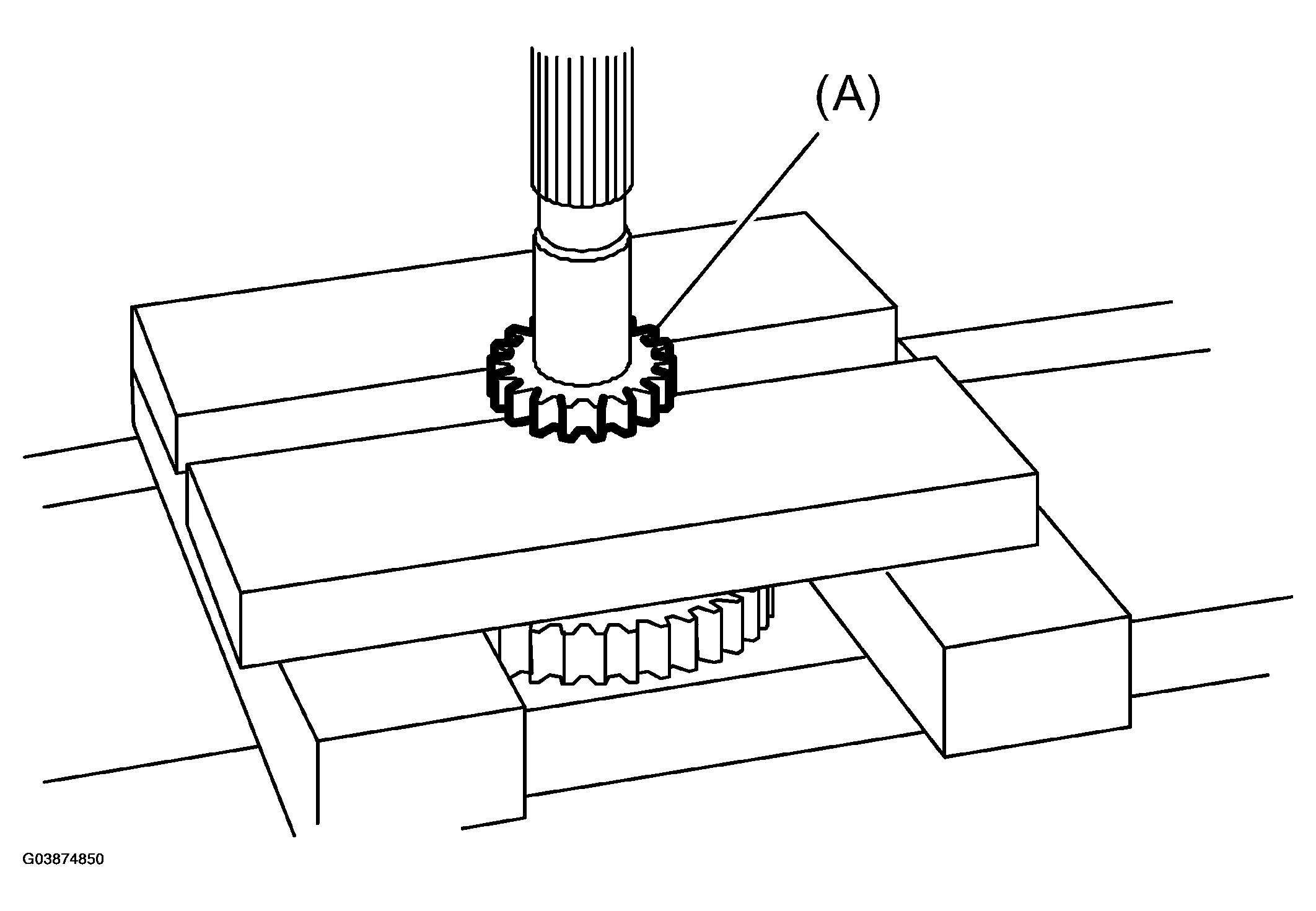

Fig 2: Removing Front And Rear Side Ball Bearings And Clutch Hub

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Rear ball bearing
2. Rear driveshaft
3. Clutch hub
