Reduction Drive Gear: Disassembly

Take out the seal rings.

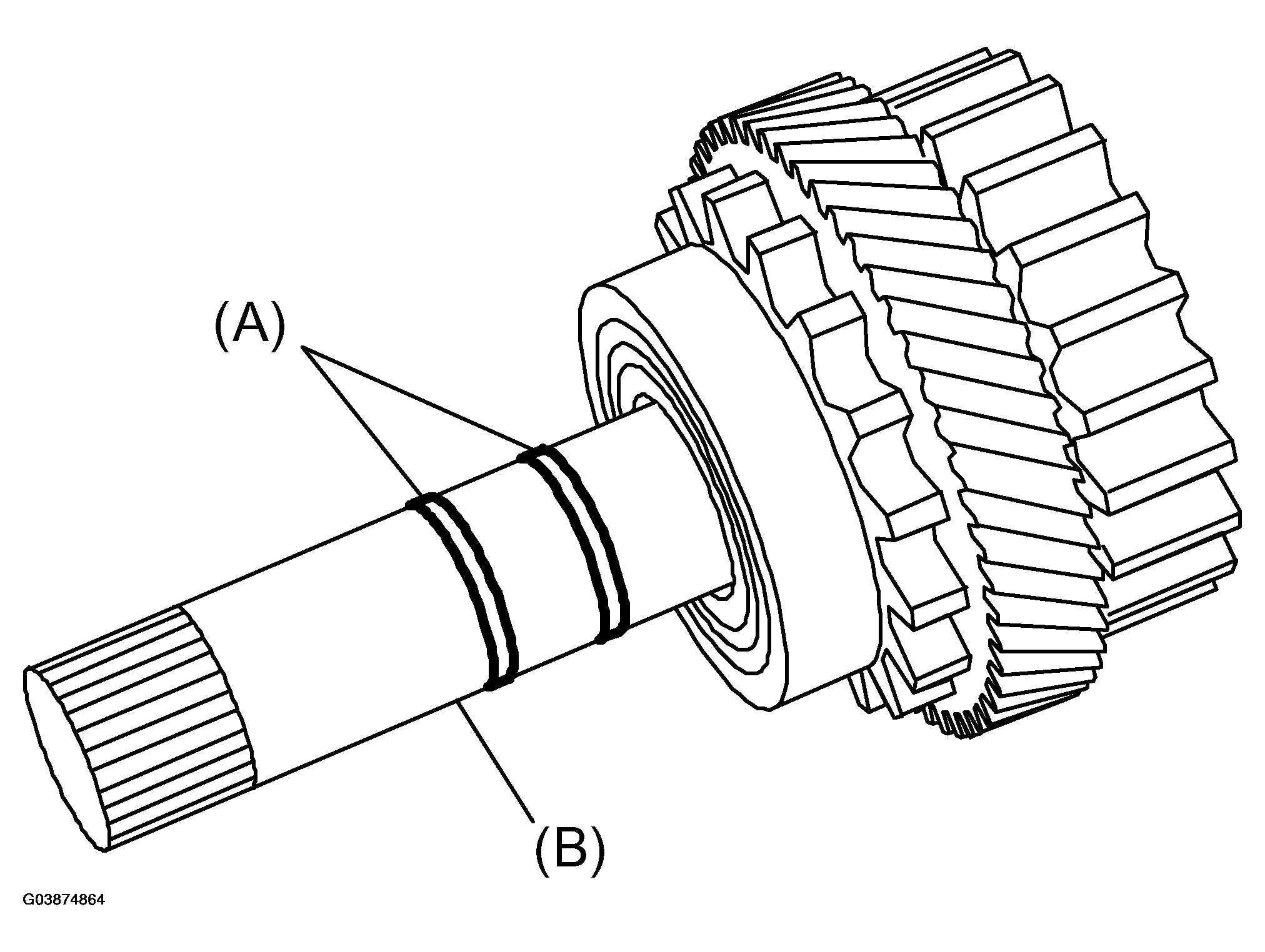

Fig 1: Removing Seal Ring

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Using ST, remove the ball bearing.

ST 32005091 REMOVER

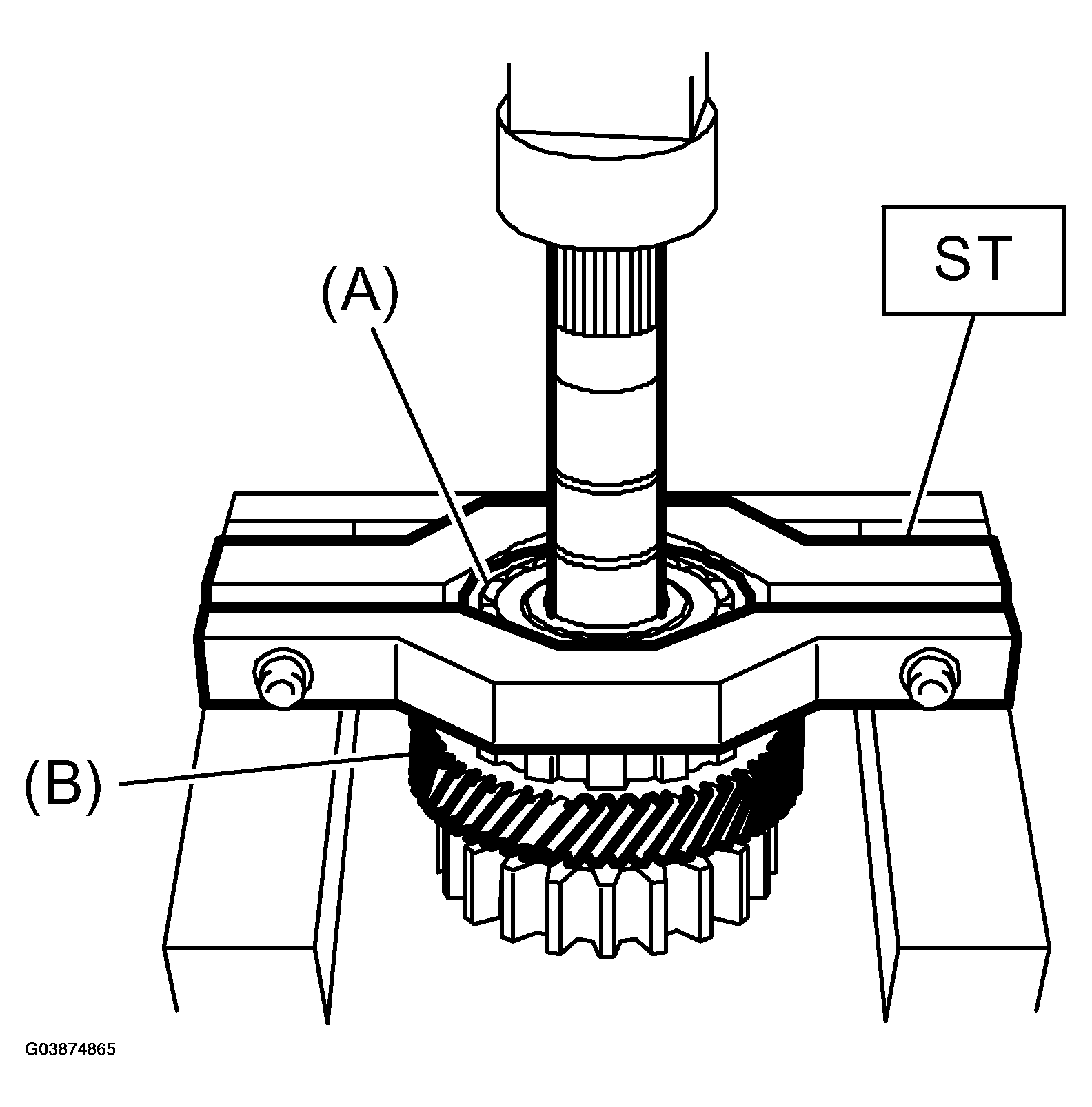

Fig 2: Removing Ball Bearing Using ST 32005091 Remover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Using a press, remove the reduction drive gear.

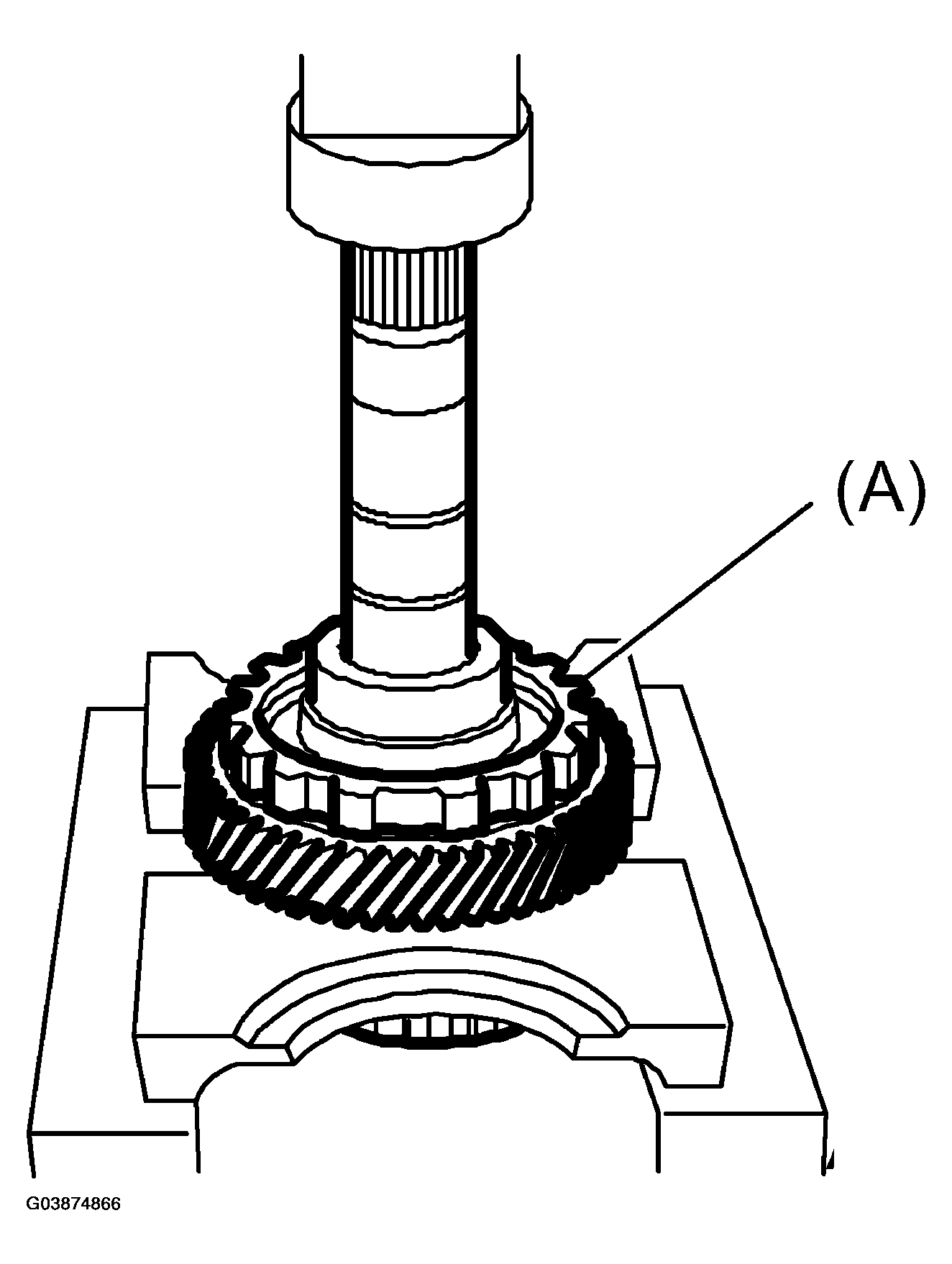

Fig 3: Removing Reduction Drive Gear

Courtesy of SAAB-SCANIA OF AMERICA, INC.
