Reduction Drive Gear: Removal

Remove the transmission assembly from the vehicle.

Remove rear vehicle speed sensor, and separate the transmission case and extension case.

Remove the reduction driven gear.

Using ST, extract the reduction drive gear.

ST1 32005145 PULLER SET

ST2 32005174 PULLER SET

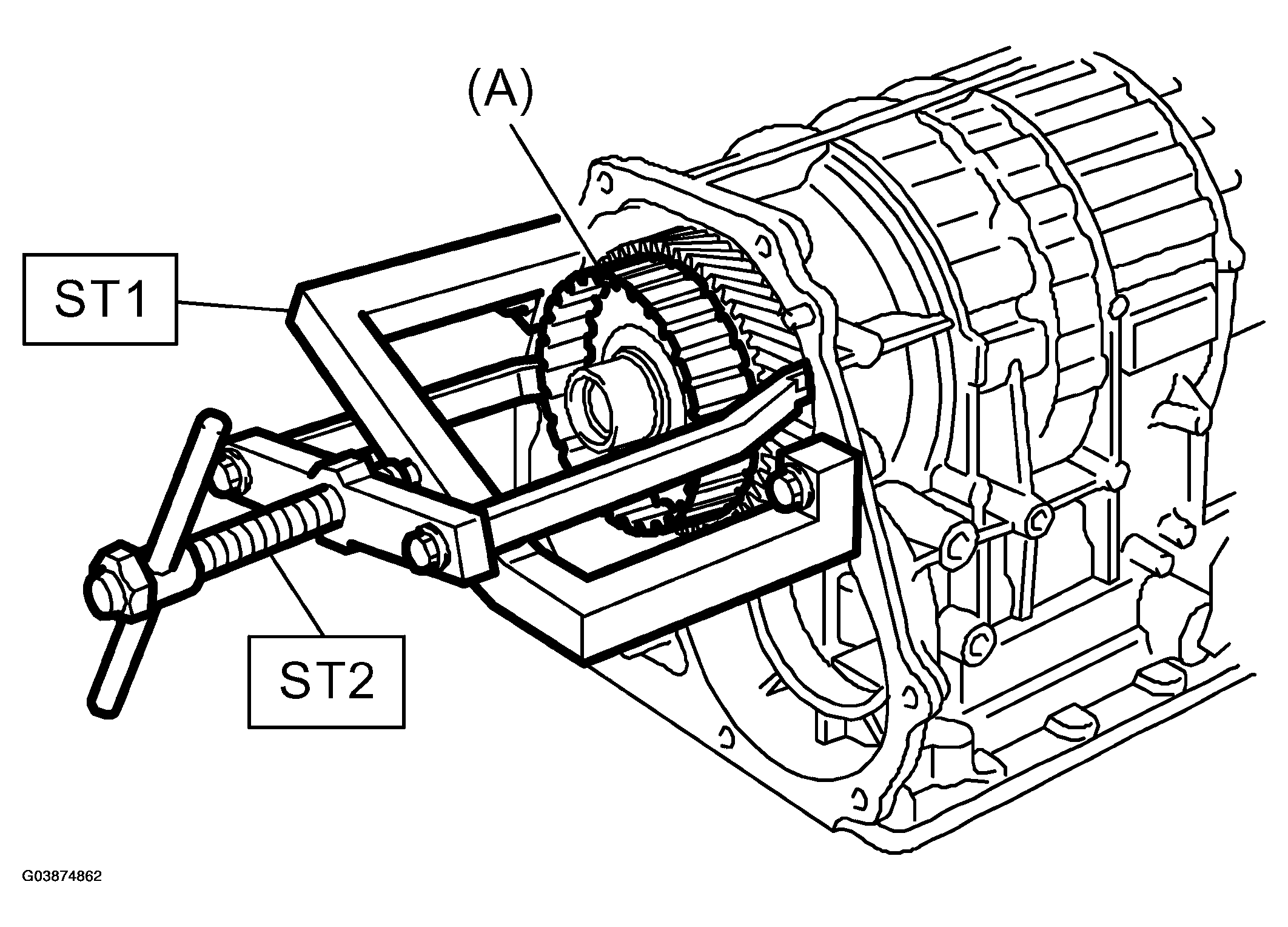

Fig 1: Extracting Reduction Drive Gear

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Reduction drive gear
