Torque Converter Clutch Assembly: Removal

Remove the transmission assembly from the vehicle.

Extract the torque converter clutch and oil pump shaft horizontally.

NOTE: Be careful not to scratch the bushing inside the oil pump shaft.

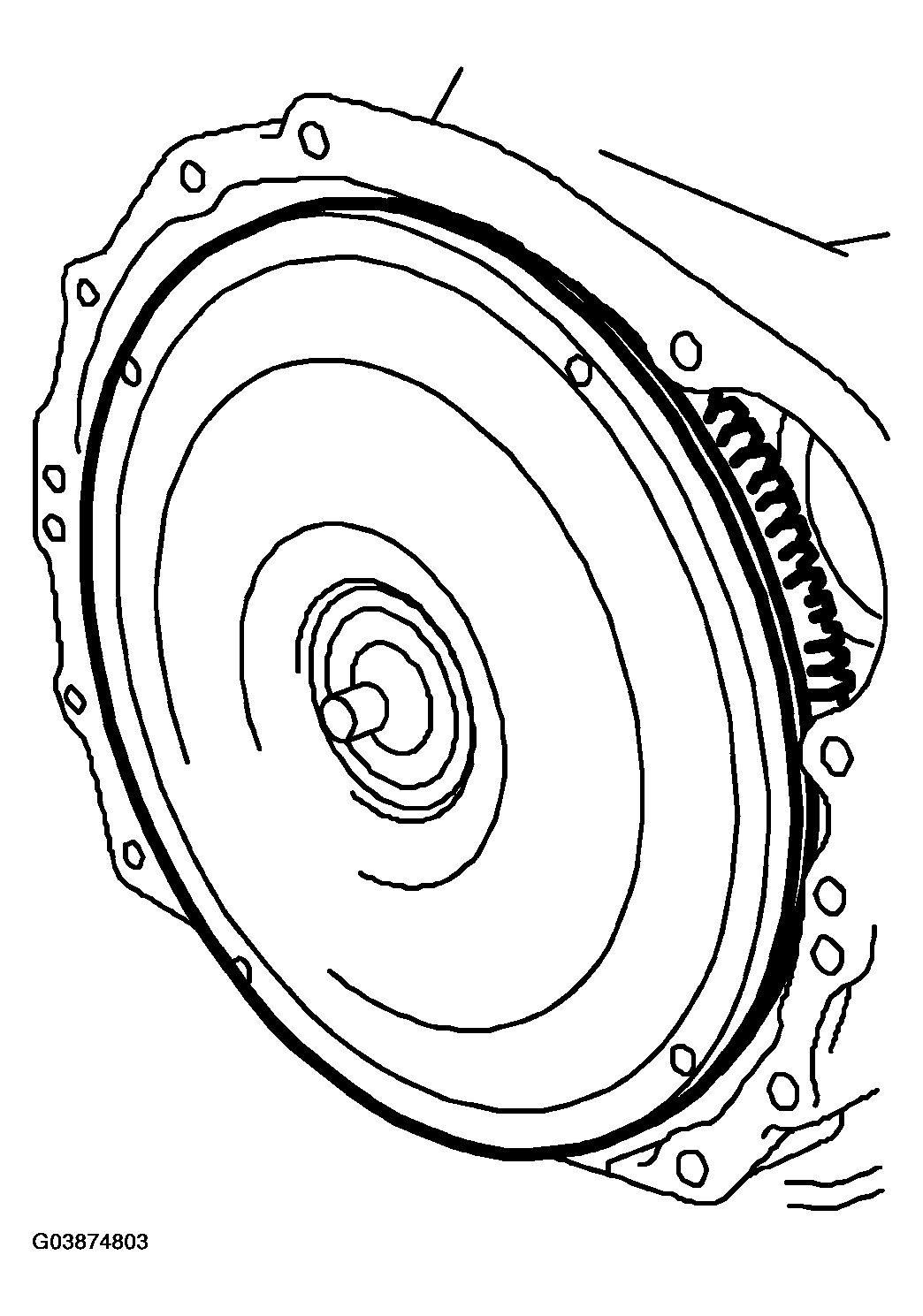

Fig 1: Identifying Torque Converter Clutch Assembly

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the input shaft.

NOTE: When the torque converter clutch assembly is removed, the input shaft will come out.

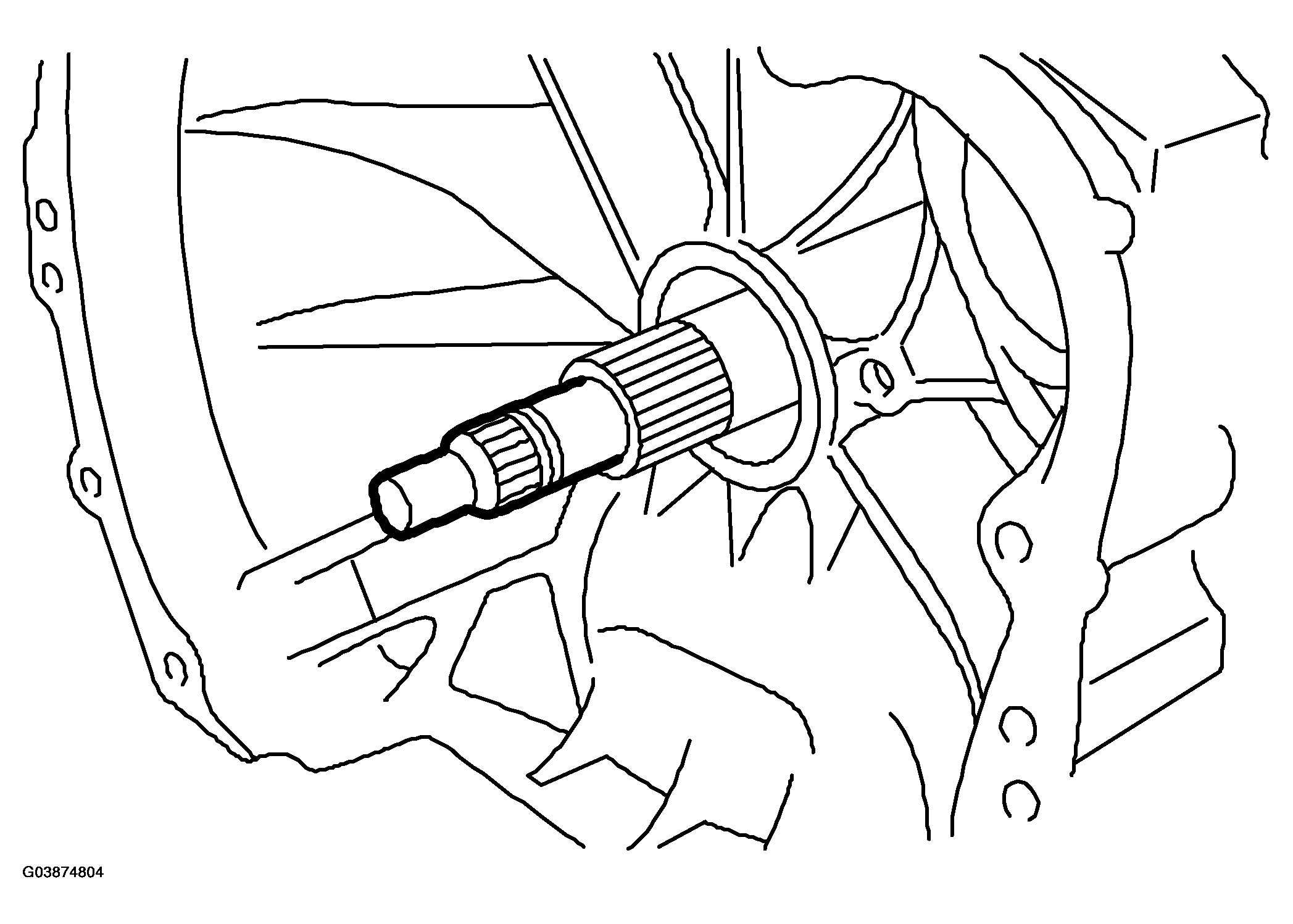

Fig 2: Identifying AT Main Case

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the clip from torque converter clutch.
