Fuel Sub Level Sensor: Adjustment/Replacement: Installation
Install in the reverse order of removal.
NOTE:
Use a new gasket.
- Ensure the sealing portion is free from fuel or foreign particles before installation.

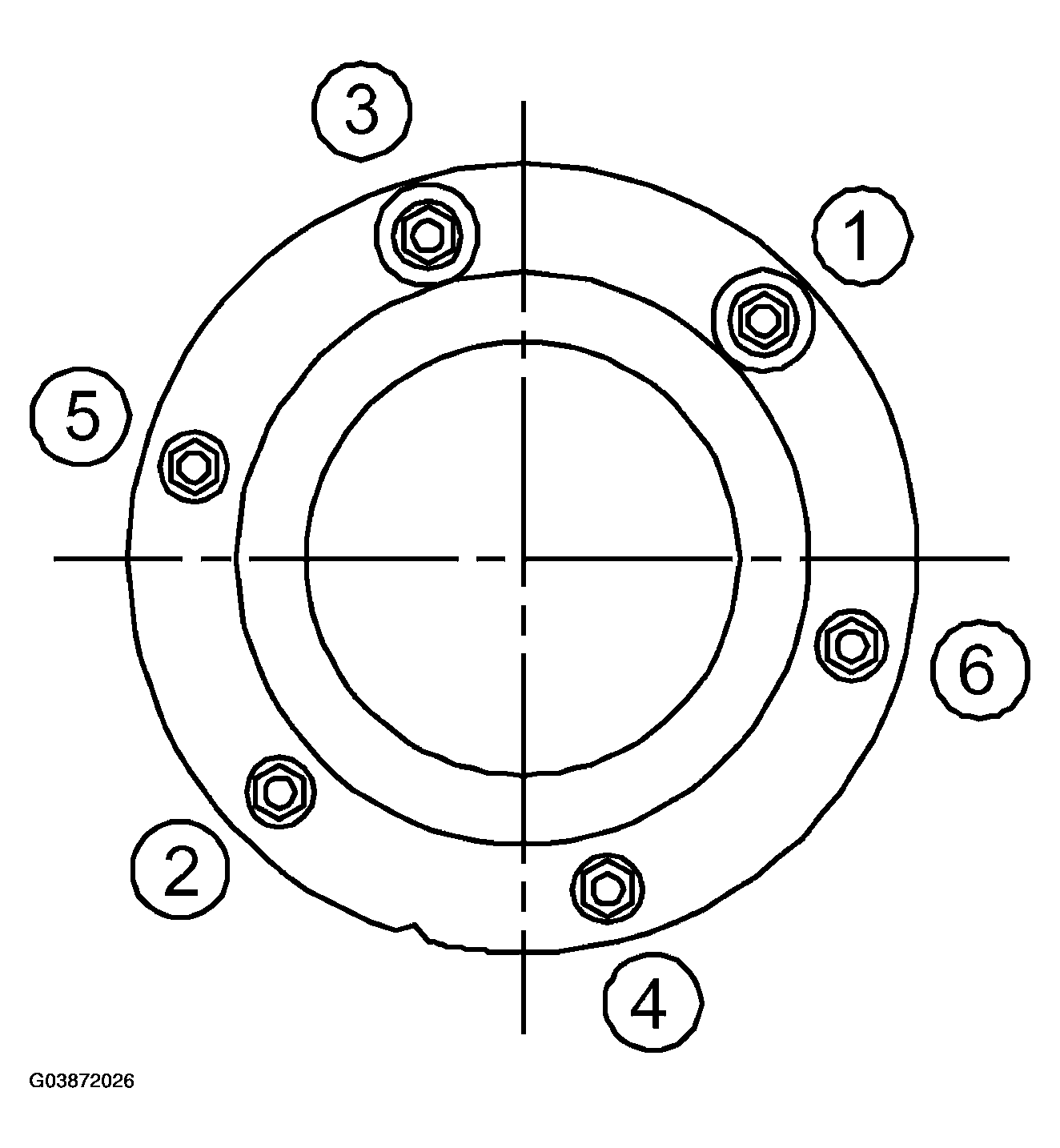

- Tighten the nuts and bolts to specified torque in the order as shown in the figure.
Tightening torque:
4.4 Nm (0.45 kgf-m, 3.3 ft-lb)
